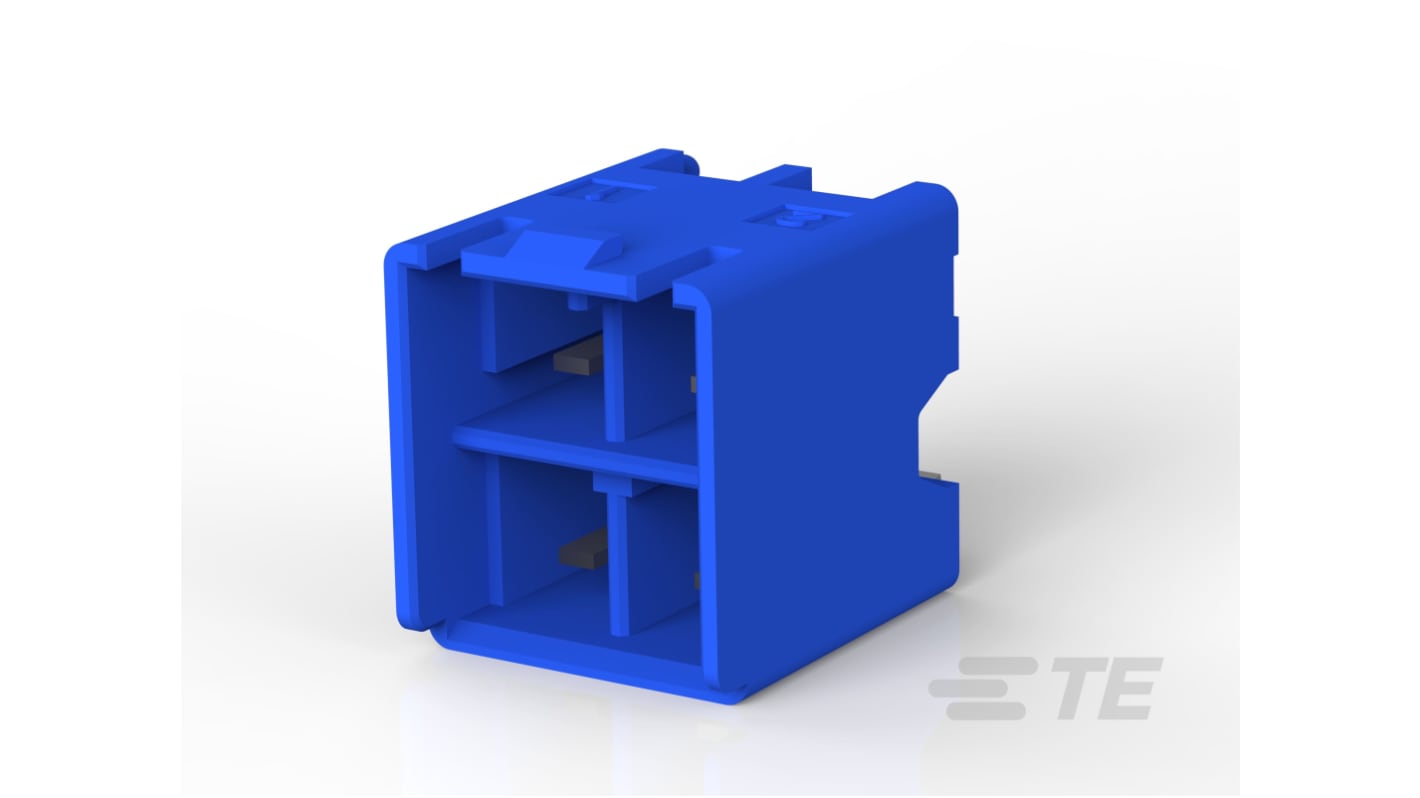

TE Connectivity Power Key 5.0 Series Vertical Board PCB Header, 4 Contact(s), 5 mm Pitch, 2 Row(s), Shrouded

View all PCB Headers

Subtotal (1 bag of 200 units)*

£171.85

(exc. VAT)

£206.22

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 29 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Bag(s)
Per Bag
Per unit*
1 +£171.85£0.859

*price indicative

RS Stock No.:
467-516
Mfr. Part No.:
2-1376386-3
Brand:
TE Connectivity
Find similar products by selecting one or more attributes.
Select all

Brand

TE Connectivity

Product Type

PCB Header

Series

Power Key 5.0

Current

9A

Pitch

5mm

Housing Material

Polyamide 66 Fibreglass

Number of Contacts

4

Number of Rows

2

Orientation

Vertical

Shrouded/Unshrouded

Shrouded

Connector System

Wire-to-Board

Mount Type

Board

Contact Plating

Tin Plated

Contact Material

Copper Alloy

Row Pitch

5mm

Minimum Operating Temperature

-40°C

Termination Type

Solder

Maximum Operating Temperature

105°C

Tail Pin Length

3.5mm

Standards/Approvals

UL 94 V-0

Voltage

30 V

Distrelec Product Id

304-58-300

COO (Country of Origin):
CN
The TE Connectivity PCB Mount Header exemplifies robust design, combining versatility with superior functionality. Engineered for wire-to-board applications, this component accommodates up to four positions with a vertical mount orientation. The fully shrouded design ensures secure connections, while the through-hole solder terminations provide reliable and lasting electrical integrity. With a centreline of 5mm, this connector caters to various PCB configurations, making it an ideal choice for power applications in demanding environments. Built to withstand operational voltages of up to 300 VAC, this header not only meets but exceeds industry standards, ensuring compatibility across multiple applications. The nylon 6/6 GF housing boasts excellent thermal stability and mechanical strength, making it suitable for environments with varying temperature ranges.

Designed for reliability in challenging environments

Offers a fully shrouded header for enhanced protection

Utilises a locking tab for added mating retention

Constructed from durable nylon material for improved heat resistance

Features a rectangular shape for efficient PCB layout

Easy to install with through-hole soldering capability

Sustainable compliance with RoHS and REACH regulations

Compatible with multiple connectors in the Power Key 5.0 series

Provides consistent performance with a wide operating temperature range

Engineered for optimal electrical and mechanical connection quality
