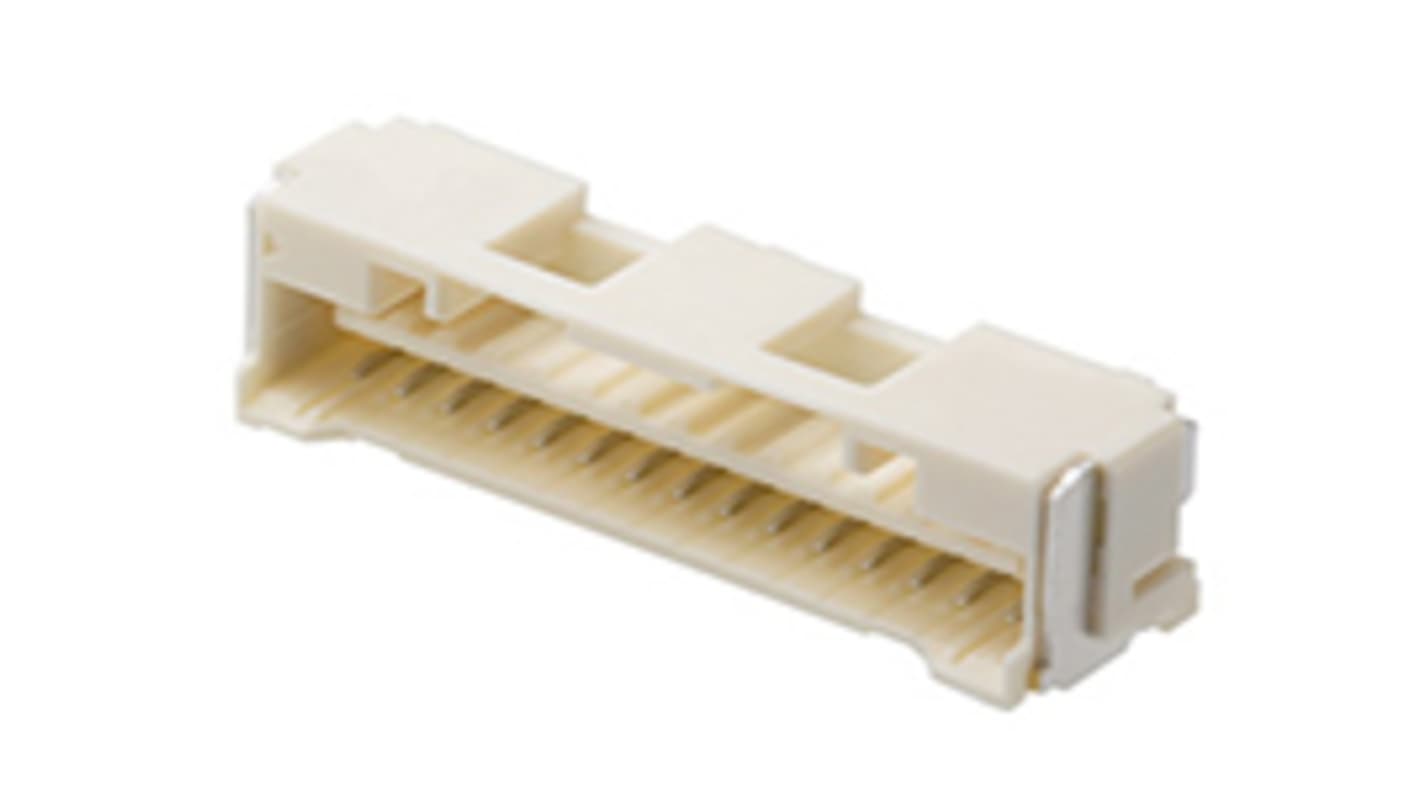

Molex 50317 Series Right Angle Board PCB Socket, 10-Contact, 1 Row, 1.5 mm Pitch Solder
- RS Stock No.:
- 480-916
- Distrelec Article No.:
- 304-62-335
- Mfr. Part No.:
- 503175-1010
- Brand:
- Molex
Subtotal (1 tray of 250 units)*
£154.85
(exc. VAT)
£185.82
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 02 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tray(s) | Per Tray | Per unit* |
|---|---|---|
| 1 + | £154.85 | £0.619 |
*price indicative
- RS Stock No.:
- 480-916
- Distrelec Article No.:
- 304-62-335
- Mfr. Part No.:
- 503175-1010
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Number of Contacts | 10 | |
| Product Type | PCB Socket | |
| Sub Type | PCB Receptacle | |
| Number of Rows | 1 | |
| Pitch | 1.5mm | |
| Current | 2A | |
| Termination Type | Solder | |
| Mount Type | Board | |
| Orientation | Right Angle | |
| Connector System | Wire-to-Board | |
| Voltage | 100 V | |
| Series | 50317 | |
| Minimum Operating Temperature | -40°C | |
| Row Pitch | 1.5mm | |
| Maximum Operating Temperature | 105°C | |
| Contact Plating | Tin | |
| Contact Material | Copper Alloy | |
| Standards/Approvals | UL E29179 | |
| Select all | ||
|---|---|---|
Brand Molex | ||
Number of Contacts 10 | ||
Product Type PCB Socket | ||
Sub Type PCB Receptacle | ||
Number of Rows 1 | ||
Pitch 1.5mm | ||
Current 2A | ||
Termination Type Solder | ||
Mount Type Board | ||
Orientation Right Angle | ||
Connector System Wire-to-Board | ||
Voltage 100 V | ||
Series 50317 | ||
Minimum Operating Temperature -40°C | ||
Row Pitch 1.5mm | ||
Maximum Operating Temperature 105°C | ||
Contact Plating Tin | ||
Contact Material Copper Alloy | ||
Standards/Approvals UL E29179 | ||
- COO (Country of Origin):
- JP
The TE Connectivity 1.50mm Pitch, PCB Receptacle is designed for efficient signal connections in compact spaces. With its right-angle configuration, this single-row receptacle allows for streamlined integration into PCB layouts while optimising board real estate. Crafted with a tin plating finish, it ensures durability against wear and tear, making it reliable for long-term applications. The positive lock feature guarantees a secure connection, preventing accidental disconnections and enhancing performance in various environments. This receptacle also supports a broad temperature range, making it suitable for diverse applications from consumer electronics to industrial devices.
Designed for easy integration into tight spaces with its right-angle configuration
Comes with a reliable positive lock mechanism to prevent accidental disconnections
Features durable tin plating, providing added resistance against corrosion
Supports a wide temperature range for versatility across various applications
Optimised for signal connections in PCB layouts, enhancing design efficiency
Allows for compatibility with specific part numbers for seamless component mating
