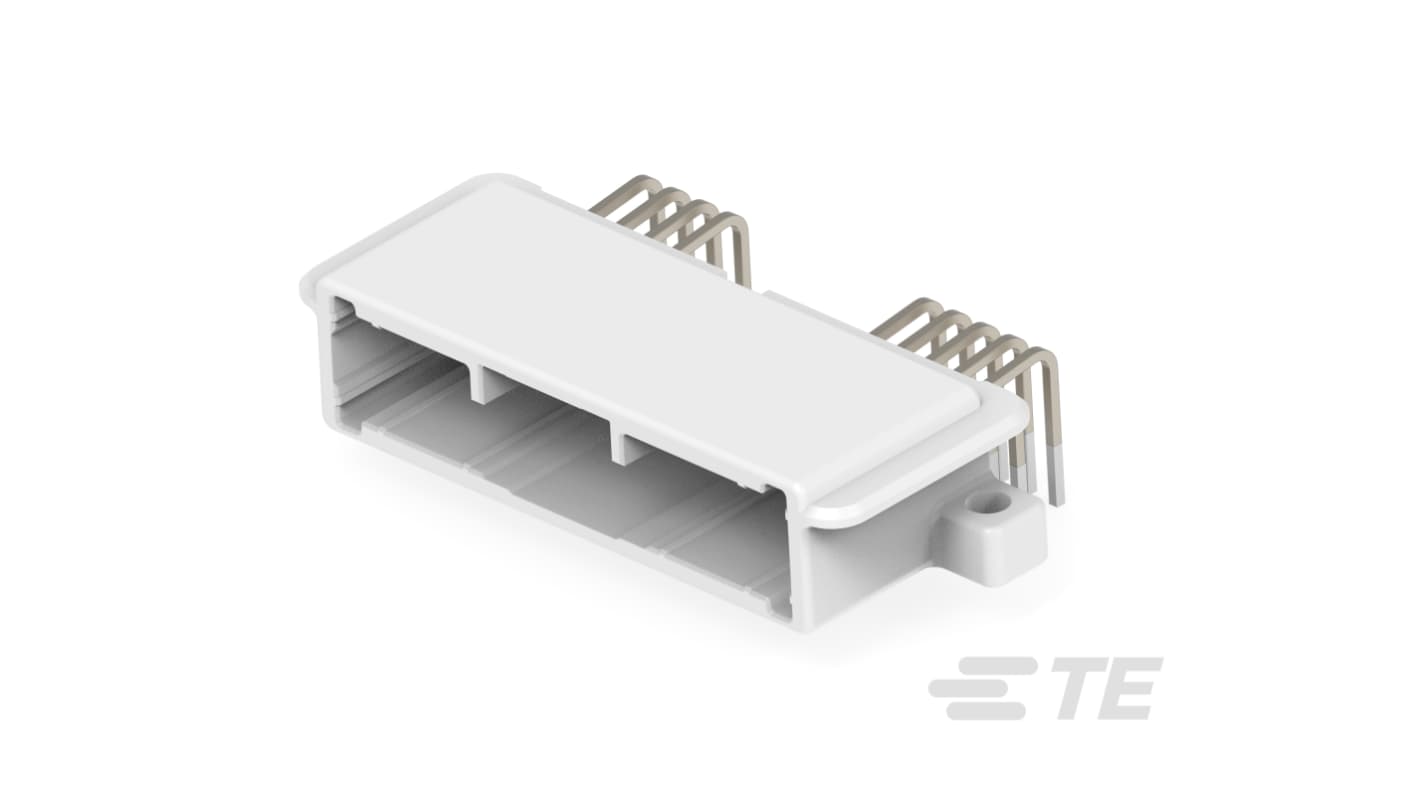

TE Connectivity AMP Series Horizontal Board PCB Header, 24 Contact(s), 2.2 mm Pitch, 2 Row(s), Shrouded

View all PCB Headers

Subtotal (1 tube of 63 units)*

£185.24

(exc. VAT)

£222.29

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 09 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s)
Per Tube
Per unit*
1 +£185.24£2.94

*price indicative

RS Stock No.:
480-767
Mfr. Part No.:
1612048-6
Brand:
TE Connectivity
Find similar products by selecting one or more attributes.
Select all

Brand

TE Connectivity

Product Type

PCB Header

Series

AMP

Pitch

2.2mm

Number of Contacts

24

Number of Rows

2

Orientation

Horizontal

Shrouded/Unshrouded

Shrouded

Mount Type

Board

Connector System

Wire-to-Board

Contact Plating

Tin Plated

Row Pitch

2.2mm

Termination Type

Solder

Minimum Operating Temperature

30°C

Maximum Operating Temperature

105°C

Standards/Approvals

2016, China RoHS 2 MIIT Order No 32, EU ELV 2000/53/EC, EU RoHS 2011/65/EU

Voltage

12 V

Distrelec Product Id

304-64-791

COO (Country of Origin):
JP
The TE Connectivity PCB Mount Header is designed for seamless integration in wire-to-board applications, offering exceptional connectivity with its fully shrouded design. Engineered for a robust connection, it features a horizontal orientation and supports 24 positions across 2 rows, ensuring versatility in various electronic devices. The 2.2 mm centreline pitch enables a compact footprint while maintaining reliable signal integrity. With a durable body colour of natural and tin-plated contact mating areas, this connector system is built to withstand challenging conditions. Its capability to handle 12 VDC operating voltage makes it ideal for diverse use cases, ensuring dependable performance in a wide temperature range of -30°C to 105°C.

Offers a reliable locking interface for secure connections

Incorporates a thorough-hole solder termination for enhanced electrical stability

Designed with mounting alignment to facilitate easy placement on PCBs

Constructed without a panel mount feature, allowing for flexible installation options

Features a compact design with an overall width of 47.4 mm

Optimised for wave soldering capabilities, improving manufacturing efficiency

Complies with EU RoHS directives, ensuring environmentally friendly materials

Provides packaging in tubes for convenient handling and storage
