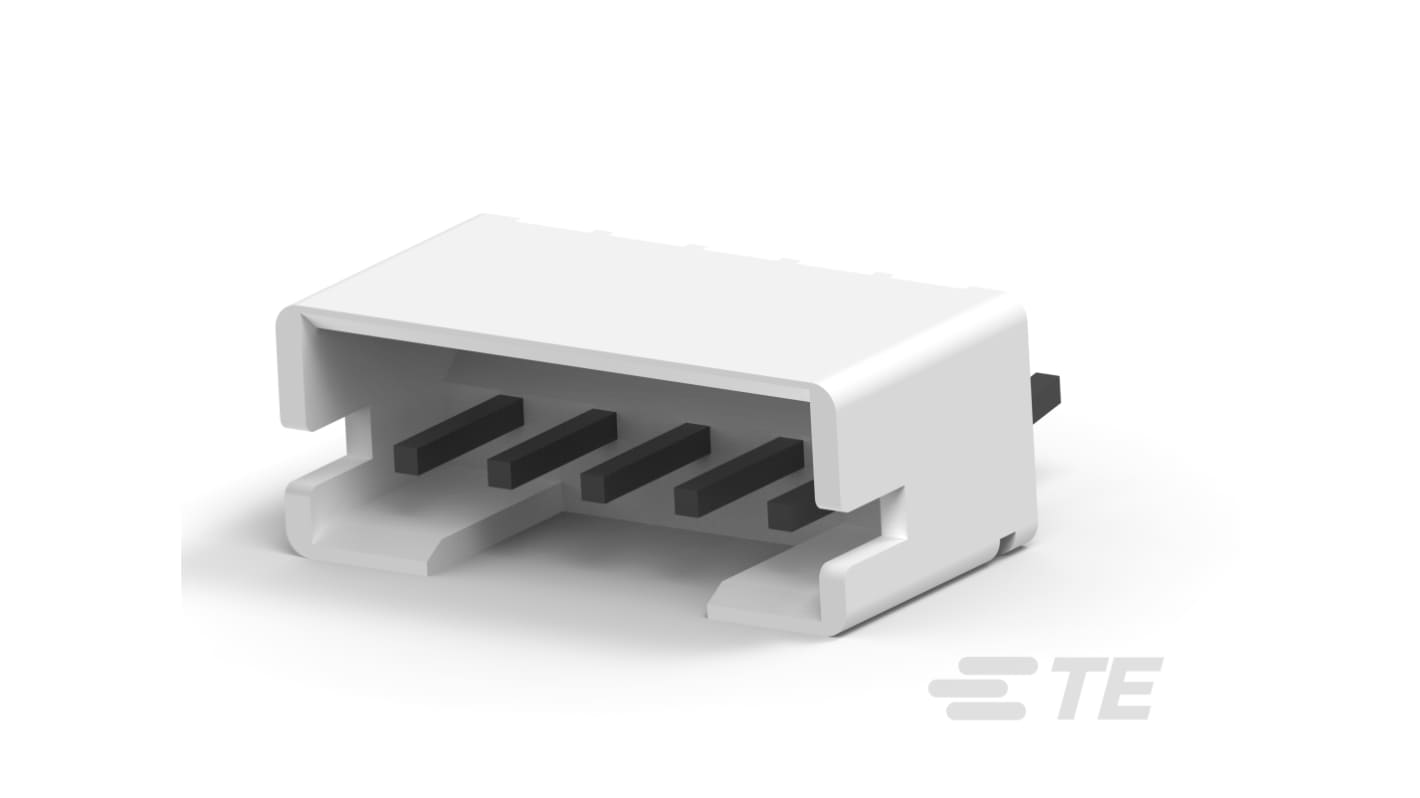

TE Connectivity AMP HPI Series Vertical Board PCB Header, 5 Contact(s), 2 mm Pitch, 1 Row(s), Shrouded
- RS Stock No.:
- 477-304
- Mfr. Part No.:
- 440054-5
- Brand:
- TE Connectivity
Subtotal (1 bag of 1650 units)*
£327.06
(exc. VAT)
£392.47
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 01 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Bag(s) | Per Bag | Per unit* |
|---|---|---|
| 1 + | £327.06 | £0.198 |
*price indicative
- RS Stock No.:
- 477-304
- Mfr. Part No.:
- 440054-5
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Product Type | PCB Header | |
| Series | AMP HPI | |
| Current | 3A | |
| Pitch | 2mm | |
| Housing Material | Polyamide 66 Fibreglass | |
| Number of Contacts | 5 | |
| Number of Rows | 1 | |
| Orientation | Vertical | |
| Shrouded/Unshrouded | Shrouded | |
| Connector System | Wire-to-Board | |
| Mount Type | Board | |
| Contact Material | Brass | |
| Contact Plating | Tin Plated | |
| Termination Type | Solder | |
| Minimum Operating Temperature | -25°C | |
| Row Pitch | 2mm | |
| Maximum Operating Temperature | 85°C | |
| Tail Pin Length | 3.4mm | |
| Contact Gender | Male | |
| Standards/Approvals | No | |
| Mating Pin Length | 3.35mm | |
| Voltage | 250 V | |
| Distrelec Product Id | 304-50-777 | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Product Type PCB Header | ||
Series AMP HPI | ||
Current 3A | ||
Pitch 2mm | ||
Housing Material Polyamide 66 Fibreglass | ||
Number of Contacts 5 | ||
Number of Rows 1 | ||
Orientation Vertical | ||
Shrouded/Unshrouded Shrouded | ||
Connector System Wire-to-Board | ||
Mount Type Board | ||
Contact Material Brass | ||
Contact Plating Tin Plated | ||
Termination Type Solder | ||
Minimum Operating Temperature -25°C | ||
Row Pitch 2mm | ||
Maximum Operating Temperature 85°C | ||
Tail Pin Length 3.4mm | ||
Contact Gender Male | ||
Standards/Approvals No | ||
Mating Pin Length 3.35mm | ||
Voltage 250 V | ||
Distrelec Product Id 304-50-777 | ||
- COO (Country of Origin):
- CN
The TE Connectivity PCB Mount Header exemplifies precision engineering, featuring a sleek vertical design ideal for wire-to-board applications. With a natural colour that complements a variety of circuit board aesthetics, this 5-position connector is equipped with a robust, partially shrouded construction ensuring durability and reliable signal transmission. Designed for effortless integration, it accommodates a 2 mm centreline, ensuring compatibility with industry standards. Best suited for demanding applications where space is limited, this connector excels in operational settings with temperatures ranging from -25 to 85 °C. With easy through-hole solder termination, it integrates seamlessly into your circuit design, delivering dependability where it matters most.
Utilises a nylon 66 GF housing material for enhanced durability
Features square contacts for superior mating integrity
Employs kinked tines for secure PCB mount retention
Designed with polarised mating alignment to prevent mismatching
Capable of handling a maximum current of 3 A for reliable functionality
Offers wave solder capability up to 240°C for versatile soldering options
Compliant with stringent RoHS directives for environmentally safe use
Provides packaging in convenient quantities, streamlining assembly processes
