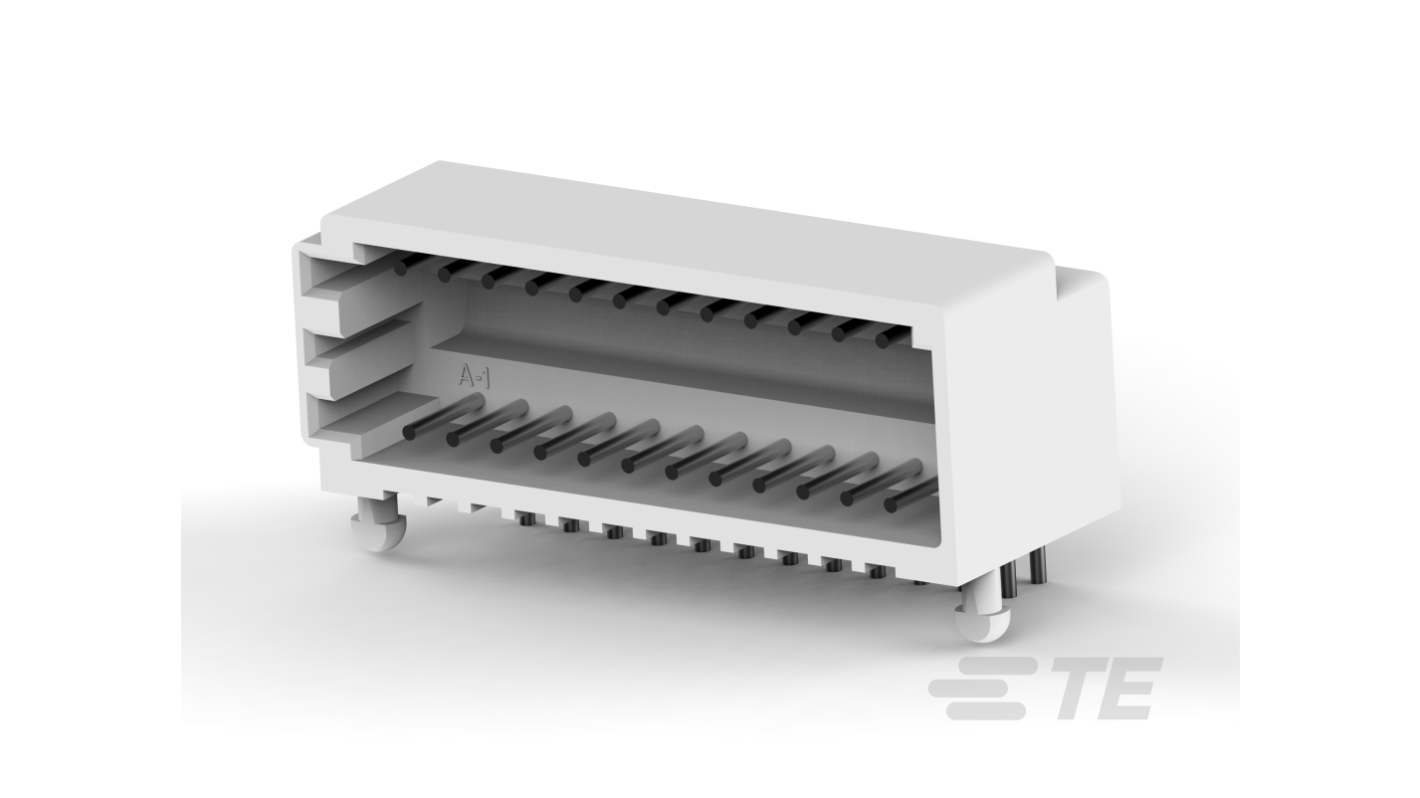

TE Connectivity 3-1775 Series Right Angle Board PCB Header, 24 Contact(s), 2 mm Pitch, 2 Row(s), Shrouded
- RS Stock No.:
- 476-941
- Mfr. Part No.:
- 2-292138-4
- Brand:
- TE Connectivity
Subtotal (1 tray of 150 units)*
£282.46
(exc. VAT)
£338.95
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 09 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tray(s) | Per Tray | Per unit* |
|---|---|---|
| 1 + | £282.46 | £1.883 |
*price indicative
- RS Stock No.:
- 476-941
- Mfr. Part No.:
- 2-292138-4
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Product Type | PCB Header | |
| Series | 3-1775 | |
| Pitch | 2mm | |
| Current | 4A | |
| Housing Material | Polyamide 66 | |
| Number of Contacts | 24 | |
| Number of Rows | 2 | |
| Orientation | Right Angle | |
| Shrouded/Unshrouded | Shrouded | |
| Connector System | Wire-to-Board | |
| Mount Type | Board | |
| Contact Material | Brass | |
| Contact Plating | Tin Plated | |
| Row Pitch | 2mm | |
| Minimum Operating Temperature | 30°C | |
| Termination Type | Solder | |
| Tail Pin Length | 3.2mm | |
| Maximum Operating Temperature | 105°C | |
| Mating Pin Length | 4.7mm | |
| Standards/Approvals | RoHS | |
| Voltage | 125 V | |
| Distrelec Product Id | 304-53-804 | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Product Type PCB Header | ||
Series 3-1775 | ||
Pitch 2mm | ||
Current 4A | ||
Housing Material Polyamide 66 | ||
Number of Contacts 24 | ||
Number of Rows 2 | ||
Orientation Right Angle | ||
Shrouded/Unshrouded Shrouded | ||
Connector System Wire-to-Board | ||
Mount Type Board | ||
Contact Material Brass | ||
Contact Plating Tin Plated | ||
Row Pitch 2mm | ||
Minimum Operating Temperature 30°C | ||
Termination Type Solder | ||
Tail Pin Length 3.2mm | ||
Maximum Operating Temperature 105°C | ||
Mating Pin Length 4.7mm | ||
Standards/Approvals RoHS | ||
Voltage 125 V | ||
Distrelec Product Id 304-53-804 | ||
- COO (Country of Origin):
- CN
The TE Connectivity PCB Mount Header is designed for efficient wire-to-board connections, boasting a right angle configuration that maximises use of space. With 24 positions and a 2 mm centreline, it provides reliable and secure electrical connections for various applications. The fully shrouded design ensures robust protection for the terminals, while the tin (Sn) plating enhances resistance to corrosion and wear. Ideal for both power and signal applications, this connector facilitates simple integration into printed circuit boards through its through-hole solder termination method. Its compact dimensions and natural nylon housing make it versatile for various environments, further solidifying its role in essential electrical setups.
Optimised for tight layouts with a right angle orientation
Provides excellent protection for sensitive terminals
Facilitates straightforward PCB integration with through hole soldering
Natural nylon housing offers durability in diverse applications
Designed to support both power and signal circuits effectively
Allows for uncomplicated mechanical assembly with no mating retention
Compatible with industry standards ensuring adaptability across various platforms
