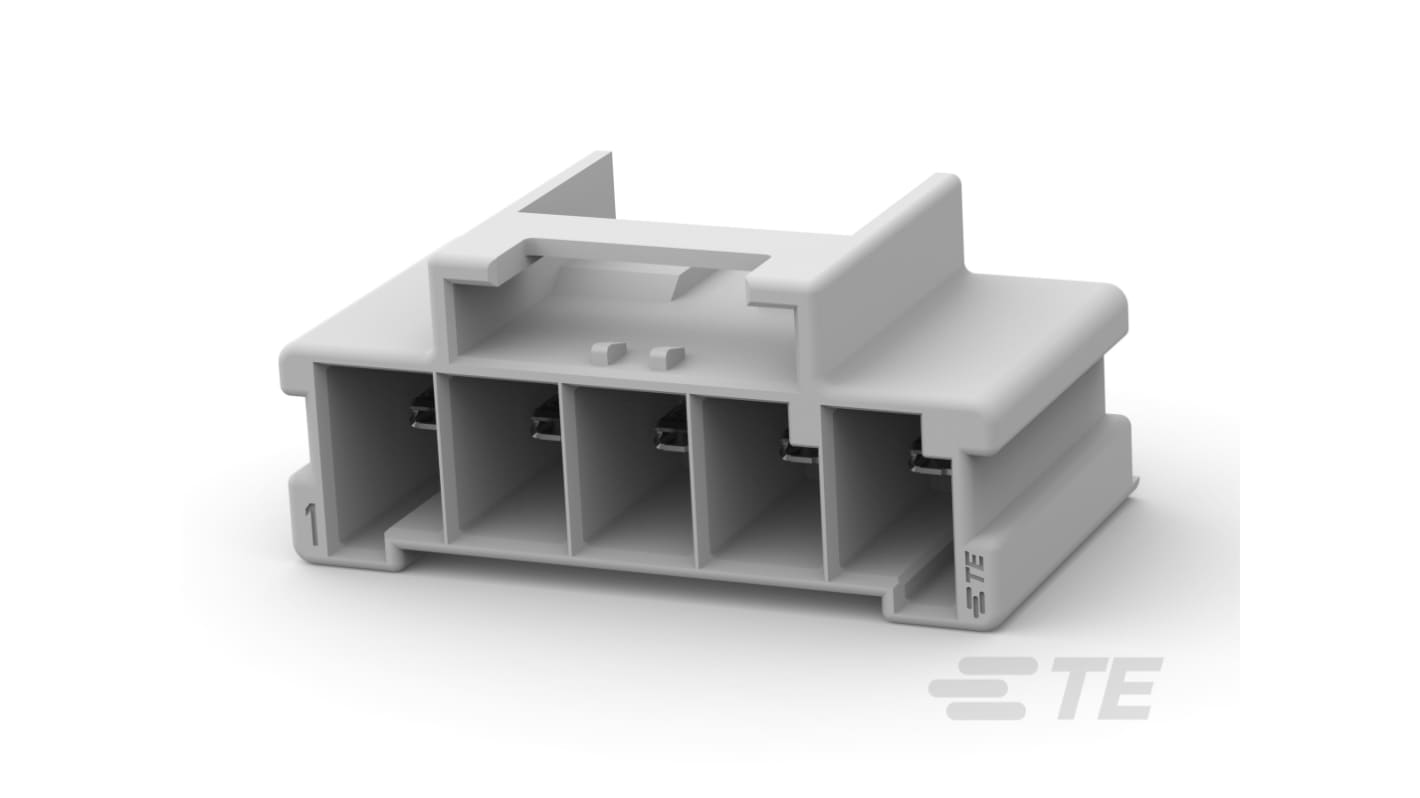

TE Connectivity Power Triple Lock Series Vertical Board PCB Header, 5 Contact(s), 6 mm Pitch, 1 Row(s), Shrouded
- RS Stock No.:
- 468-115
- Mfr. Part No.:
- 1-1969688-5
- Brand:
- TE Connectivity
Subtotal (1 pack of 152 units)*
£215.92
(exc. VAT)
£259.10
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 12 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £215.92 | £1.421 |
*price indicative
- RS Stock No.:
- 468-115
- Mfr. Part No.:
- 1-1969688-5
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Series | Power Triple Lock | |
| Product Type | PCB Header | |
| Pitch | 6mm | |
| Current | 17A | |
| Housing Material | Nylon | |
| Number of Contacts | 5 | |
| Number of Rows | 1 | |
| Orientation | Vertical | |
| Shrouded/Unshrouded | Shrouded | |
| Connector System | Wire-to-Board | |
| Mount Type | Board | |
| Contact Material | Copper Alloy | |
| Contact Plating | Pre Tin | |
| Row Pitch | 6mm | |
| Minimum Operating Temperature | -55°C | |
| Termination Type | Solder | |
| Maximum Operating Temperature | 150°C | |
| Tail Pin Length | 3.33mm | |
| Standards/Approvals | UL, VDE | |
| Voltage | 600 V | |
| Distrelec Product Id | 304-48-325 | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Series Power Triple Lock | ||
Product Type PCB Header | ||
Pitch 6mm | ||
Current 17A | ||
Housing Material Nylon | ||
Number of Contacts 5 | ||
Number of Rows 1 | ||
Orientation Vertical | ||
Shrouded/Unshrouded Shrouded | ||
Connector System Wire-to-Board | ||
Mount Type Board | ||
Contact Material Copper Alloy | ||
Contact Plating Pre Tin | ||
Row Pitch 6mm | ||
Minimum Operating Temperature -55°C | ||
Termination Type Solder | ||
Maximum Operating Temperature 150°C | ||
Tail Pin Length 3.33mm | ||
Standards/Approvals UL, VDE | ||
Voltage 600 V | ||
Distrelec Product Id 304-48-325 | ||
- COO (Country of Origin):
- CN
The TE Connectivity PCB Mount Header is designed for vertical applications in wire-to-board connections, featuring a robust 5-position configuration. Engineered with precision, it ensures reliable electrical performance in demanding environments, making it ideal for power applications. The fully shrouded design not only enhances safety but also optimizes space efficiency on printed circuit boards. Its durable construction allows for operation in extreme temperatures, ensuring consistent performance in diverse conditions. With an emphasis on efficiency and reliability, this connector is a vital component for modern electronic assemblies, capable of withstanding challenging operational demands while ensuring a seamless connection. Explore a solution that combines innovative design with high-quality material, tailored to meet the needs of contemporary electrical systems.
Compact design maximises space on PCBs
Engineered for 600 VDC operating voltage compatibility
Constructed with a light grey nylon housing for enhanced reliability
Features a keyed polarised mating alignment to prevent connection errors
Assembly includes a latch retainer for secure mating retention
Halogen free materials contribute to environmental compliance
