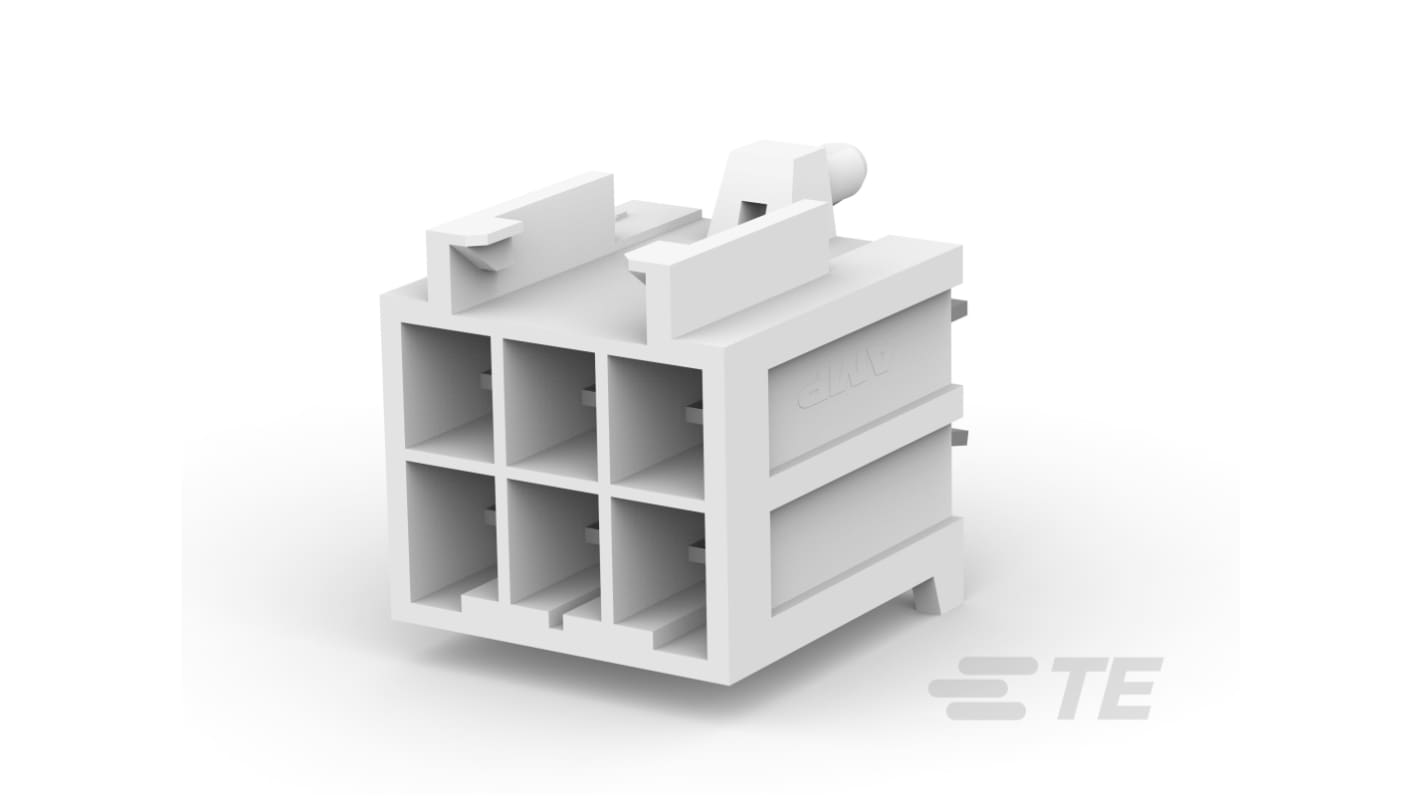

TE Connectivity Power Double Lock Series Vertical Board Mount PCB Header, 6 Contact(s), 3.96mm Pitch, 2 Row(s), Shrouded
- RS Stock No.:
- 471-307
- Mfr. Part No.:
- 179841-1
- Brand:
- TE Connectivity
Subtotal (1 box of 150 units)*
£175.92
(exc. VAT)
£211.10
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 01 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es) | Per Box | Per unit* |
---|---|---|
1 + | £175.92 | £1.173 |
*price indicative
- RS Stock No.:
- 471-307
- Mfr. Part No.:
- 179841-1
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | TE Connectivity | |
Series | Power Double Lock | |
Pitch | 3.96mm | |
Number of Contacts | 6 | |
Number of Rows | 2 | |
Body Orientation | Vertical | |
Shrouded/Unshrouded | Shrouded | |
Mounting Type | Board Mount | |
Select all | ||
---|---|---|
Brand TE Connectivity | ||
Series Power Double Lock | ||
Pitch 3.96mm | ||
Number of Contacts 6 | ||
Number of Rows 2 | ||
Body Orientation Vertical | ||
Shrouded/Unshrouded Shrouded | ||
Mounting Type Board Mount | ||
- COO (Country of Origin):
- KR
The TE Connectivity PCB mount header offers a robust and reliable solution for wire-to-board connectivity, featuring a fully shrouded design that ensures secure connections. With a vertical orientation and a 3.96 mm centreline, this connector is tailored for applications needing a compact yet powerful connection for up to six positions. The durable housing material and nickel underplating provide long-lasting performance in various environmental conditions, while the ability to handle an operating voltage of 50 VAC makes it suitable for power applications. Ideal for integration into PCBs, this component combines ease of use with exceptional performance, ensuring seamless connectivity within electrical systems.
Fully shrouded design enhances connection stability and prevents dust accumulation
Features a locking latch for reliable mating retention
Utilises a copper alloy for the contact base, promoting excellent conductivity
Optimised for high-temperature applications with an operating range of -30 to 105 °C
Matte finish plating improves usability and visual inspection
PCB mount retention is achieved through a kinked design, enhancing mechanical stability
Polarisation aligns easily with mating connectors for straightforward assembly
Wave solder capable, allowing for efficient manufacturing processes
Designed to comply with rigorous industry standards for safety and reliability
Features a locking latch for reliable mating retention
Utilises a copper alloy for the contact base, promoting excellent conductivity
Optimised for high-temperature applications with an operating range of -30 to 105 °C
Matte finish plating improves usability and visual inspection
PCB mount retention is achieved through a kinked design, enhancing mechanical stability
Polarisation aligns easily with mating connectors for straightforward assembly
Wave solder capable, allowing for efficient manufacturing processes
Designed to comply with rigorous industry standards for safety and reliability
