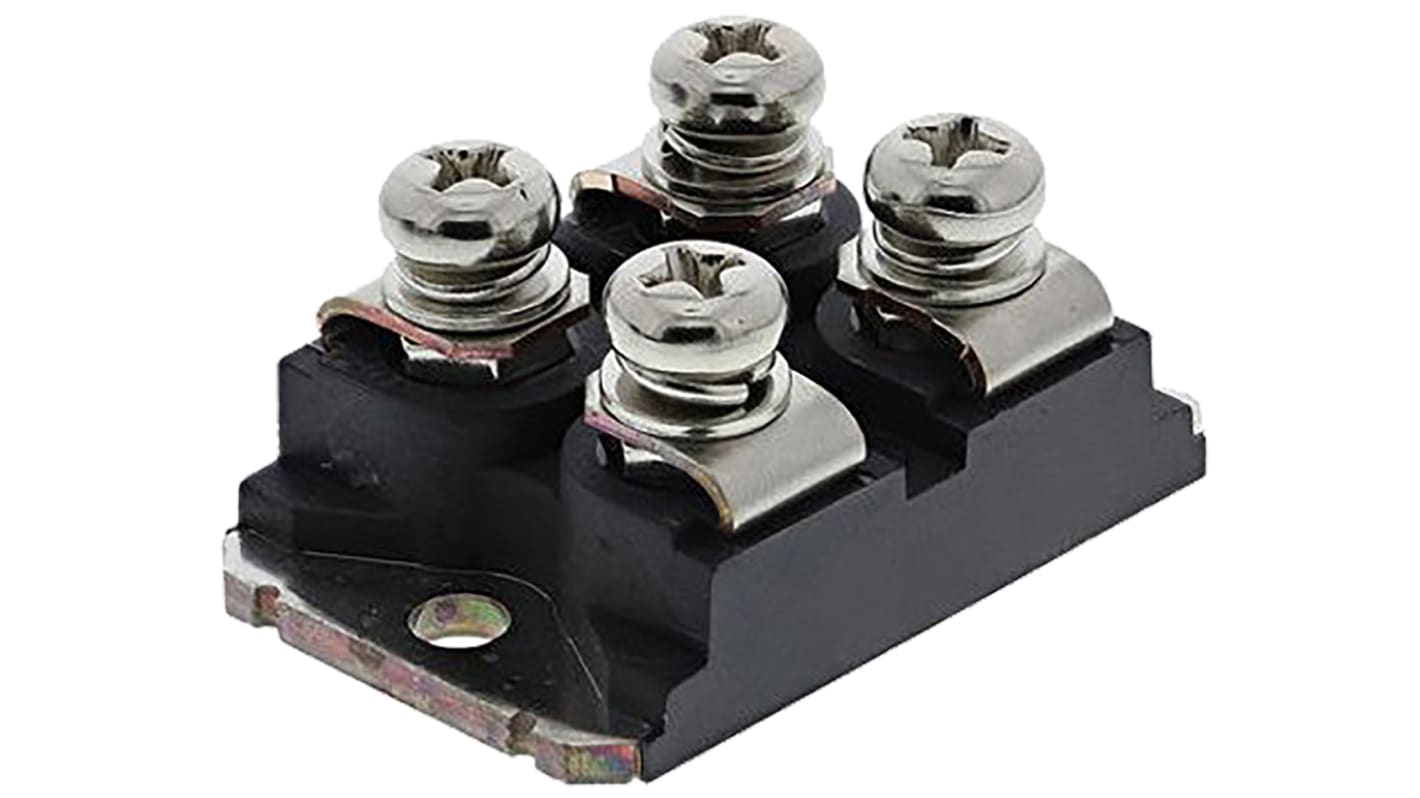

N-Channel MOSFET, 310 A, 150 V, 4-Pin SOT-227 IXYS IXFN360N15T2
- RS Stock No.:
- 168-4578
- Mfr. Part No.:
- IXFN360N15T2
- Brand:
- IXYS
110 In stock - FREE next working day delivery available
Added
Price Each (In a Tube of 10)
£37.583
(exc. VAT)
£45.10
(inc. VAT)
| Units | Per unit | Per Tube* |
| 10 + | £37.583 | £375.83 |
| *price indicative | ||
- RS Stock No.:
- 168-4578
- Mfr. Part No.:
- IXFN360N15T2
- Brand:
- IXYS
Legislation and Compliance
- COO (Country of Origin):
- PH
Product Details
N-channel Power MOSFET, IXYS HiperFET™ GigaMOS™ Series
MOSFET Transistors, IXYS
A wide range of advanced discrete Power MOSFET devices from IXYS
Specifications
Attribute | Value |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 310 A |
| Maximum Drain Source Voltage | 150 V |
| Package Type | SOT-227 |
| Series | GigaMOS TrenchT2 HiperFET |
| Mounting Type | Screw Mount |
| Pin Count | 4 |
| Maximum Drain Source Resistance | 4 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 5V |
| Minimum Gate Threshold Voltage | 2.5V |
| Maximum Power Dissipation | 1.07 kW |
| Maximum Gate Source Voltage | -20 V, +20 V |
| Number of Elements per Chip | 1 |
| Length | 38.23mm |
| Typical Gate Charge @ Vgs | 715 nC @ 10 V |
| Maximum Operating Temperature | +175 °C |
| Width | 25.07mm |
| Forward Diode Voltage | 1.2V |
| Height | 9.6mm |
| Minimum Operating Temperature | -55 °C |
