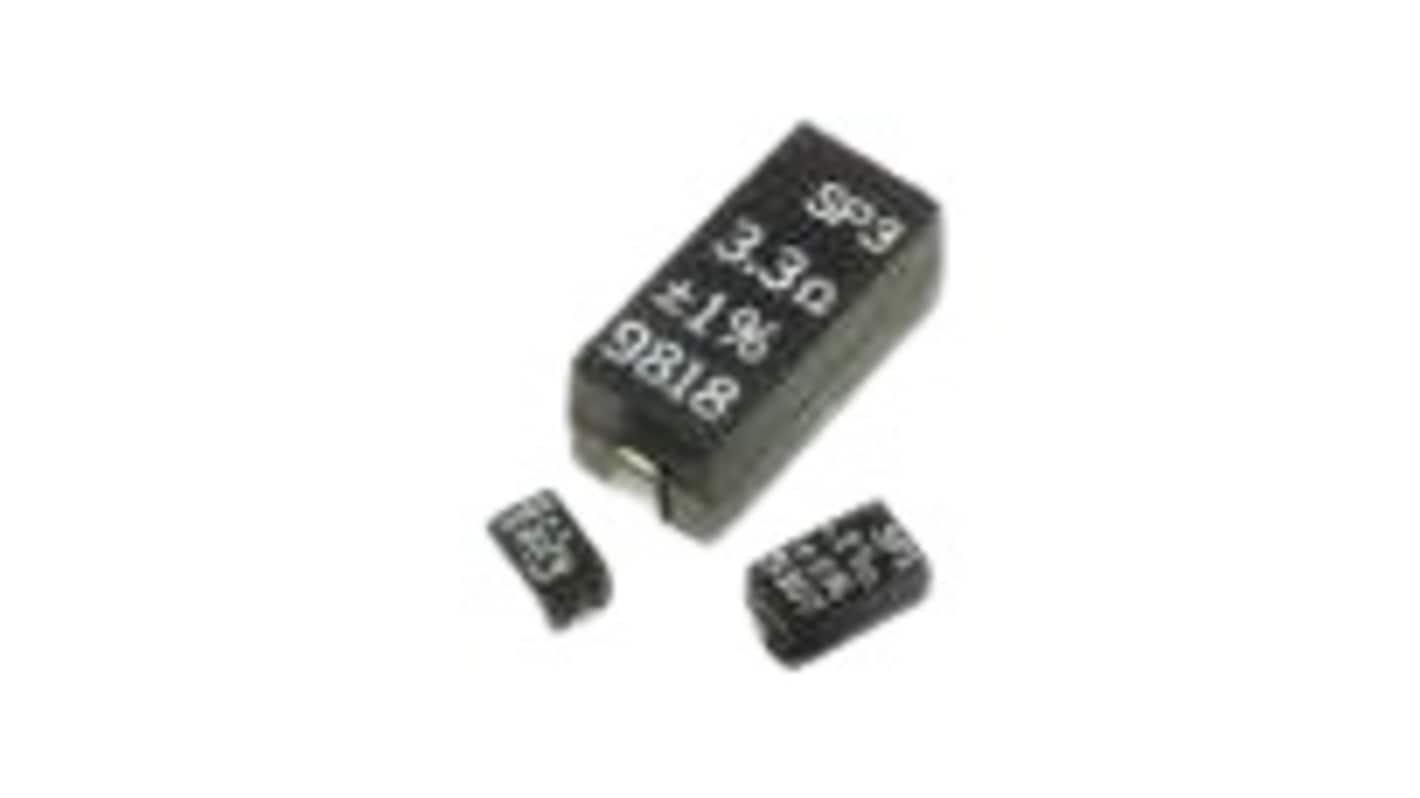

TE Connectivity CGS SP 1 Ω, Tape & Reel Wirewound Surface Mount Resistor 1 % Surface 2.5 W - 1624300-1
- RS Stock No.:
- 468-761
- Distrelec Article No.:
- 304-60-201
- Mfr. Part No.:
- 1624300-1
- Brand:
- TE Connectivity
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 468-761
- Distrelec Article No.:
- 304-60-201
- Mfr. Part No.:
- 1624300-1
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Resistance | 1Ω | |
| Product Type | Surface Mount Resistor | |
| Technology | Wirewound | |
| Resistor Type | Power | |
| Package/Case | Tape & Reel | |
| Tolerance | 1 % | |
| Packaging | Tape & Reel | |
| Power Rating | 2.5W | |
| Mount Type | Surface | |
| Temperature Coefficient | ±20 ppm/°C | |
| Automotive Standard | No | |
| Series | CGS SP | |
| Termination Style | Solder | |
| Length | 11.6mm | |
| Width | 5.84mm | |
| Standards/Approvals | 2016 Compliant, China RoHS 2 Directive MIIT Order No 32, EU ELV Directive 2000/53/EC Compliant, EU RoHS Directive 2011/65/EU Compliant | |
| Height | 5.33mm | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Resistance 1Ω | ||
Product Type Surface Mount Resistor | ||
Technology Wirewound | ||
Resistor Type Power | ||
Package/Case Tape & Reel | ||
Tolerance 1 % | ||
Packaging Tape & Reel | ||
Power Rating 2.5W | ||
Mount Type Surface | ||
Temperature Coefficient ±20 ppm/°C | ||
Automotive Standard No | ||
Series CGS SP | ||
Termination Style Solder | ||
Length 11.6mm | ||
Width 5.84mm | ||
Standards/Approvals 2016 Compliant, China RoHS 2 Directive MIIT Order No 32, EU ELV Directive 2000/53/EC Compliant, EU RoHS Directive 2011/65/EU Compliant | ||
Height 5.33mm | ||
- COO (Country of Origin):
- US
The TE Connectivity Surface Mount Power Resistor is a high-performance component designed for reliability in demanding applications. This wire-wound resistor boasts a nominal resistance of 1 ohm and is engineered to handle power ratings up to 2.5 W. With its compact dimensions and surface mount design, it seamlessly integrates into various electronic circuits, providing stable operation across different temperature conditions. The component is designed to meet stringent compliance standards, ensuring it is suitable for innovative technologies. Additionally, this resistor exhibits a low temperature coefficient, which enhances its stability over temperature variations, making it a perfect choice for precise electronic applications.
Compact size facilitates easy integration into space-constrained designs
Wire-wound construction ensures consistent performance and reliability
Designed for surface mounting, allowing for automated placement on circuit boards
Meets stringent EU RoHS and REACH compliance regulations, ensuring environmental responsibility
Low halogen content enhances safety and performance in various applications
Optimised for reflow soldering, suitable for modern manufacturing techniques
Available in a range of compatible parts to support various circuit configurations
