TE Connectivity Solistrand Uninsulated Spade Connector, M3.5 Tab Size 22 AWG to 16 AWG
- RS Stock No.:
- 470-918
- Distrelec Article No.:
- 304-47-254
- Mfr. Part No.:
- 323127
- Brand:
- TE Connectivity
Subtotal (1 pack of 1000 units)*
£173.44
(exc. VAT)
£208.13
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 04 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £173.44 | £0.173 |
*price indicative
- RS Stock No.:
- 470-918
- Distrelec Article No.:
- 304-47-254
- Mfr. Part No.:
- 323127
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Product Type | Spade Connector | |
| Tab Thickness | 0.79mm | |
| Tab Size | M3.5 | |
| Insulation | Uninsulated | |
| Maximum Wire Size AWG | 16AWG | |
| Minimum Wire Size AWG | 22AWG | |
| Contact Material | Copper | |
| Contact Plating | Tin | |
| Orientation | Straight | |
| Standards/Approvals | EU RoHS 2011/65/EU, EU ELV 2000/53/EC, EU REACH (EC) No. 1907/2006, China RoHS 2 MIIT Order No 32, 2016 No Restricted Materials Above Threshold | |
| Overall Length | 15.82mm | |
| Series | Solistrand | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Product Type Spade Connector | ||
Tab Thickness 0.79mm | ||
Tab Size M3.5 | ||
Insulation Uninsulated | ||
Maximum Wire Size AWG 16AWG | ||
Minimum Wire Size AWG 22AWG | ||
Contact Material Copper | ||
Contact Plating Tin | ||
Orientation Straight | ||
Standards/Approvals EU RoHS 2011/65/EU, EU ELV 2000/53/EC, EU REACH (EC) No. 1907/2006, China RoHS 2 MIIT Order No 32, 2016 No Restricted Materials Above Threshold | ||
Overall Length 15.82mm | ||
Series Solistrand | ||

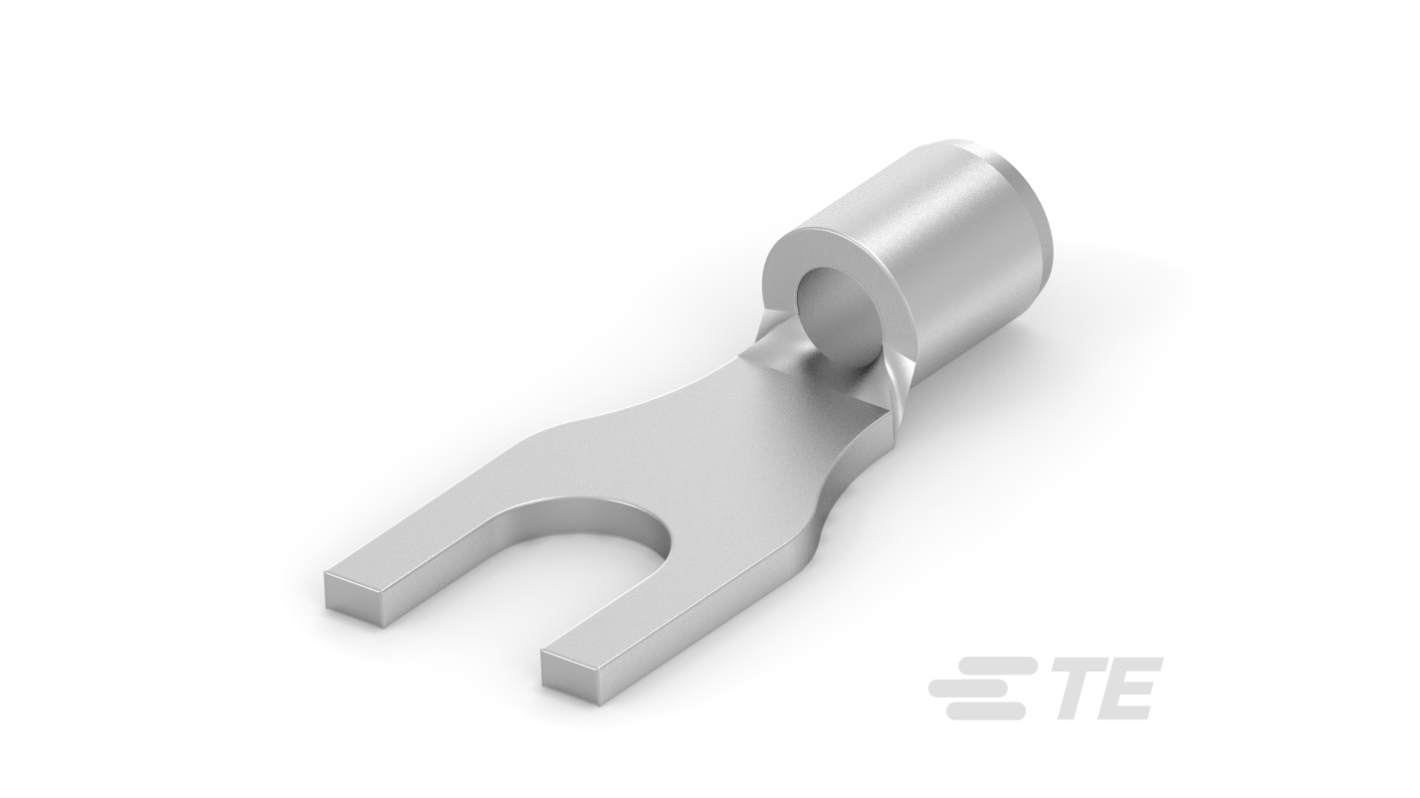

The TE Connectivity spade tongue terminal is an exceptional connectivity solution designed for reliable performance in applications requiring dependable electrical connections. Constructed for wire sizes ranging from 22 to 16 AWG, this terminal accommodates a variety of stud sizes, specifically #6 and M3.5. Its closed barrel design ensures enhanced contact security, while tin plating offers superior conductivity and durability. This uninsulated terminal simplifies installation, making it an ideal choice for both professional and DIY projects. The 3.68 mm stud diameter allows for seamless integration in diverse settings, ensuring your systems operate efficiently.
Constructed with a closed barrel for optimal contact integrity
Tin plating enhances conductivity and corrosion resistance
Designed to support wide wire sizes, ensuring versatility
Features a compact design suitable for tight spaces
