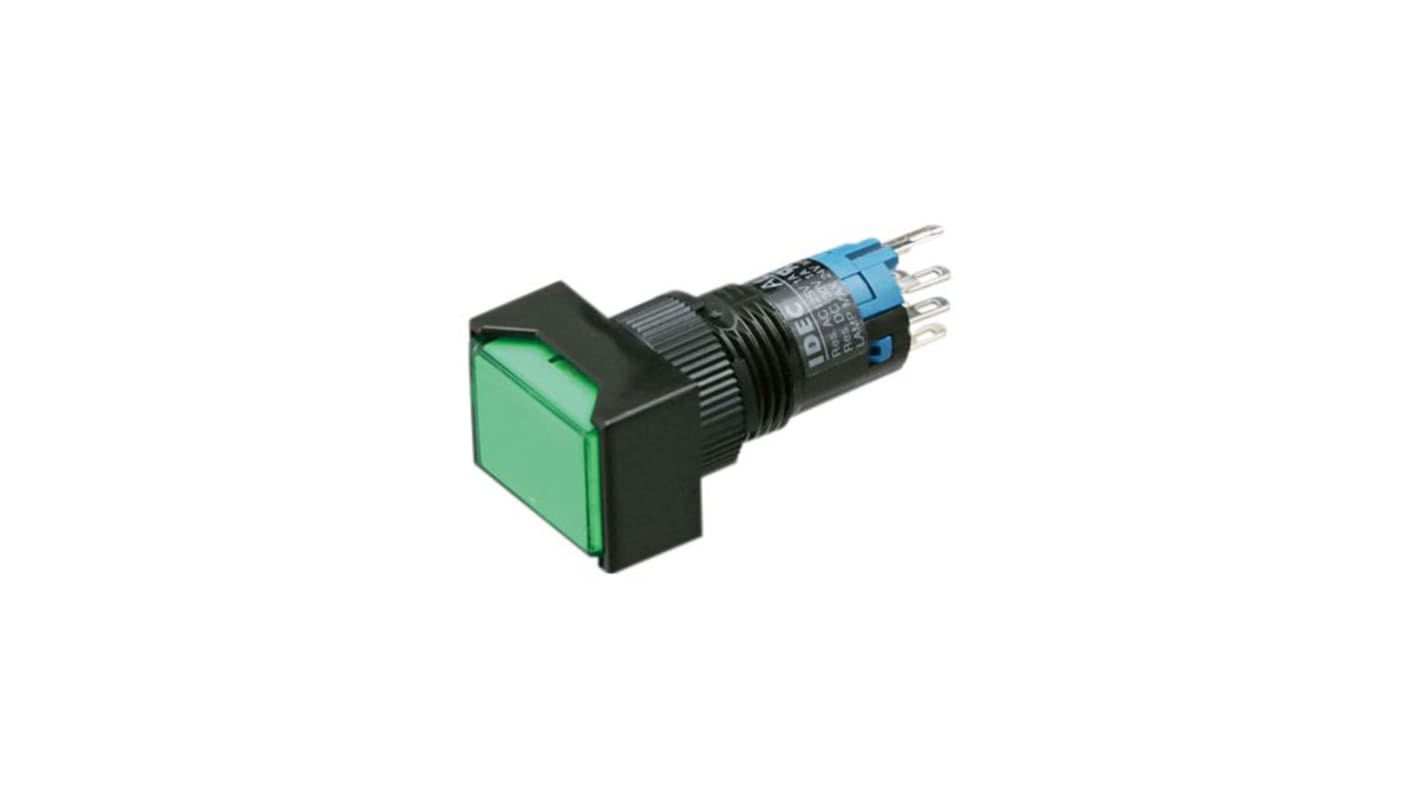

Idec AL6H Series Illuminated Push Button Switch, Momentary, Panel, 16.2 mm Cutout, 2 CO, Green LED, IP65, 24 V dc 220 V
- RS Stock No.:
- 288-4347
- Distrelec Article No.:
- 301-50-945
- Mfr. Part No.:
- AL6H-M24PG
- Brand:
- Idec
Subtotal (1 unit)*
£21.70
(exc. VAT)
£26.04
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 36 unit(s) shipping from 14 September 2026
- Plus 22 unit(s) shipping from 14 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £21.70 |
*price indicative
- RS Stock No.:
- 288-4347
- Distrelec Article No.:
- 301-50-945
- Mfr. Part No.:
- AL6H-M24PG
- Brand:
- Idec
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Idec | |
| Actuator Colour | Green | |
| Switch Operation | Momentary | |
| Product Type | Push Button Switch | |
| Illuminated | Yes | |
| Panel Cutout Size | 16.2 mm | |
| Series | AL6H | |
| Mount Type | Panel | |
| Contact Configuration | 2 CO | |
| LED Colour | Green | |
| Terminal Type | Blade | |
| IP Rating | IP65 | |
| Contact AC Voltage | 220V ac | |
| Contact DC Voltage | 24V dc | |
| Actuator Style | Rectangular | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 55°C | |
| Switch Contact Current | 1A | |
| Width | 18mm | |
| Standards/Approvals | RoHS, REACH | |
| Length | 31mm | |
| Height | 39mm | |
| Legend | Blank | |
| Select all | ||
|---|---|---|
Brand Idec | ||
Actuator Colour Green | ||
Switch Operation Momentary | ||
Product Type Push Button Switch | ||
Illuminated Yes | ||
Panel Cutout Size 16.2 mm | ||
Series AL6H | ||
Mount Type Panel | ||
Contact Configuration 2 CO | ||
LED Colour Green | ||
Terminal Type Blade | ||
IP Rating IP65 | ||
Contact AC Voltage 220V ac | ||
Contact DC Voltage 24V dc | ||
Actuator Style Rectangular | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 55°C | ||
Switch Contact Current 1A | ||
Width 18mm | ||
Standards/Approvals RoHS, REACH | ||
Length 31mm | ||
Height 39mm | ||
Legend Blank | ||
- COO (Country of Origin):
- JP
The Illuminated Pushbutton Switch features a momentary function, The switch incorporates a red LED for illumination, offering clear visual feedback. With its reliable design and bright illumination, this switch is suitable for various applications where precise control and visibility are essential, such as control panels, machinery, or automation systems.
RoHS compliant
