Festo QS Series, 192808 M5 Male Threaded to Tube
- RS Stock No.:
- 647-201
- Mfr. Part No.:
- QS-M5-1/4-I-U-M
- Brand:
- Festo
Subtotal (1 pack of 10 units)*
£30.40
(exc. VAT)
£36.48
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 13 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £30.40 | £3.04 |
*price indicative
- RS Stock No.:
- 647-201
- Mfr. Part No.:
- QS-M5-1/4-I-U-M
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Product Type | Pneumatic Fitting | |
| Connection Type A | M5 Male | |
| Connection Size A | M5 | |
| Connection Type B | Threaded to Tube | |
| Connection Size B | 1/4 in | |
| Series | QS | |
| Thread Size | M5 | |
| Material | Polyoxymethylene, Polybutylene Terephthalate, Nickel Plated Brass, Nitrile Rubber, High Alloy Stainless Steel | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | RoHS | |
| Maximum Operating Pressure | 1 Mpa | |
| Connection Type | M5 Male | |
| Select all | ||
|---|---|---|
Brand Festo | ||
Product Type Pneumatic Fitting | ||
Connection Type A M5 Male | ||
Connection Size A M5 | ||
Connection Type B Threaded to Tube | ||
Connection Size B 1/4 in | ||
Series QS | ||
Thread Size M5 | ||
Material Polyoxymethylene, Polybutylene Terephthalate, Nickel Plated Brass, Nitrile Rubber, High Alloy Stainless Steel | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals RoHS | ||
Maximum Operating Pressure 1 Mpa | ||
Connection Type M5 Male | ||
- COO (Country of Origin):
- JP

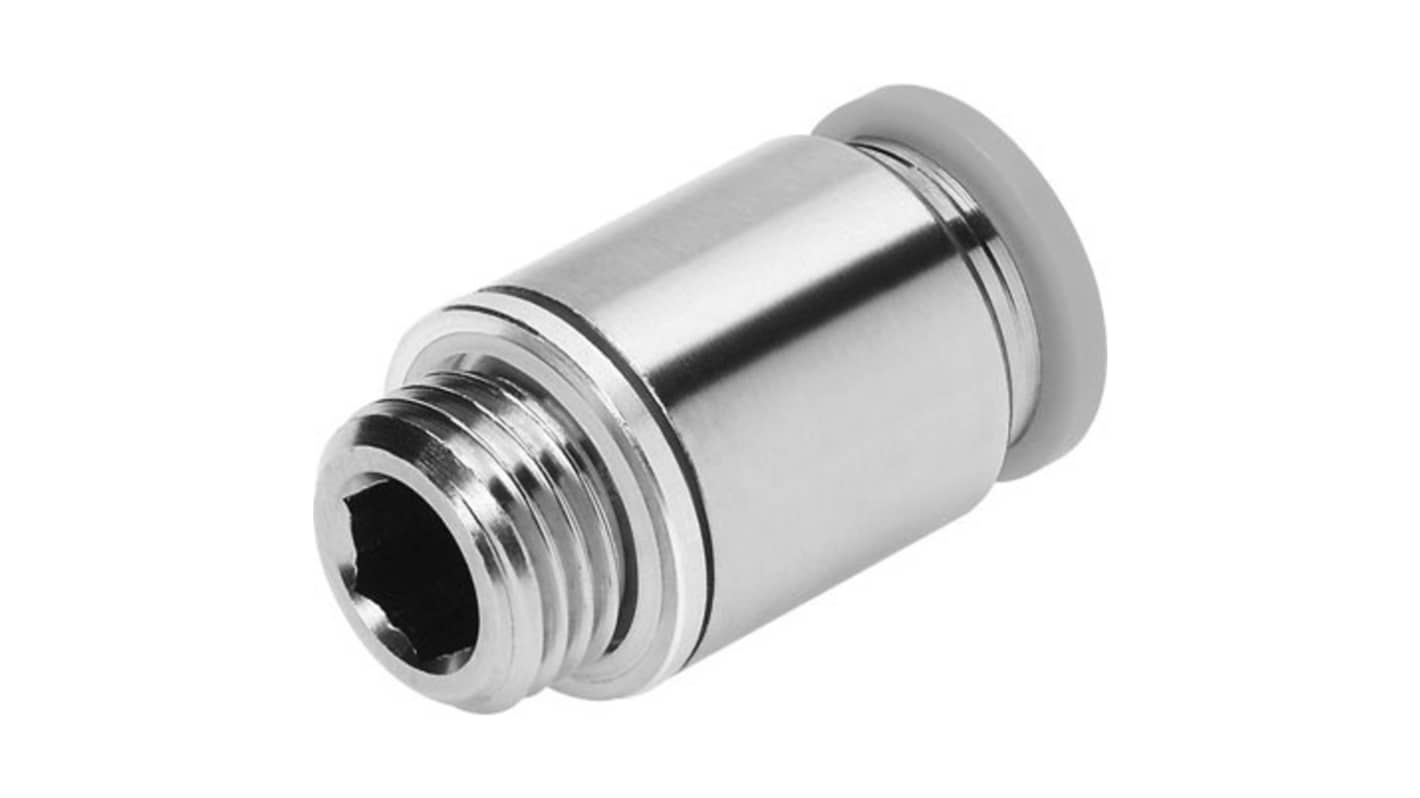

The Festo Push-in fitting is designed for reliable pneumatic connections, ensuring efficient operation within a wide range of applications. This straight design fitting supports a nominal size of 2.591 mm and can withstand operating pressures from -0.095 MPa to 1 MPa. Manufactured for flexibility, the mounting position is optional, making it easy to integrate into various systems. This product adheres to industry standards for compressed air, offering both lubricated and unlubricated operation while providing a dependable connection for tubing with a 1/4 inch outside diameter. With a robust construction that includes nickel-plated housing and high-alloy stainless steel components, it promises durability and longevity even in demanding environments.
Optional mounting position enhances installation versatility
Corrosion resistance class CRC 1 ensures reliability in low corrosion environments
RoHS compliant materials support environmental safety standards
Internal hexagon mounting enables easy assembly and disassembly
Pneumatic connections are compatible with common tubing sizes simplifying integration
