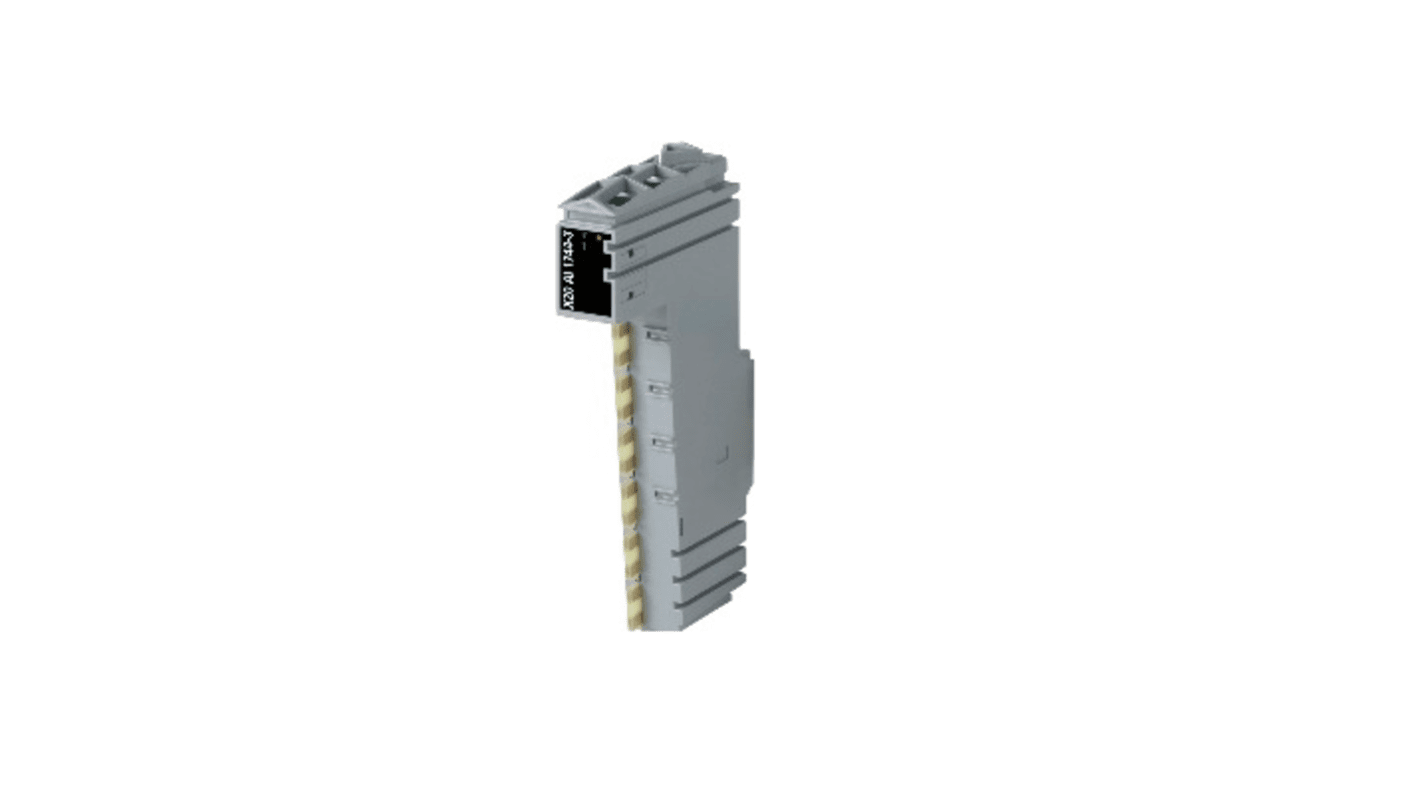

B&R X20 Series Analog Input Module for Use with X20 Terminal Block 12 Pin
- RS Stock No.:
- 566-506
- Mfr. Part No.:
- X20AI8321
- Brand:
- B&R
Subtotal (1 unit)*
£404.68
(exc. VAT)
£485.62
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 5 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £404.68 |
*price indicative
- RS Stock No.:
- 566-506
- Mfr. Part No.:
- X20AI8321
- Brand:
- B&R
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | B&R | |
| Accessory Type | Analogue Input Module | |
| Product Type | Analog Input Module | |
| Series | X20 | |
| For Use With | X20 Terminal Block 12 Pin | |
| IP Rating | IP20 | |
| Standards/Approvals | ABS, BV EC33B, CCS, CE, DNV, EN 60529, KR, LR ENV1, UKCA | |
| Hazardous Area Certification | FTZÚ 09 ATEX 0083X, Groups ABCD, Division 2, cULus E115267 Industrial Control Equipment, cCSAus, ATEX Zone 2, II 3G Ex nA nC IIA T5 Gc | |
| Select all | ||
|---|---|---|
Brand B&R | ||
Accessory Type Analogue Input Module | ||
Product Type Analog Input Module | ||
Series X20 | ||
For Use With X20 Terminal Block 12 Pin | ||
IP Rating IP20 | ||
Standards/Approvals ABS, BV EC33B, CCS, CE, DNV, EN 60529, KR, LR ENV1, UKCA | ||
Hazardous Area Certification FTZÚ 09 ATEX 0083X, Groups ABCD, Division 2, cULus E115267 Industrial Control Equipment, cCSAus, ATEX Zone 2, II 3G Ex nA nC IIA T5 Gc | ||
- COO (Country of Origin):
- AT
The B&R Industrial Automation GmbH Analog Input Module is equipped with 8 inputs and a 12-bit digital converter resolution. It supports selection between two current ranges: 0 to 20 mA and 4 to 20 mA. The module features a configurable input filter with ramp limiting and includes signal monitoring against defined upper and lower limits. Key functions include input filtering and continuous monitoring of the input signals for enhanced reliability and accuracy.
8 inputs
12 bit converter resolution
CE and UKCA certified
XH Series Contact Housings
The XH Series Housings from JST have been designed with the purpose of providing high density mounting for a wide range of miniature electronic equipment. The connectors are very small in size, yet extremely reliable.
Features and Benefits
• 2.5 mm pitch
• 6 way connector housing
• Single row housing
• Mounting height of 9.8 mm
• Highly reliable contact at all times
• Natural (white) in colour
• UL 94V-0 flammability rating
