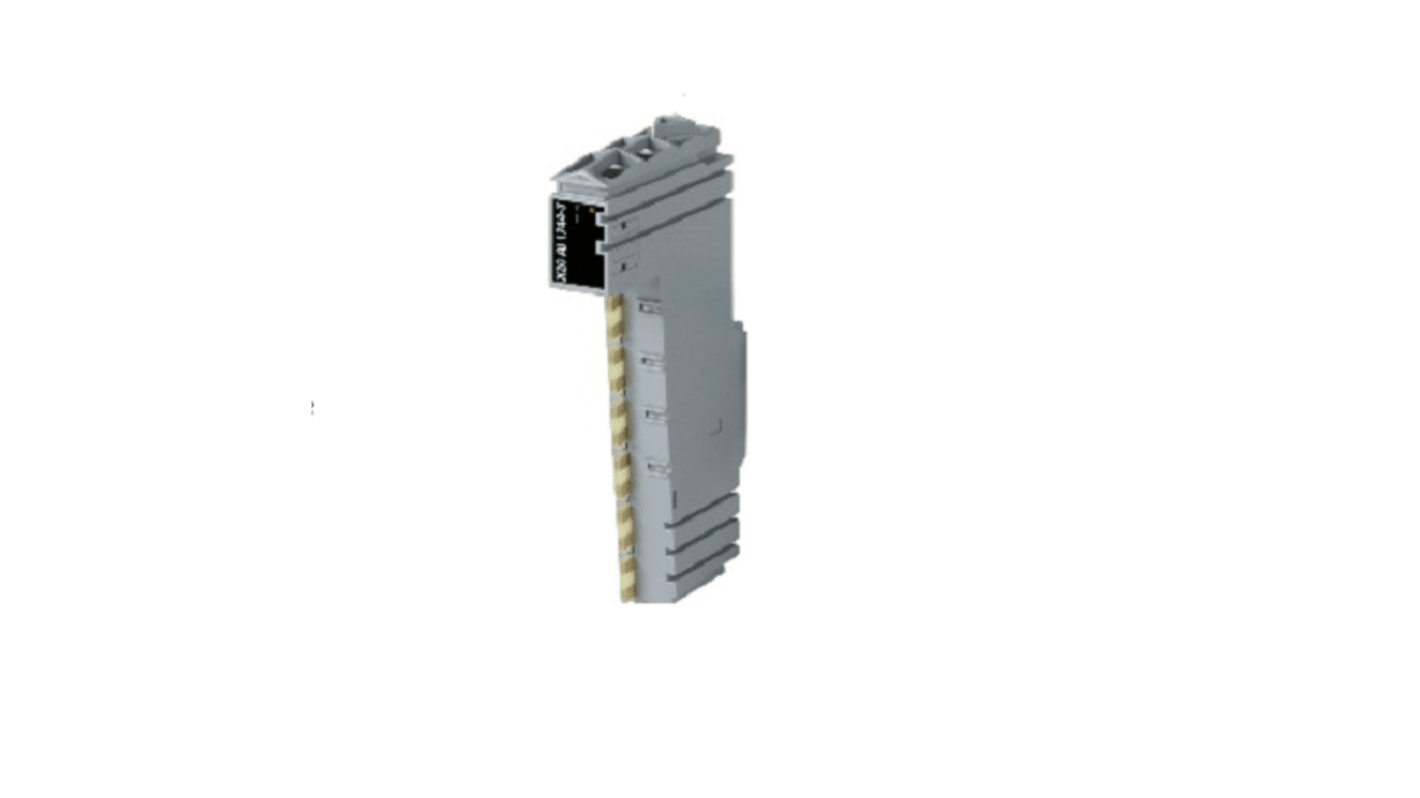

B&R X20 Series Analogue Input Module for Use with X20 Terminal Block 12 Pin
- RS Stock No.:
- 566-502
- Mfr. Part No.:
- X20AI1744
- Brand:
- B&R
Subtotal (1 unit)*
£305.40
(exc. VAT)
£366.48
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 19 unit(s) ready to ship from another location
- Plus 14 unit(s) shipping from 09 March 2026
- Plus 15 unit(s) shipping from 30 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £305.40 |
*price indicative
- RS Stock No.:
- 566-502
- Mfr. Part No.:
- X20AI1744
- Brand:
- B&R
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | B&R | |
| Accessory Type | Analogue Input Module | |
| Product Type | Analogue Input Module | |
| Series | X20 | |
| For Use With | X20 Terminal Block 12 Pin | |
| IP Rating | IP20 | |
| Standards/Approvals | UKCA, EN 60529, CE | |
| Hazardous Area Certification | II 3G Ex nA nC IIA T5 Gc, FTZÚ 09 ATEX 0083X, Groups ABCD, UL cULus E115267 Industrial Control Equipment Hazloc, HazLoc cCSAus 244665 Process control equipment for hazardous locations Class I, ATEX Zone 2, Division 2 | |
| Supply Voltage | 5.5 V dc | |
| Select all | ||
|---|---|---|
Brand B&R | ||
Accessory Type Analogue Input Module | ||
Product Type Analogue Input Module | ||
Series X20 | ||
For Use With X20 Terminal Block 12 Pin | ||
IP Rating IP20 | ||
Standards/Approvals UKCA, EN 60529, CE | ||
Hazardous Area Certification II 3G Ex nA nC IIA T5 Gc, FTZÚ 09 ATEX 0083X, Groups ABCD, UL cULus E115267 Industrial Control Equipment Hazloc, HazLoc cCSAus 244665 Process control equipment for hazardous locations Class I, ATEX Zone 2, Division 2 | ||
Supply Voltage 5.5 V dc | ||
- COO (Country of Origin):
- AT
The B&R Industrial Automation GmbH Analog Input Module is designed to work with both 4-wire and 6-wire strain gauge load cells. It incorporates a compensation concept that eliminates absolute uncertainties in the measurement system, such as component tolerances, effective bridge voltage, or zero-point offset. This ensures that the measurement precision reflects the true compensated value, which may vary only due to changes in operating temperature.
1 full-bridge strain gauge input
Data output rate configurable from 0.1 Hz to 7.5 kHz
Special operating modes
Configurable filter level
