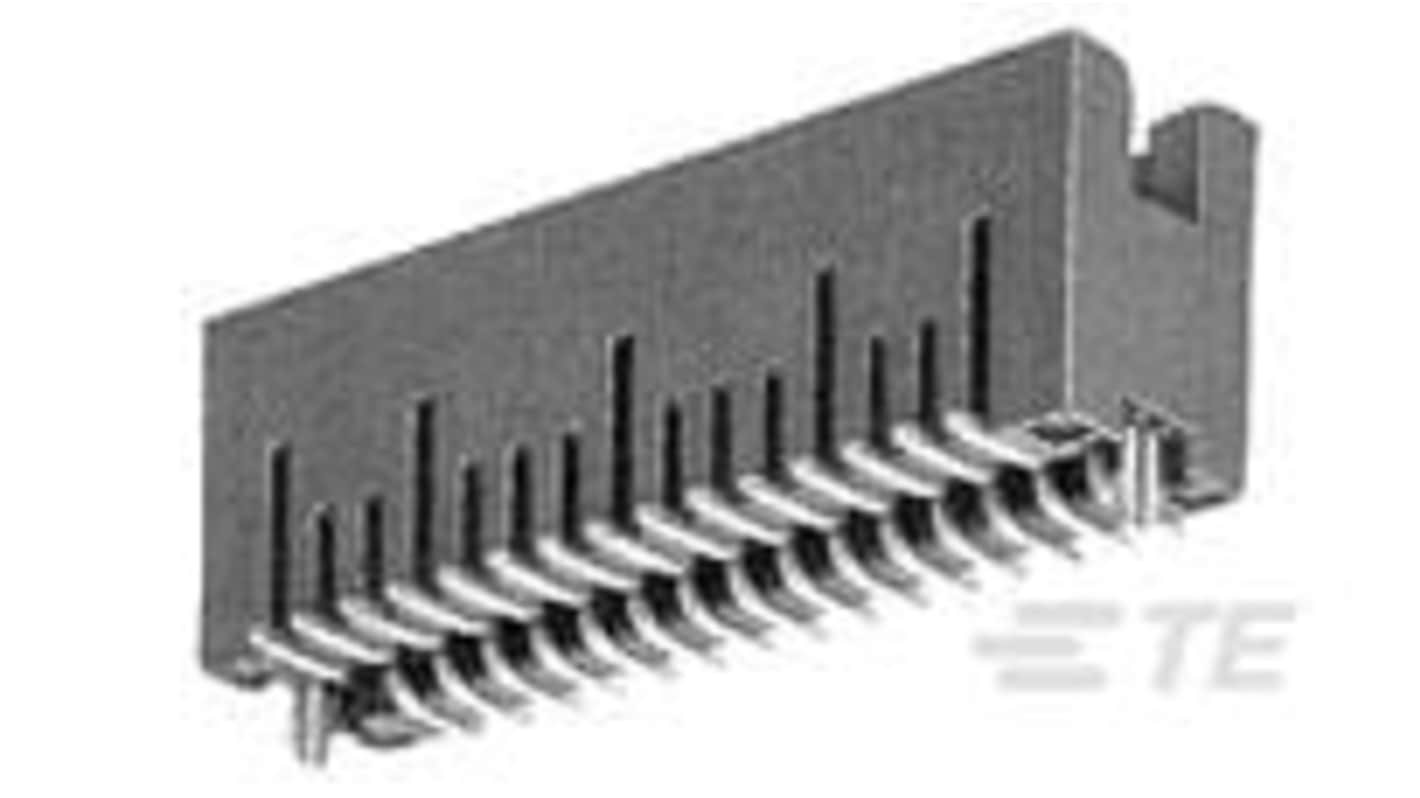

TE Connectivity AMPMODU Series Vertical Surface PCB Header, 20 Contact(s), 1.27 mm Pitch, 2 Row(s), Shrouded
- RS Stock No.:
- 520-639
- Mfr. Part No.:
- 5-104656-2
- Brand:
- TE Connectivity
Subtotal (1 tube of 66 units)*
£244.21
(exc. VAT)
£293.05
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 08 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 + | £244.21 | £3.70 |
*price indicative
- RS Stock No.:
- 520-639
- Mfr. Part No.:
- 5-104656-2
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Series | AMPMODU | |
| Product Type | PCB Header | |
| Current | 0.5A | |
| Pitch | 1.27mm | |
| Number of Contacts | 20 | |
| Housing Material | Thermoplastic | |
| Number of Rows | 2 | |
| Orientation | Vertical | |
| Shrouded/Unshrouded | Shrouded | |
| Mount Type | Surface | |
| Connector System | Board-to-Board | |
| Contact Material | Phosphor Bronze | |
| Contact Plating | Gold | |
| Minimum Operating Temperature | 65°C | |
| Termination Type | Surface Mount | |
| Row Pitch | 1.27mm | |
| Maximum Operating Temperature | 105°C | |
| Standards/Approvals | No | |
| Voltage | 30 V | |
| Distrelec Product Id | 304-54-145 | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Series AMPMODU | ||
Product Type PCB Header | ||
Current 0.5A | ||
Pitch 1.27mm | ||
Number of Contacts 20 | ||
Housing Material Thermoplastic | ||
Number of Rows 2 | ||
Orientation Vertical | ||
Shrouded/Unshrouded Shrouded | ||
Mount Type Surface | ||
Connector System Board-to-Board | ||
Contact Material Phosphor Bronze | ||
Contact Plating Gold | ||
Minimum Operating Temperature 65°C | ||
Termination Type Surface Mount | ||
Row Pitch 1.27mm | ||
Maximum Operating Temperature 105°C | ||
Standards/Approvals No | ||
Voltage 30 V | ||
Distrelec Product Id 304-54-145 | ||
- COO (Country of Origin):
- MX
The TE Connectivity PCB Mount Header is an innovative component designed for vertical, board-to-board applications, providing a seamless connection for robust electronics. With its 20-position layout and a compact 1.27 mm centreline, this fully shrouded header ensures reliable electrical performance while facilitating efficient space utilisation on printed circuit boards. Crafted for superior durability, it boasts gold-plated contacts to enhance conductivity, making it ideal for a variety of signal applications. This product is engineered to withstand challenging operating environments, with a temperature range extending from -65°C to 105°C. Its unique hold-down post retention mechanism provides added security during assembly, while compliance with stringent industry standards assures peace of mind for manufacturers and engineers alike.
Designed for vertical PCB mounting to simplify assembly
Fully shrouded header type for increased protection against misalignment
Features a standard contact diameter for compatibility with various applications
Constructed from thermoplastic materials for enhanced reliability
Utilises parallel board-to-board configuration to optimise layout efficiency
Meets industry standards for safety and compliance
Low halogen content reduces environmental impact
Equipped with customisable packaging options to meet bulk requirements
