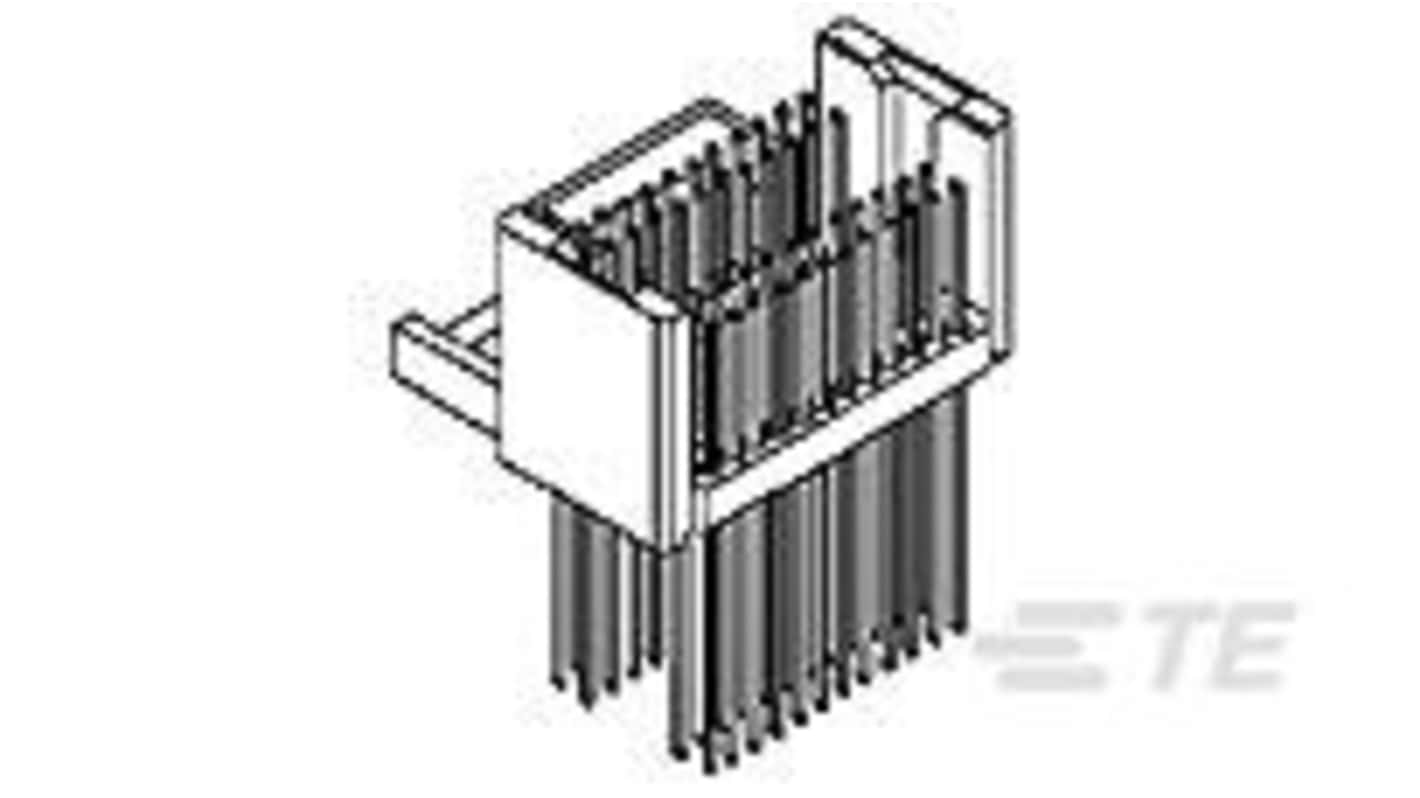

TE Connectivity Z-PACK Series Vertical Board PCB Header, 72 Contact(s), 2 mm Pitch, 12 Row(s), Unshrouded

View all PCB Headers

Subtotal (1 tube of 4 units)*

£186.92

(exc. VAT)

£224.30

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 13 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s)
Per Tube
Per unit*
1 +£186.92£46.73

*price indicative

RS Stock No.:
505-917
Mfr. Part No.:
5120824-1
Brand:
TE Connectivity
Find similar products by selecting one or more attributes.
Select all

Brand

TE Connectivity

Product Type

PCB Header

Series

Z-PACK

Pitch

2mm

Current

0.7A

Number of Contacts

72

Housing Material

Fibreglass Polyester

Number of Rows

12

Orientation

Vertical

Shrouded/Unshrouded

Unshrouded

Mount Type

Board

Connector System

Board-to-Board

Contact Plating

Nickel

Contact Material

Phosphor Bronze

Row Pitch

2mm

Termination Type

Solder

Contact Gender

Male

Standards/Approvals

No

COO (Country of Origin):
CN
The TE Connectivity hard metric male connector is engineered for superior performance in demanding applications where reliability is paramount. Designed for board-to-board connectivity, it features a robust construction, accommodating a wide range of data rates up to 1 Gb/s. The arrangement includes 72 positions distributed across 12 rows and 6 columns, supporting a fully loaded mating configuration. Its housing is crafted from durable polyester reinforced with glass fibre, providing both strength and resilience in challenging environments. The connector's vertical PCB mount orientation ensures easy integration into various designs, making it suitable for mezzanine backplane architectures. This product also adheres to critical industry standards and compliance directives, ensuring peace of mind for design engineers and manufacturers alike.

Utilises a through-hole press-fit termination method for secure PCB attachment

Features a mating alignment guide hole for proper connector positioning

The primary product colour is black, enhancing visibility within complex assemblies

Boasts a mating area length offering flexibility in design configurations

Constructed with phosphor bronze contacts for exceptional conductivity and durability

Offers a minimal contact current rating while ensuring reliable signal integrity

Packaging is efficient, available in a convenient tube method for easy handling

The design is compliant with the EU RoHS directive, promoting environmental sustainability

Ideal for applications requiring a compact footprint without compromising on performance
