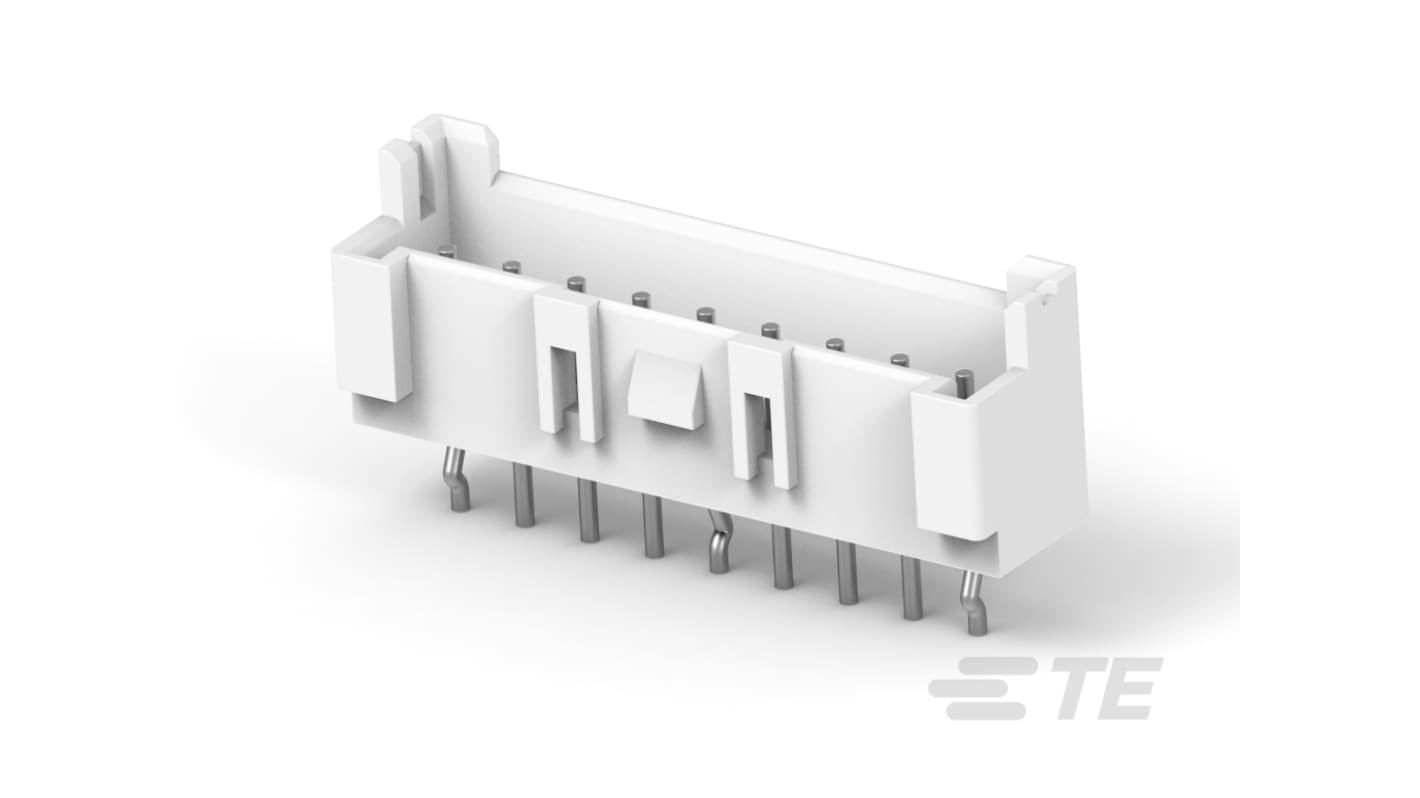

TE Connectivity Economy Power 2.5 Series Vertical Board PCB Header, 9 Contact(s), 2.5 mm Pitch, 1 Row(s), Shrouded
- RS Stock No.:
- 504-872
- Mfr. Part No.:
- 2132415-9
- Brand:
- TE Connectivity
Subtotal (1 bag of 800 units)*
£226.67
(exc. VAT)
£272.00
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 09 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Bag(s) | Per Bag | Per unit* |
|---|---|---|
| 1 + | £226.67 | £0.283 |
*price indicative
- RS Stock No.:
- 504-872
- Mfr. Part No.:
- 2132415-9
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Product Type | PCB Header | |
| Series | Economy Power 2.5 | |
| Pitch | 2.5mm | |
| Current | 4.2A | |
| Housing Material | Fibreglass Reinforced Polybutylene Terephthalate | |
| Number of Contacts | 9 | |
| Number of Rows | 1 | |
| Orientation | Vertical | |
| Shrouded/Unshrouded | Shrouded | |
| Connector System | Wire-to-Board | |
| Mount Type | Board | |
| Contact Material | Brass | |
| Contact Plating | Tin Plated | |
| Minimum Operating Temperature | -55°C | |
| Termination Type | Solder | |
| Row Pitch | 2.5mm | |
| Tail Pin Length | 3.4mm | |
| Contact Gender | Male | |
| Maximum Operating Temperature | 105°C | |
| Mating Pin Length | 3.6mm | |
| Standards/Approvals | UL 94V-0, VDE | |
| Voltage | 250 V | |
| Distrelec Product Id | 304-50-560 | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Product Type PCB Header | ||
Series Economy Power 2.5 | ||
Pitch 2.5mm | ||
Current 4.2A | ||
Housing Material Fibreglass Reinforced Polybutylene Terephthalate | ||
Number of Contacts 9 | ||
Number of Rows 1 | ||
Orientation Vertical | ||
Shrouded/Unshrouded Shrouded | ||
Connector System Wire-to-Board | ||
Mount Type Board | ||
Contact Material Brass | ||
Contact Plating Tin Plated | ||
Minimum Operating Temperature -55°C | ||
Termination Type Solder | ||
Row Pitch 2.5mm | ||
Tail Pin Length 3.4mm | ||
Contact Gender Male | ||
Maximum Operating Temperature 105°C | ||
Mating Pin Length 3.6mm | ||
Standards/Approvals UL 94V-0, VDE | ||
Voltage 250 V | ||
Distrelec Product Id 304-50-560 | ||
- COO (Country of Origin):
- CN
The TE Connectivity PCB Mount Header is engineered for reliability in wire-to-board connections, featuring a vertical orientation with 9 positions. Designed for a centreline of 2.5 mm, this fully shrouded connector ensures secure and efficient electrical connectivity for various applications. With robust housing made from PBT GF and a natural colour, it seamlessly fits into diverse PCB designs. This connector is ideal for economy power solutions, providing maximum performance while adhering to stringent industry standards. The through-hole solder termination method further enhances its durability. Aimed at simplifying assembly, its compact dimensions and precise configuration make it suitable for both high-performance and everyday applications.
Engineered for efficient wire-to-board connections
Vertical orientation optimises space on the PCB
Fully shrouded design prevents accidental contact
Robust PBT GF housing ensures long-lasting performance
Optimal for a wide range of electronic applications
Complies with UL flammability ratings for safety
Compatible with wave soldering capabilities
Natural colour design blends well with PCB aesthetics
Compact dimensions facilitate dense layout designs
Mating retardation helps maintain secure connections
