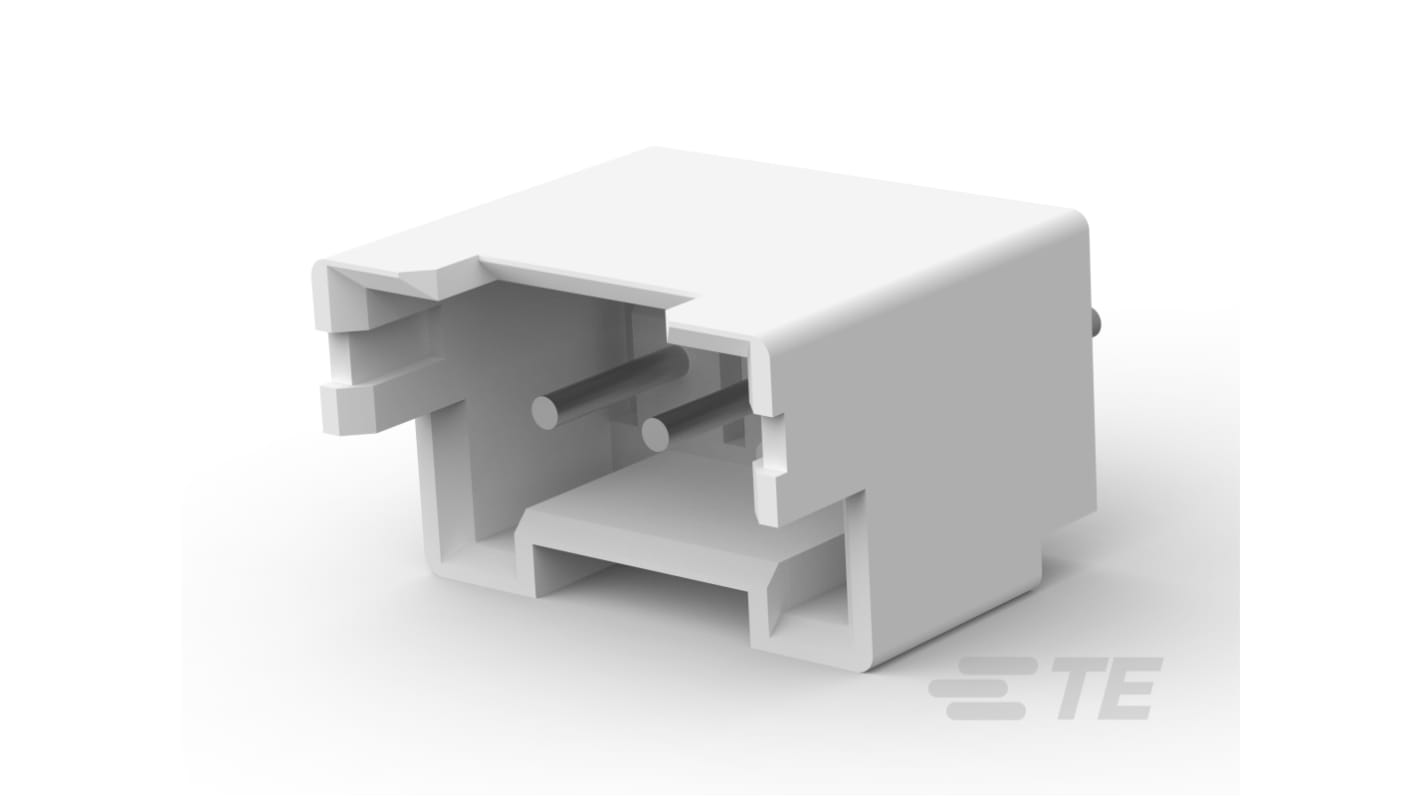

TE Connectivity Economy Power 2.5 Series Vertical Board PCB Header, 3 Contact(s), 2.5 mm Pitch, 1 Row(s), Shrouded
- RS Stock No.:
- 504-871
- Mfr. Part No.:
- 2132415-3
- Brand:
- TE Connectivity
Subtotal (1 bag of 1800 units)*
£187.32
(exc. VAT)
£224.78
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 09 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Bag(s) | Per Bag | Per unit* |
|---|---|---|
| 1 + | £187.32 | £0.104 |
*price indicative
- RS Stock No.:
- 504-871
- Mfr. Part No.:
- 2132415-3
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Series | Economy Power 2.5 | |
| Product Type | PCB Header | |
| Current | 4.2A | |
| Pitch | 2.5mm | |
| Number of Contacts | 3 | |
| Housing Material | Fibreglass Reinforced Polybutylene Terephthalate | |
| Number of Rows | 1 | |
| Orientation | Vertical | |
| Shrouded/Unshrouded | Shrouded | |
| Mount Type | Board | |
| Connector System | Wire-to-Board | |
| Contact Plating | Tin Plated | |
| Contact Material | Brass | |
| Minimum Operating Temperature | -55°C | |
| Termination Type | Solder | |
| Row Pitch | 2.5mm | |
| Tail Pin Length | 3.4mm | |
| Maximum Operating Temperature | 105°C | |
| Standards/Approvals | 2016, China RoHS 2 Directive MIIT Order No 32, EU ELV Directive 2000/53/EC Compliant, EU RoHS Directive 2011/65/EU Compliant, UL 94V-0, VDE Certificate | |
| Mating Pin Length | 3.6mm | |
| Voltage | 250 V | |
| Distrelec Product Id | 304-50-556 | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Series Economy Power 2.5 | ||
Product Type PCB Header | ||
Current 4.2A | ||
Pitch 2.5mm | ||
Number of Contacts 3 | ||
Housing Material Fibreglass Reinforced Polybutylene Terephthalate | ||
Number of Rows 1 | ||
Orientation Vertical | ||
Shrouded/Unshrouded Shrouded | ||
Mount Type Board | ||
Connector System Wire-to-Board | ||
Contact Plating Tin Plated | ||
Contact Material Brass | ||
Minimum Operating Temperature -55°C | ||
Termination Type Solder | ||
Row Pitch 2.5mm | ||
Tail Pin Length 3.4mm | ||
Maximum Operating Temperature 105°C | ||
Standards/Approvals 2016, China RoHS 2 Directive MIIT Order No 32, EU ELV Directive 2000/53/EC Compliant, EU RoHS Directive 2011/65/EU Compliant, UL 94V-0, VDE Certificate | ||
Mating Pin Length 3.6mm | ||
Voltage 250 V | ||
Distrelec Product Id 304-50-556 | ||
- COO (Country of Origin):
- CN
The TE Connectivity PCB Mount Header, designed for vertical wire-to-board applications, offers a robust and efficient solution for connecting multiple electronic devices. With three positions and a 2.5 mm centreline, this fully shrouded connector ensures a secure connection while allowing for easy assembly in a variety of PCB designs. Crafted from durable materials, this header not only meets operational voltage demands but withstands a wide temperature range, making it ideal for both power and signal circuit applications. Furthermore, its thoughtful design includes features such as polarization for effortless mating alignment, enhancing the performance of your electronic projects.
Natural colour housing for seamless compatibility with various PCB designs
A fully loaded connector contact load capacity facilitates reliable electrical performance
Inline contact layout optimises space efficiency on your printed circuit board
Brass contact base adds durability and longevity to your connections
Thin tin plating on contact areas promotes enhanced conductivity
The latch mating retention type prevents disconnects during operation
Wave solder capabilities simplify the assembly process, saving time and resources
UL 94V-0 flammability rating confirms compliance with safety standards
