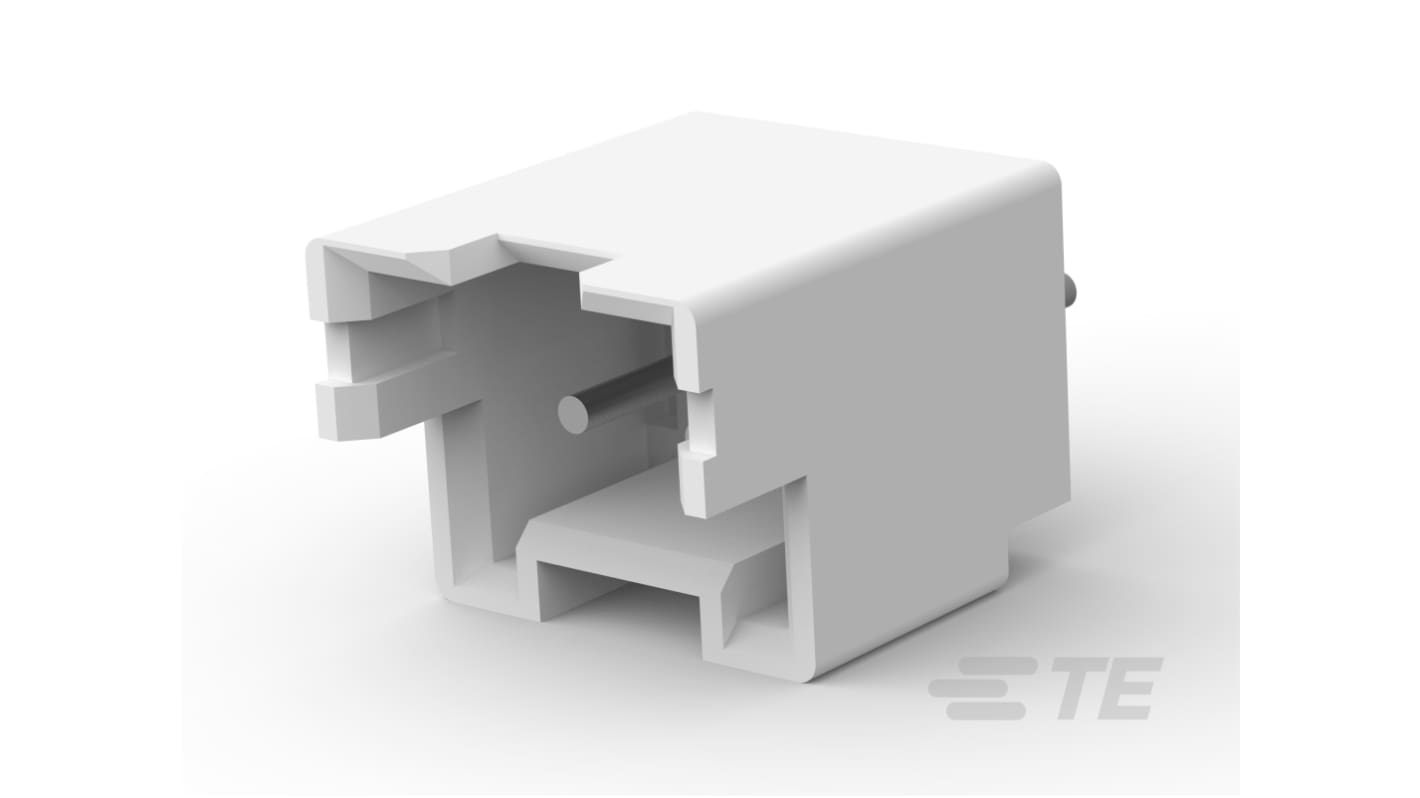

TE Connectivity Economy Power 2.5 Series Vertical Board PCB Header, 2 Contact(s), 2.5 mm Pitch, 1 Row(s), Shrouded
- RS Stock No.:
- 501-933
- Mfr. Part No.:
- 2132415-2
- Brand:
- TE Connectivity
Subtotal (1 box of 1800 units)*
£173.89
(exc. VAT)
£208.67
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 08 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es) | Per Box | Per unit* |
|---|---|---|
| 1 + | £173.89 | £0.097 |
*price indicative
- RS Stock No.:
- 501-933
- Mfr. Part No.:
- 2132415-2
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Product Type | PCB Header | |
| Series | Economy Power 2.5 | |
| Pitch | 2.5mm | |
| Current | 4.2A | |
| Number of Contacts | 2 | |
| Housing Material | Fibreglass Reinforced Polybutylene Terephthalate | |
| Number of Rows | 1 | |
| Orientation | Vertical | |
| Shrouded/Unshrouded | Shrouded | |
| Mount Type | Board | |
| Connector System | Wire-to-Board | |
| Contact Plating | Tin Plated | |
| Contact Material | Brass | |
| Termination Type | Solder | |
| Minimum Operating Temperature | -55°C | |
| Row Pitch | 2.5mm | |
| Maximum Operating Temperature | 105°C | |
| Tail Pin Length | 3.4mm | |
| Standards/Approvals | UL E28476 | |
| Mating Pin Length | 3.6mm | |
| Voltage | 250 V | |
| Distrelec Product Id | 304-50-555 | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Product Type PCB Header | ||
Series Economy Power 2.5 | ||
Pitch 2.5mm | ||
Current 4.2A | ||
Number of Contacts 2 | ||
Housing Material Fibreglass Reinforced Polybutylene Terephthalate | ||
Number of Rows 1 | ||
Orientation Vertical | ||
Shrouded/Unshrouded Shrouded | ||
Mount Type Board | ||
Connector System Wire-to-Board | ||
Contact Plating Tin Plated | ||
Contact Material Brass | ||
Termination Type Solder | ||
Minimum Operating Temperature -55°C | ||
Row Pitch 2.5mm | ||
Maximum Operating Temperature 105°C | ||
Tail Pin Length 3.4mm | ||
Standards/Approvals UL E28476 | ||
Mating Pin Length 3.6mm | ||
Voltage 250 V | ||
Distrelec Product Id 304-50-555 | ||
- COO (Country of Origin):
- CN
The TE Connectivity PCB Mount Header is designed for vertical wire-to-board applications, providing reliable connections in compact electronic assemblies. With its fully shrouded construction, this innovative connector ensures excellent durability and protects against accidental disconnection. This model accommodates two positions with a 2.5 mm centreline, making it an ideal choice for streamlined design and efficient circuit integration. Built for versatility, it is compatible with various electronic standards, ensuring seamless integration into a variety of systems. From consumer electronics to industrial equipment, its robust design supports an operating voltage of up to 250 VAC while withstanding extensive temperature ranges, making it suitable for demanding environments.
Compact design enhances space utilisation in electronic assemblies
Fully shrouded header provides additional protection against misalignment
Tin (Sn) plating offers reliable conductivity and resistance to corrosion
Easy through-hole solder termination simplifies installation
Compatible with a wide range of applications ensures versatility
Robust construction supports high contact current ratings for reliable performance
Advanced materials are engineered for long-lasting durability
Maintains temperature resilience to accommodate various operating conditions
