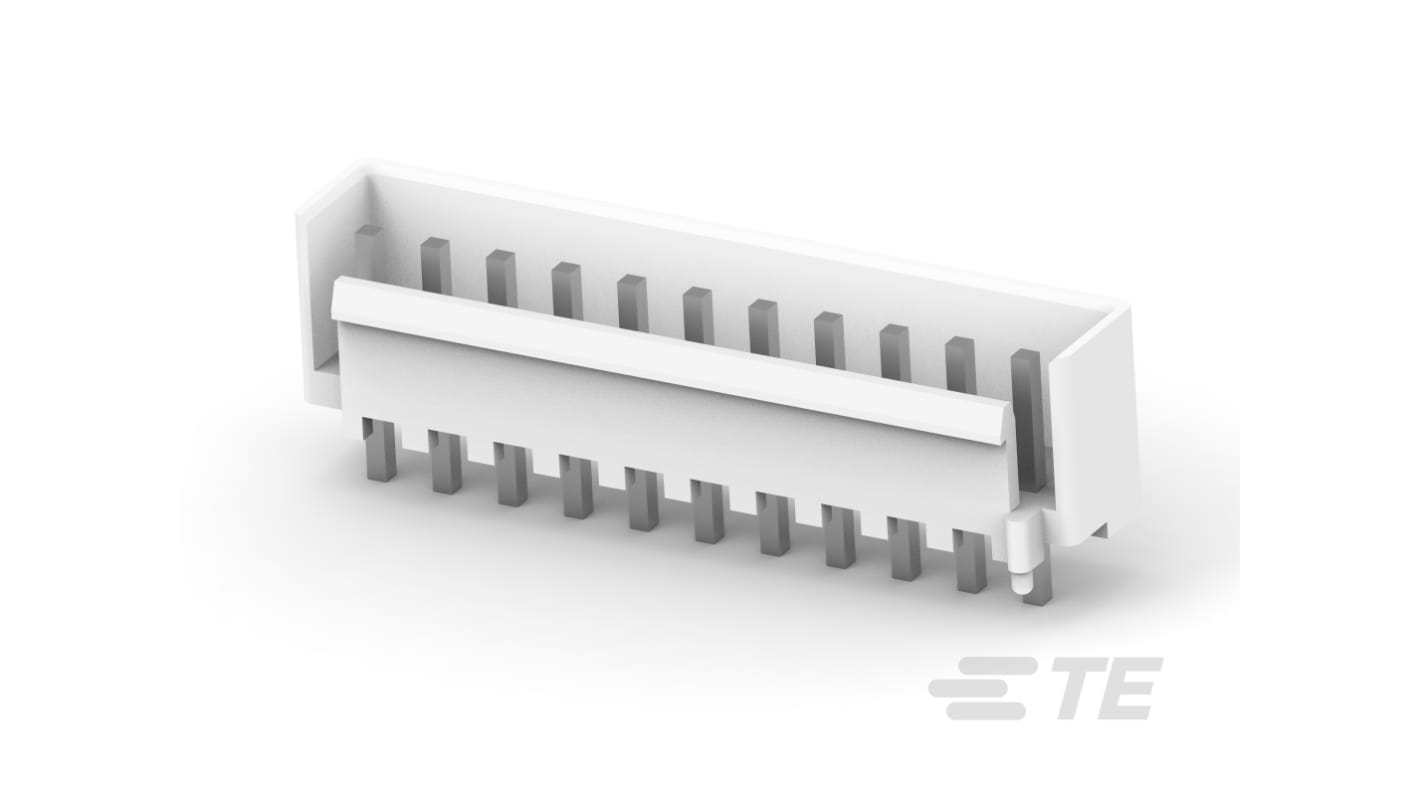

TE Connectivity Economy Power Series Vertical Board PCB Header, 11 Contact(s), 3.96 mm Pitch, 1 Row, Shrouded

RS Stock No.:: 480-084
Distrelec Article No.:: 304-57-887
Mfr. Part No.:: 1-1744427-1
Brand:: TE Connectivity

TE Connectivity Economy Power Series Vertical Board PCB Header, 11 Contact(s), 3.96 mm Pitch, 1 Row, Shrouded

Subtotal (1 pack of 200 units)*

£181.70

(exc. VAT)

£218.04

(inc. VAT)

Stock information currently inaccessible - Please check back later

Pack(s)	Per Pack	Per unit*
1 +	£181.70	£0.909

*price indicative

RS Stock No.:: 480-084
Distrelec Article No.:: 304-57-887
Mfr. Part No.:: 1-1744427-1
Brand:: TE Connectivity

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	TE Connectivity
	Product Type	PCB Header
	Series	Economy Power
	Current	12.3A
	Pitch	3.96mm
	Housing Material	Nylon Fibreglass
	Number of Contacts	11
	Number of Rows	1
	Orientation	Vertical
	Shrouded/Unshrouded	Shrouded
	Mount Type	Board
	Connector System	Wire-to-Board
	Contact Plating	Tin Plated
	Contact Material	Brass
	Termination Type	Solder
	Minimum Operating Temperature	-55°C
	Row Pitch	3.96mm
	Maximum Operating Temperature	105°C
	Tail Pin Length	3.62mm
	Standards/Approvals	2016, China RoHS 2 Directive MIIT Order No 32, EU ELV Directive 2000/53/EC, EU RoHS Directive 2011/65/EU, UL 94V-2, VDE Certificate
	Voltage	60 V

	Select all
	Brand TE Connectivity
	Product Type PCB Header
	Series Economy Power
	Current 12.3A
	Pitch 3.96mm
	Housing Material Nylon Fibreglass
	Number of Contacts 11
	Number of Rows 1
	Orientation Vertical
	Shrouded/Unshrouded Shrouded
	Mount Type Board
	Connector System Wire-to-Board
	Contact Plating Tin Plated
	Contact Material Brass
	Termination Type Solder
	Minimum Operating Temperature -55°C
	Row Pitch 3.96mm
	Maximum Operating Temperature 105°C
	Tail Pin Length 3.62mm
	Standards/Approvals 2016, China RoHS 2 Directive MIIT Order No 32, EU ELV Directive 2000/53/EC, EU RoHS Directive 2011/65/EU, UL 94V-2, VDE Certificate
	Voltage 60 V

Datasheet - 1-1744427-1

COO (Country of Origin):: CN

The TE Connectivity PCB Mount Header is meticulously designed for vertical wire-to-board connections, boasting an efficient 11-position configuration that enhances connectivity and ensures robust electrical performance. With a focus on economy power applications, this partially shrouded connector exhibits superior reliability and durability whilst maintaining a compact form factor. Built from high-quality materials, it supports operating voltages of up to 600 VAC, making it suitable for various industrial environments. The connector's unique locking mechanism provides stability and ease of use during mating operations, ultimately promoting a positive user experience and simplified assembly process. Its versatility across different applications makes it an ideal choice for engineers seeking a dependable and efficient wiring solution.

Designed for vertical PCB mount orientation

Utilizes a rectangular connector shape for efficient space utilization

Features a natural color body for compatibility with various circuit designs

Constructed from durable nylon GF material for enhanced longevity

Incorporates a unique locking tab for secure mating retention

Supports a wide operating temperature range for versatility in harsh environments

Facilitates through-hole soldering for reliable PCB termination

Offers polarization alignment to ensure correct mating every time

TE Connectivity Economy Power Series Vertical Board PCB Header, 11 Contact(s), 3.96 mm Pitch, 1 Row, Shrouded
