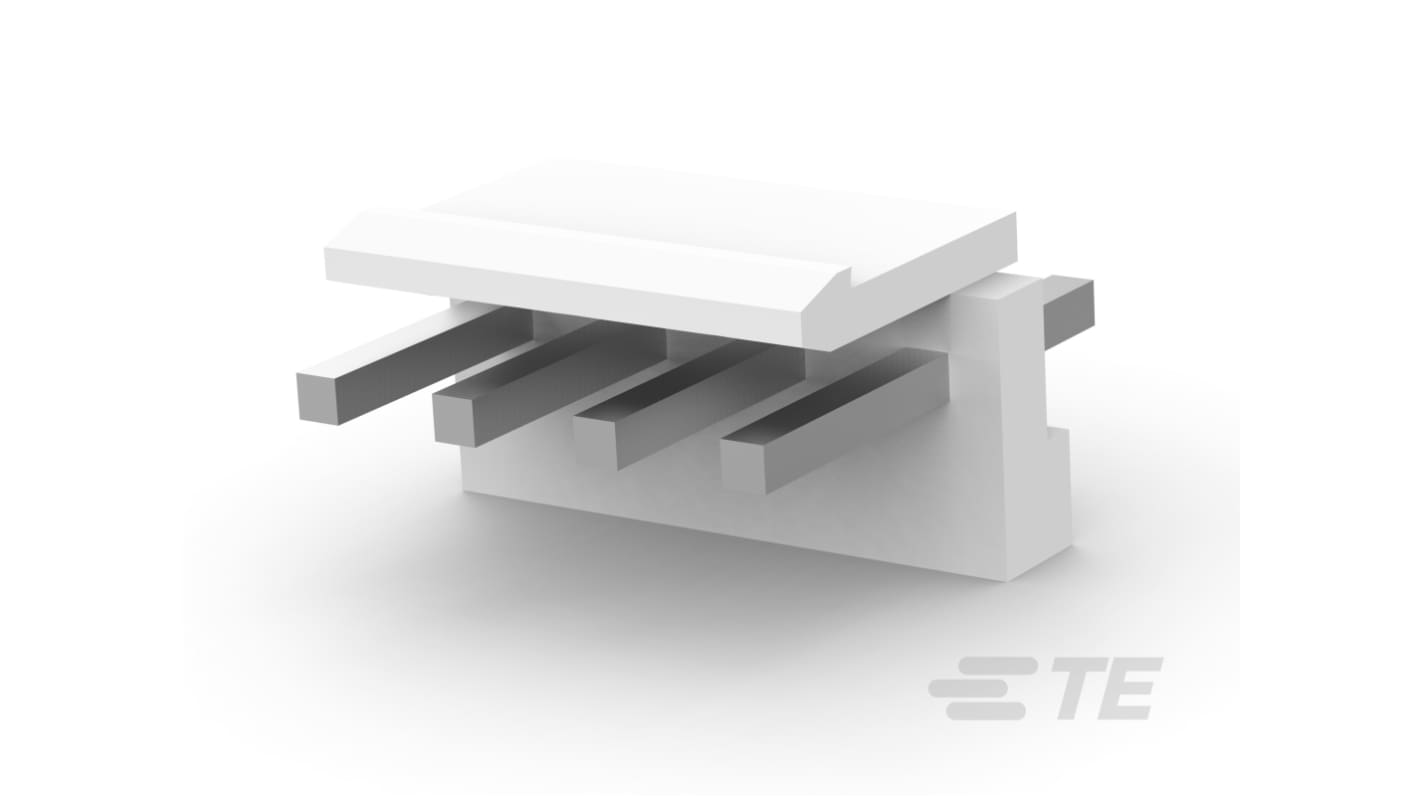

TE Connectivity Economy Power Series Vertical Board PCB Header, 4 Contact(s), 3.96 mm Pitch, 1 Row(s), Shrouded
- RS Stock No.:
- 504-636
- Mfr. Part No.:
- 1-1123723-4
- Brand:
- TE Connectivity
Subtotal (1 bag of 1000 units)*
£165.18
(exc. VAT)
£198.22
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 08 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Bag(s) | Per Bag | Per unit* |
|---|---|---|
| 1 + | £165.18 | £0.165 |
*price indicative
- RS Stock No.:
- 504-636
- Mfr. Part No.:
- 1-1123723-4
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Product Type | PCB Header | |
| Series | Economy Power | |
| Pitch | 3.96mm | |
| Current | 8A | |
| Housing Material | Fibreglass Reinforced Polybutylene Terephthalate | |
| Number of Contacts | 4 | |
| Number of Rows | 1 | |
| Orientation | Vertical | |
| Shrouded/Unshrouded | Shrouded | |
| Connector System | Wire-to-Board | |
| Mount Type | Board | |
| Contact Plating | Tin Plated | |
| Contact Material | Brass | |
| Row Pitch | 3.96mm | |
| Termination Type | Solder | |
| Minimum Operating Temperature | 30°C | |
| Tail Pin Length | 3.7mm | |
| Maximum Operating Temperature | 105°C | |
| Standards/Approvals | 2016, China RoHS 2 Directive MIIT Order No 32, EU ELV Directive 2000/53/EC Compliant, EU RoHS Directive 2011/65/EU Compliant, UL 94V-0, UL Rating Recognised | |
| Mating Pin Length | 7.7mm | |
| Voltage | 250 V | |
| Distrelec Product Id | 304-52-343 | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Product Type PCB Header | ||
Series Economy Power | ||
Pitch 3.96mm | ||
Current 8A | ||
Housing Material Fibreglass Reinforced Polybutylene Terephthalate | ||
Number of Contacts 4 | ||
Number of Rows 1 | ||
Orientation Vertical | ||
Shrouded/Unshrouded Shrouded | ||
Connector System Wire-to-Board | ||
Mount Type Board | ||
Contact Plating Tin Plated | ||
Contact Material Brass | ||
Row Pitch 3.96mm | ||
Termination Type Solder | ||
Minimum Operating Temperature 30°C | ||
Tail Pin Length 3.7mm | ||
Maximum Operating Temperature 105°C | ||
Standards/Approvals 2016, China RoHS 2 Directive MIIT Order No 32, EU ELV Directive 2000/53/EC Compliant, EU RoHS Directive 2011/65/EU Compliant, UL 94V-0, UL Rating Recognised | ||
Mating Pin Length 7.7mm | ||
Voltage 250 V | ||
Distrelec Product Id 304-52-343 | ||
- COO (Country of Origin):
- CN
The TE Connectivity PCB Mount Header offers a seamless connection between wires and printed circuit boards in a compact design. Specifically engineered for vertical orientation, this connector ensures an efficient wire-to-board interface that supports up to four positions. The partially shrouded design protects sensitive components while simplifying assembly and maintenance. Built to withstand operational voltages up to 250 VDC, it is well-suited for demanding power applications. Its robust construction, featuring high-quality materials like PBT GF for housing and brass for contact bases, guarantees durability and reliability in various environments. With attention to thermal performance, the connector can operate within a temperature range from -30 to 105 degrees Celsius, making it versatile for a wide array of applications.
Designed for efficient vertical orientation optimising space on PCBs
Partially shrouded structure enhances component protection during operation
High quality brass contacts ensure durability and a reliable electrical connection
Compatible with wave soldering processes which simplifies assembly
Utilises a locking tab for secure mating preventing accidental disconnections
Constructed from halogen free materials suitable for environmentally conscious designs
Supports quick and easy alignment to aid installation and maintenance
