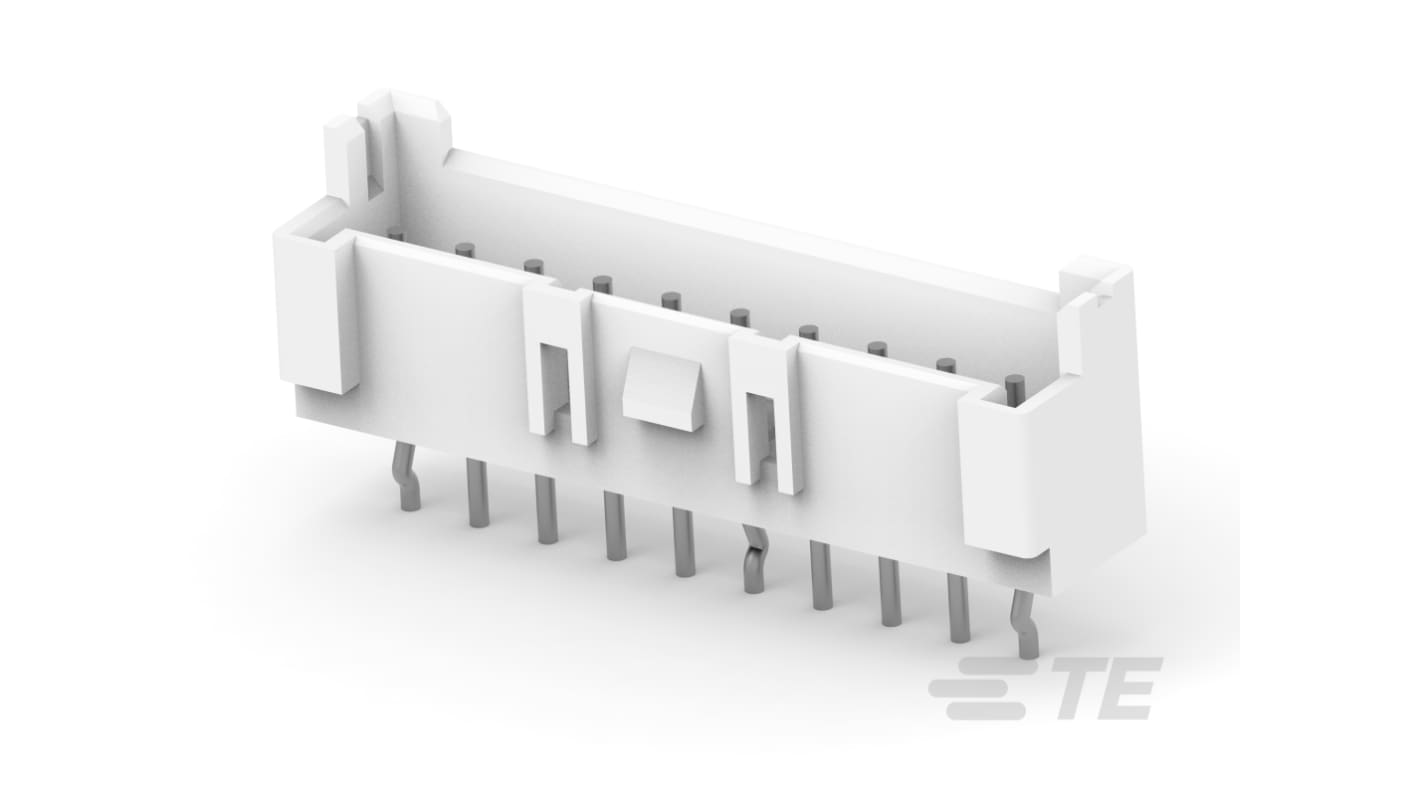

TE Connectivity Economy Power 2.5 Series Vertical PCB PCB Header, 10 Contact(s), 2.5 mm Pitch, 1 Row(s), Shrouded
- RS Stock No.:
- 475-270
- Mfr. Part No.:
- 1-2132415-0
- Brand:
- TE Connectivity
Subtotal (1 bag of 500 units)*
£172.46
(exc. VAT)
£206.95
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 01 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Bag(s) | Per Bag | Per unit* |
|---|---|---|
| 1 + | £172.46 | £0.345 |
*price indicative
- RS Stock No.:
- 475-270
- Mfr. Part No.:
- 1-2132415-0
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Series | Economy Power 2.5 | |
| Product Type | PCB Header | |
| Current | 4.2A | |
| Pitch | 2.5mm | |
| Housing Material | Polybutylene Terephthalate | |
| Number of Contacts | 10 | |
| Number of Rows | 1 | |
| Orientation | Vertical | |
| Shrouded/Unshrouded | Shrouded | |
| Connector System | Wire-to-Board | |
| Mount Type | PCB | |
| Contact Material | Brass | |
| Contact Plating | Tin Plated | |
| Row Pitch | 2.5mm | |
| Minimum Operating Temperature | -55°C | |
| Termination Type | Solder | |
| Maximum Operating Temperature | 105°C | |
| Tail Pin Length | 3.4mm | |
| Standards/Approvals | China RoHS 2, EU ELV, EU RoHS, UL 94V-0, UL Recognised | |
| Voltage | 250 V | |
| Distrelec Product Id | 304-57-953 | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Series Economy Power 2.5 | ||
Product Type PCB Header | ||
Current 4.2A | ||
Pitch 2.5mm | ||
Housing Material Polybutylene Terephthalate | ||
Number of Contacts 10 | ||
Number of Rows 1 | ||
Orientation Vertical | ||
Shrouded/Unshrouded Shrouded | ||
Connector System Wire-to-Board | ||
Mount Type PCB | ||
Contact Material Brass | ||
Contact Plating Tin Plated | ||
Row Pitch 2.5mm | ||
Minimum Operating Temperature -55°C | ||
Termination Type Solder | ||
Maximum Operating Temperature 105°C | ||
Tail Pin Length 3.4mm | ||
Standards/Approvals China RoHS 2, EU ELV, EU RoHS, UL 94V-0, UL Recognised | ||
Voltage 250 V | ||
Distrelec Product Id 304-57-953 | ||
- COO (Country of Origin):
- CN
The TE Connectivity PCB Mount Header is designed for versatility in wire-to-board applications, featuring a vertical orientation and a robust construction tailored for efficiency. With a capacity for 10 positions and a compact design that ensures a 2.5 mm centreline, this connector not only streamlines your circuit layout but also enhances reliability. Ideal for Economy Power 2.5 systems, it showcases superior functionality with fully shrouded contacts that provide maximum protection and ease of use. Its durable materials, including a PBT housing, ensure that it can withstand operational stresses, making it a dependable choice for engineers looking to optimise their electronic designs.
Facilitates seamless connection in PCB applications
Offers an innovative locking tab to ensure secure mating
Features a natural colour finish to blend seamlessly with most PCB designs
Utilises an inline contact layout for efficient signal flow
Enables easy integration with a through-hole soldering method
Constructed with kinked legs for enhanced PCB retention
