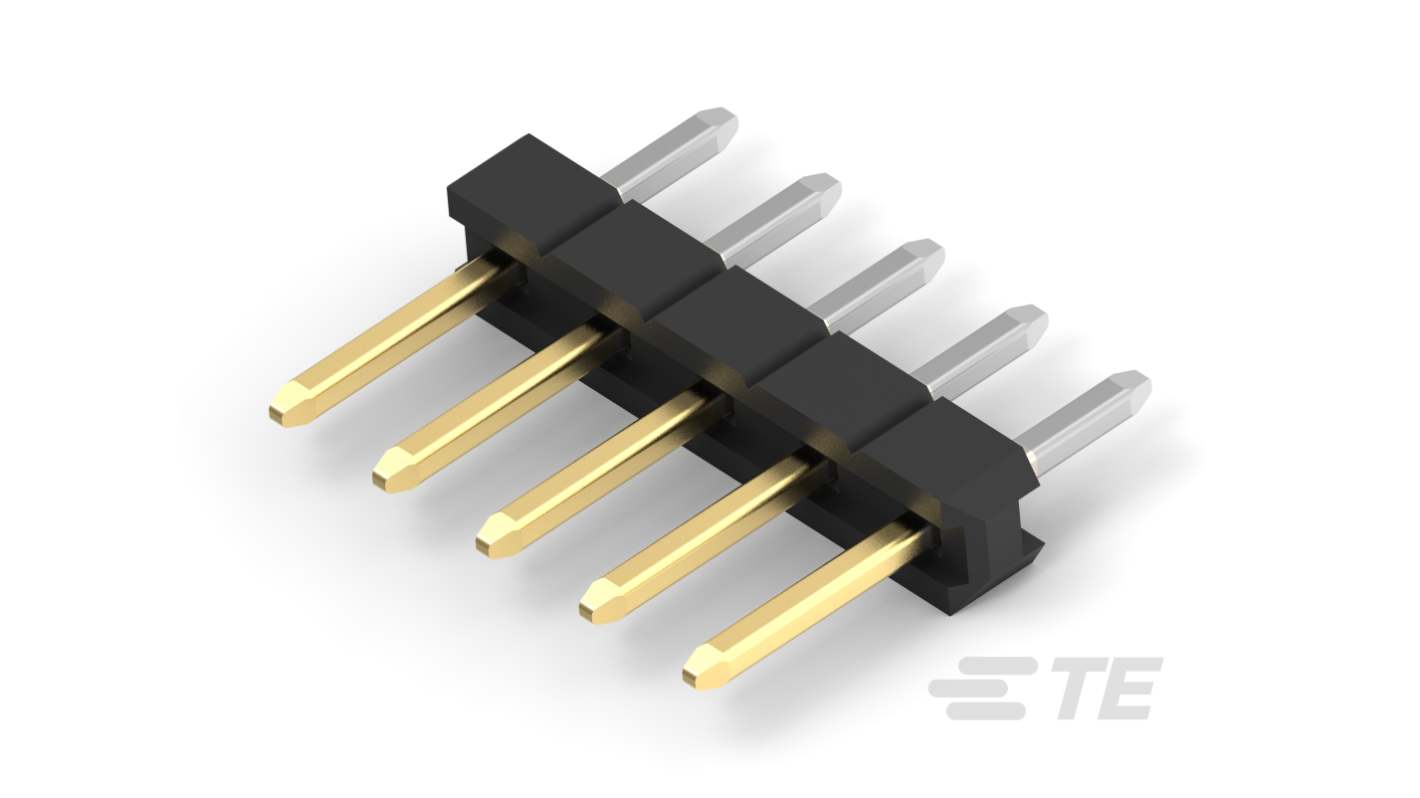

TE Connectivity AMPMODU Series Vertical PCB PCB Header, 5 Contact(s), 2 mm Pitch, 1 Row(s), Unshrouded
- RS Stock No.:
- 474-916
- Mfr. Part No.:
- 2355184-5
- Brand:
- TE Connectivity
Subtotal (1 tube of 174 units)*
£191.91
(exc. VAT)
£230.29
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 12 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 + | £191.91 | £1.103 |
*price indicative
- RS Stock No.:
- 474-916
- Mfr. Part No.:
- 2355184-5
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Series | AMPMODU | |
| Product Type | PCB Header | |
| Pitch | 2mm | |
| Current | 2A | |
| Housing Material | Polyamide Fibreglass | |
| Number of Contacts | 5 | |
| Number of Rows | 1 | |
| Orientation | Vertical | |
| Shrouded/Unshrouded | Unshrouded | |
| Mount Type | PCB | |
| Connector System | Board-to-Board | |
| Contact Material | Brass | |
| Contact Plating | Gold | |
| Termination Type | Solder | |
| Minimum Operating Temperature | -40°C | |
| Row Pitch | 2mm | |
| Maximum Operating Temperature | 125°C | |
| Tail Pin Length | 2.8mm | |
| Standards/Approvals | China RoHS 2, EU ELV, EU REACH, EU RoHS, UL 94V-0, UL E28476 | |
| Mating Pin Length | 4mm | |
| Voltage | 125 V | |
| Distrelec Product Id | 304-53-909 | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Series AMPMODU | ||
Product Type PCB Header | ||
Pitch 2mm | ||
Current 2A | ||
Housing Material Polyamide Fibreglass | ||
Number of Contacts 5 | ||
Number of Rows 1 | ||
Orientation Vertical | ||
Shrouded/Unshrouded Unshrouded | ||
Mount Type PCB | ||
Connector System Board-to-Board | ||
Contact Material Brass | ||
Contact Plating Gold | ||
Termination Type Solder | ||
Minimum Operating Temperature -40°C | ||
Row Pitch 2mm | ||
Maximum Operating Temperature 125°C | ||
Tail Pin Length 2.8mm | ||
Standards/Approvals China RoHS 2, EU ELV, EU REACH, EU RoHS, UL 94V-0, UL E28476 | ||
Mating Pin Length 4mm | ||
Voltage 125 V | ||
Distrelec Product Id 304-53-909 | ||
- COO (Country of Origin):
- CN
The TE Connectivity PCB Mount Header is designed to deliver reliable electrical connections in compact electronic assemblies. With a vertical orientation and a 5-position layout, this connector provides an efficient solution for board-to-board applications, ensuring optimal signal integrity. Constructed from high-quality thermoplastic materials, it features breakaway capabilities for easy integration into various designs. The gold plating on mating areas enhances conductivity, making it perfect for demanding environments. This connector supports a range of operating conditions, showcasing its versatility for high-performance applications. Its thoughtful design includes features tailored for seamless soldering and durability in circuit board assemblies, solidifying its place in the toolkit of modern electronic engineers.
Optimised for board to board configurations to streamline interconnect designs
Breakaway design facilitates easy removal while maintaining secure connections
High quality thermoplastic housing ensures resilience against rugged operating conditions
Gold plating on contact areas enhances performance and extends service life
Compact design helps save valuable space on densely populated circuit boards
Vertical orientation provides a neat and efficient layout for assembly
Designed to withstand a broad operating temperature range ensuring reliability
Suitable for high voltage applications contributing to diverse product uses
