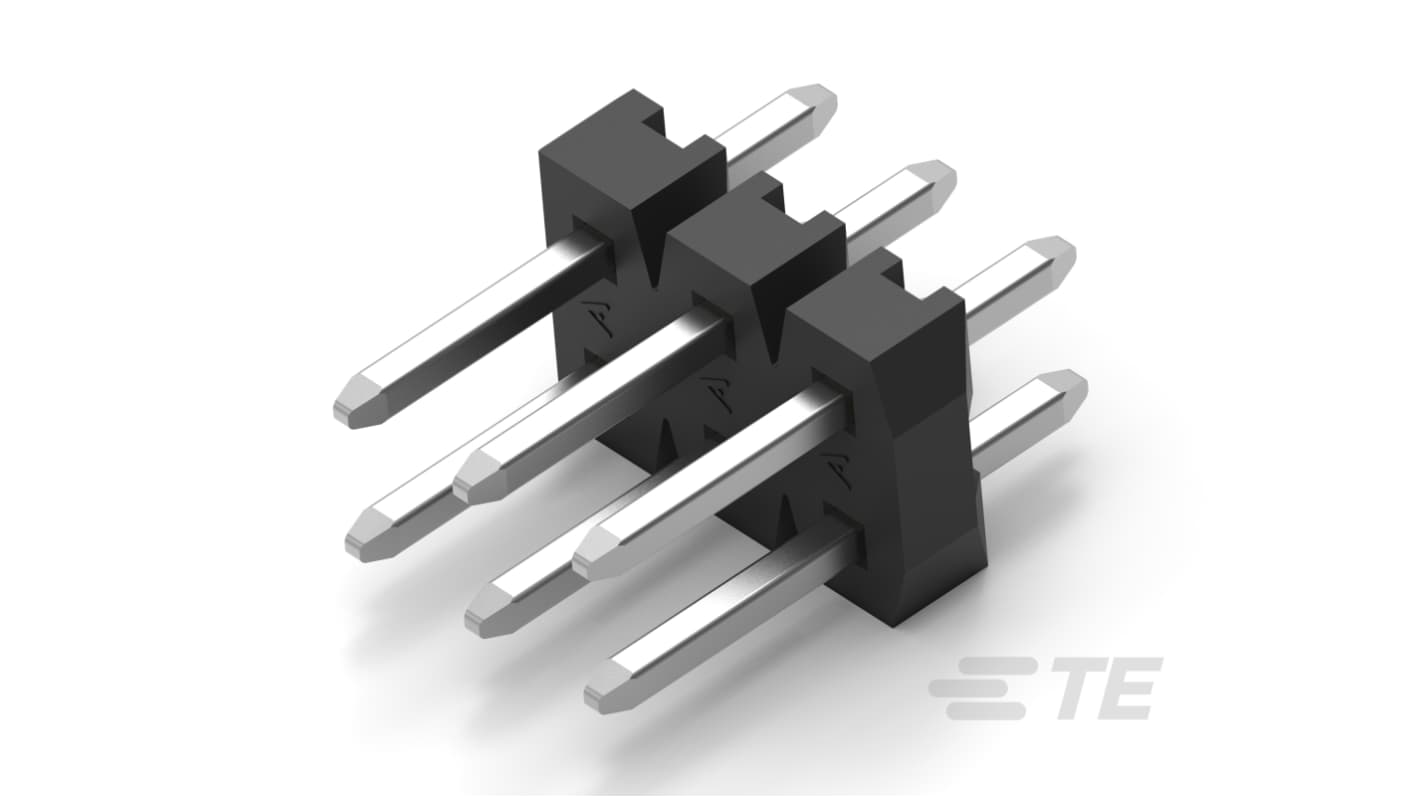

TE Connectivity AMPMODU Series Vertical PCB PCB Header, 8 Contact(s), 2 mm Pitch, 2 Row(s), Unshrouded
- RS Stock No.:
- 476-754
- Mfr. Part No.:
- 2842127-4
- Brand:
- TE Connectivity
Subtotal (1 tube of 216 units)*
£223.50
(exc. VAT)
£268.20
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 09 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 + | £223.50 | £1.035 |
*price indicative
- RS Stock No.:
- 476-754
- Mfr. Part No.:
- 2842127-4
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Product Type | PCB Header | |
| Series | AMPMODU | |
| Pitch | 2mm | |
| Current | 2A | |
| Number of Contacts | 8 | |
| Housing Material | Polyamide Fibreglass | |
| Number of Rows | 2 | |
| Orientation | Vertical | |
| Shrouded/Unshrouded | Unshrouded | |
| Connector System | Board-to-Board | |
| Mount Type | PCB | |
| Contact Plating | Gold | |
| Contact Material | Brass | |
| Minimum Operating Temperature | -40°C | |
| Row Pitch | 2mm | |
| Termination Type | Solder | |
| Tail Pin Length | 2.8mm | |
| Maximum Operating Temperature | 125°C | |
| Mating Pin Length | 4mm | |
| Standards/Approvals | UL 94V-0, UL Recognised | |
| Voltage | 125 V | |
| Distrelec Product Id | 304-53-953 | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Product Type PCB Header | ||
Series AMPMODU | ||
Pitch 2mm | ||
Current 2A | ||
Number of Contacts 8 | ||
Housing Material Polyamide Fibreglass | ||
Number of Rows 2 | ||
Orientation Vertical | ||
Shrouded/Unshrouded Unshrouded | ||
Connector System Board-to-Board | ||
Mount Type PCB | ||
Contact Plating Gold | ||
Contact Material Brass | ||
Minimum Operating Temperature -40°C | ||
Row Pitch 2mm | ||
Termination Type Solder | ||
Tail Pin Length 2.8mm | ||
Maximum Operating Temperature 125°C | ||
Mating Pin Length 4mm | ||
Standards/Approvals UL 94V-0, UL Recognised | ||
Voltage 125 V | ||
Distrelec Product Id 304-53-953 | ||
- COO (Country of Origin):
- CN
The TE Connectivity PCB Mount Header is a sophisticated solution designed for seamless board-to-board connections in your electronic applications. Constructed with a vertical orientation and a breakaway design, it effortlessly accommodates multi-row configurations, making it ideal for complex circuitry. The 8-position connector features a precise 2 mm centerline spacing, ensuring compatibility with a variety of PCB designs. Crafted for both durability and performance, this connector assembly utilizes high-quality materials, including gold plating for superior conductivity.
Supports board-to-board connectivity with exceptional reliability
Breakaway design enhances flexibility in circuit configurations
Constructed from high-performance materials for longevity
Offers a standard connector profile to fit various applications
Designed to withstand high operating voltages for demanding setups
