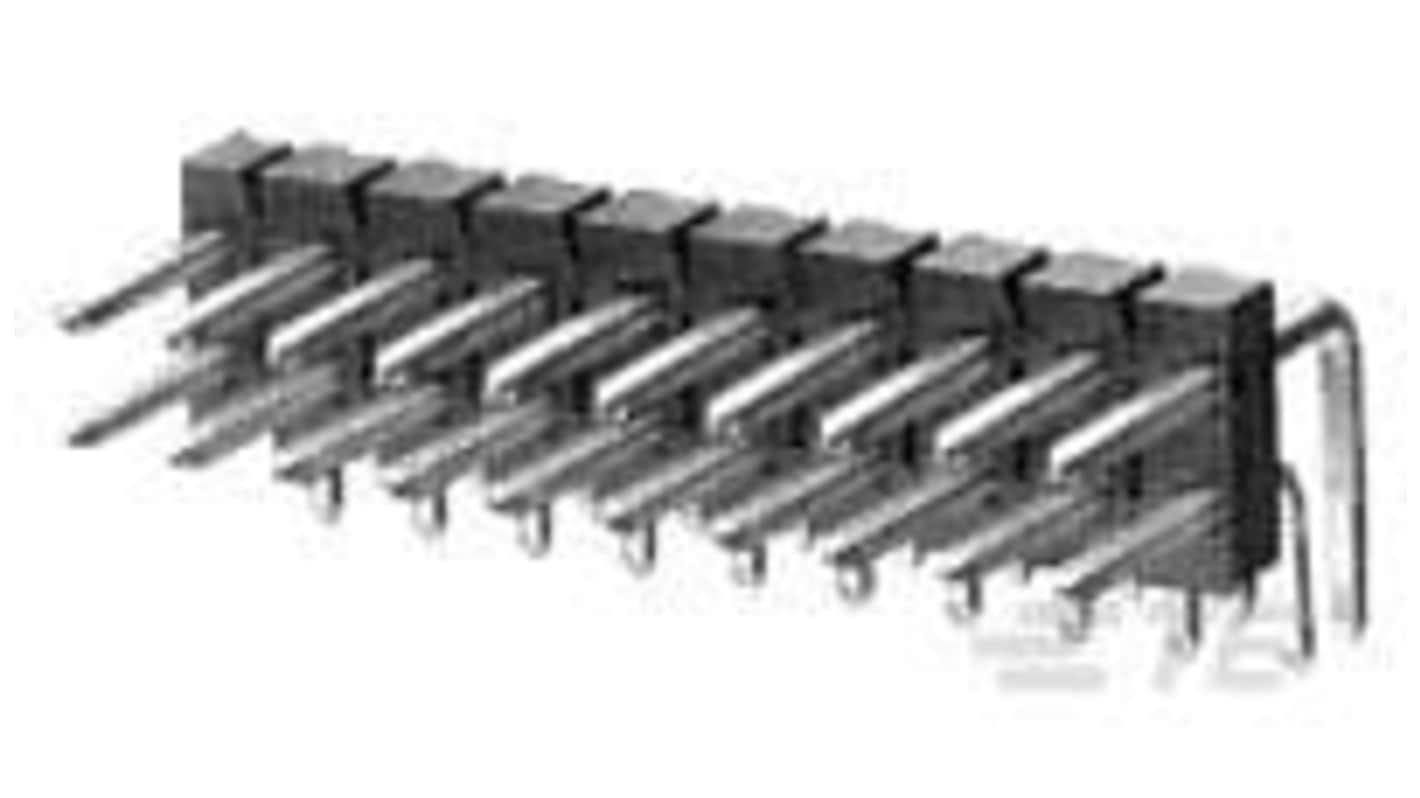

TE Connectivity AMPMODU Series Right Angle Board PCB Header, 26 Contact(s), 2.54 mm Pitch, 2 Row(s), Unshrouded
- RS Stock No.:
- 472-841
- Mfr. Part No.:
- 1-825457-3
- Brand:
- TE Connectivity
Subtotal (1 pack of 80 units)*
£171.58
(exc. VAT)
£205.90
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 08 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £171.58 | £2.145 |
*price indicative
- RS Stock No.:
- 472-841
- Mfr. Part No.:
- 1-825457-3
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Series | AMPMODU | |
| Product Type | PCB Header | |
| Pitch | 2.54mm | |
| Current | 5A | |
| Housing Material | Polybutylene Terephthalate | |
| Number of Contacts | 26 | |
| Number of Rows | 2 | |
| Orientation | Right Angle | |
| Shrouded/Unshrouded | Unshrouded | |
| Mount Type | Board | |
| Connector System | Board-to-Board | |
| Contact Material | Brass | |
| Contact Plating | Gold Flash over Nickel | |
| Minimum Operating Temperature | 65°C | |
| Termination Type | Solder | |
| Row Pitch | 2.54mm | |
| Maximum Operating Temperature | 105°C | |
| Tail Pin Length | 3.2mm | |
| Standards/Approvals | RoHS | |
| Voltage | 750 Vrms | |
| Distrelec Product Id | 304-53-556 | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Series AMPMODU | ||
Product Type PCB Header | ||
Pitch 2.54mm | ||
Current 5A | ||
Housing Material Polybutylene Terephthalate | ||
Number of Contacts 26 | ||
Number of Rows 2 | ||
Orientation Right Angle | ||
Shrouded/Unshrouded Unshrouded | ||
Mount Type Board | ||
Connector System Board-to-Board | ||
Contact Material Brass | ||
Contact Plating Gold Flash over Nickel | ||
Minimum Operating Temperature 65°C | ||
Termination Type Solder | ||
Row Pitch 2.54mm | ||
Maximum Operating Temperature 105°C | ||
Tail Pin Length 3.2mm | ||
Standards/Approvals RoHS | ||
Voltage 750 Vrms | ||
Distrelec Product Id 304-53-556 | ||
- COO (Country of Origin):
- PL
The TE Connectivity PCB Mount Header is meticulously designed for reliable board-to-board connections in compact spaces. With a right-angle orientation and a sturdy 26-position setup, it ensures a secure fit for various applications. The breakaway feature allows for easy assembly, making it an essential component in modern electronic design. Suitable for environments that demand durability, this header is crafted from high-quality materials that withstand a range of operating temperatures. Ideal for signal circuit applications, it is particularly useful in instances where space-saving solutions are critical, providing versatility across multiple projects and industries.
Utilises a standard 2.54 mm centreline for compatibility with various PCB layouts
Designed with breakaway functionality to facilitate customised configurations
Housed in robust PBT material to enhance strength and thermal stability
Equipped with nickel underplating for improved contact reliability
Features a maximum current rating of 5 A for dependable performance
Offers a dielectric withstand voltage of up to 750 Vrms for increased safety
Compliant with multiple industry standards for assurance of quality and reliability
Optimised for wave soldering processes to simplify assembly
Packaging quantity of 150 ensures ample supply for large-scale projects
