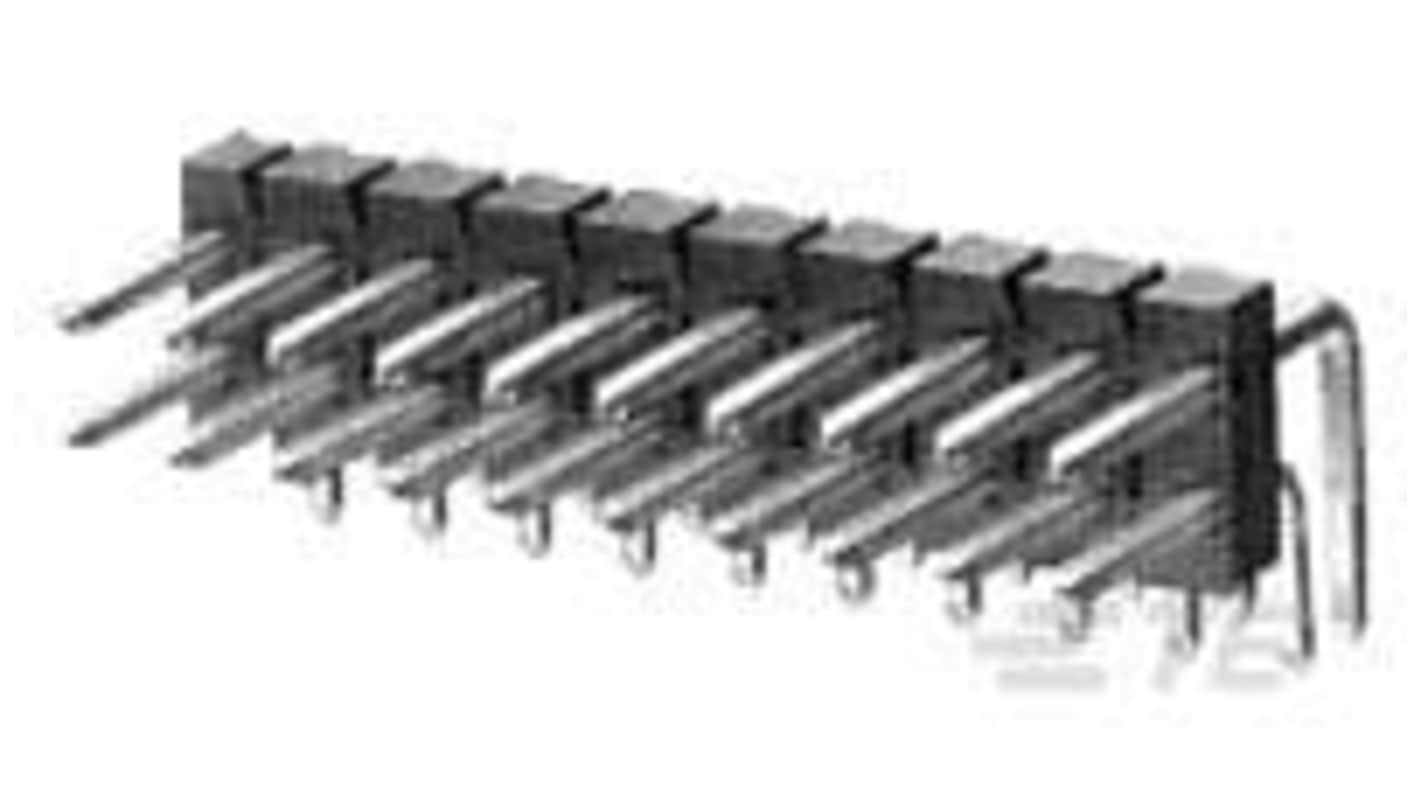

TE Connectivity AMPMODU Series Right Angle Board Mount PCB Header, 20 Contact(s), 2.54mm Pitch, 2 Row(s), Unshrouded
- RS Stock No.:
- 473-230
- Mfr. Part No.:
- 1-826664-0
- Brand:
- TE Connectivity
Subtotal (1 box of 95 units)*
£170.28
(exc. VAT)
£204.34
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 01 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es) | Per Box | Per unit* |
---|---|---|
1 + | £170.28 | £1.792 |
*price indicative
- RS Stock No.:
- 473-230
- Mfr. Part No.:
- 1-826664-0
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | TE Connectivity | |
Series | AMPMODU | |
Pitch | 2.54mm | |
Number of Contacts | 20 | |
Number of Rows | 2 | |
Body Orientation | Right Angle | |
Shrouded/Unshrouded | Unshrouded | |
Mounting Type | Board Mount | |
Select all | ||
---|---|---|
Brand TE Connectivity | ||
Series AMPMODU | ||
Pitch 2.54mm | ||
Number of Contacts 20 | ||
Number of Rows 2 | ||
Body Orientation Right Angle | ||
Shrouded/Unshrouded Unshrouded | ||
Mounting Type Board Mount | ||
- COO (Country of Origin):
- PL
The TE Connectivity PCB Mount Header is designed for reliable connections in space-constrained environments, integrating seamlessly into board-to-board configurations. This innovative solution features a right-angle orientation, making it ideal for efficient layouts and maintaining signal integrity. With 20 positions housed within a breakaway header, it ensures flexible configurations while accommodating a standard 2.54 mm centreline. Engineered from durable materials, this header provides robust performance against environmental factors, ensuring longevity and dependability in a variety of applications. The green housing not only enhances visibility but also conveys a professional look that suits modern electronic designs. Experience enhanced connectivity and optimal performance with this expertly crafted component.
Designed for easy installation with a through-hole solder termination method
Breakaway design allows for adaptable configurations based on user needs
Manufactured from PBT housing material for superior durability
Supports a wide operating temperature range, ensuring versatility in diverse applications
Equipped with nickel underplating for enhanced contact performance
Offers a compact design to optimise board space and improve layout efficiency
Compliant with EU RoHS and ELV directives, emphasising environmentally responsible manufacturing
Breakaway design allows for adaptable configurations based on user needs
Manufactured from PBT housing material for superior durability
Supports a wide operating temperature range, ensuring versatility in diverse applications
Equipped with nickel underplating for enhanced contact performance
Offers a compact design to optimise board space and improve layout efficiency
Compliant with EU RoHS and ELV directives, emphasising environmentally responsible manufacturing
