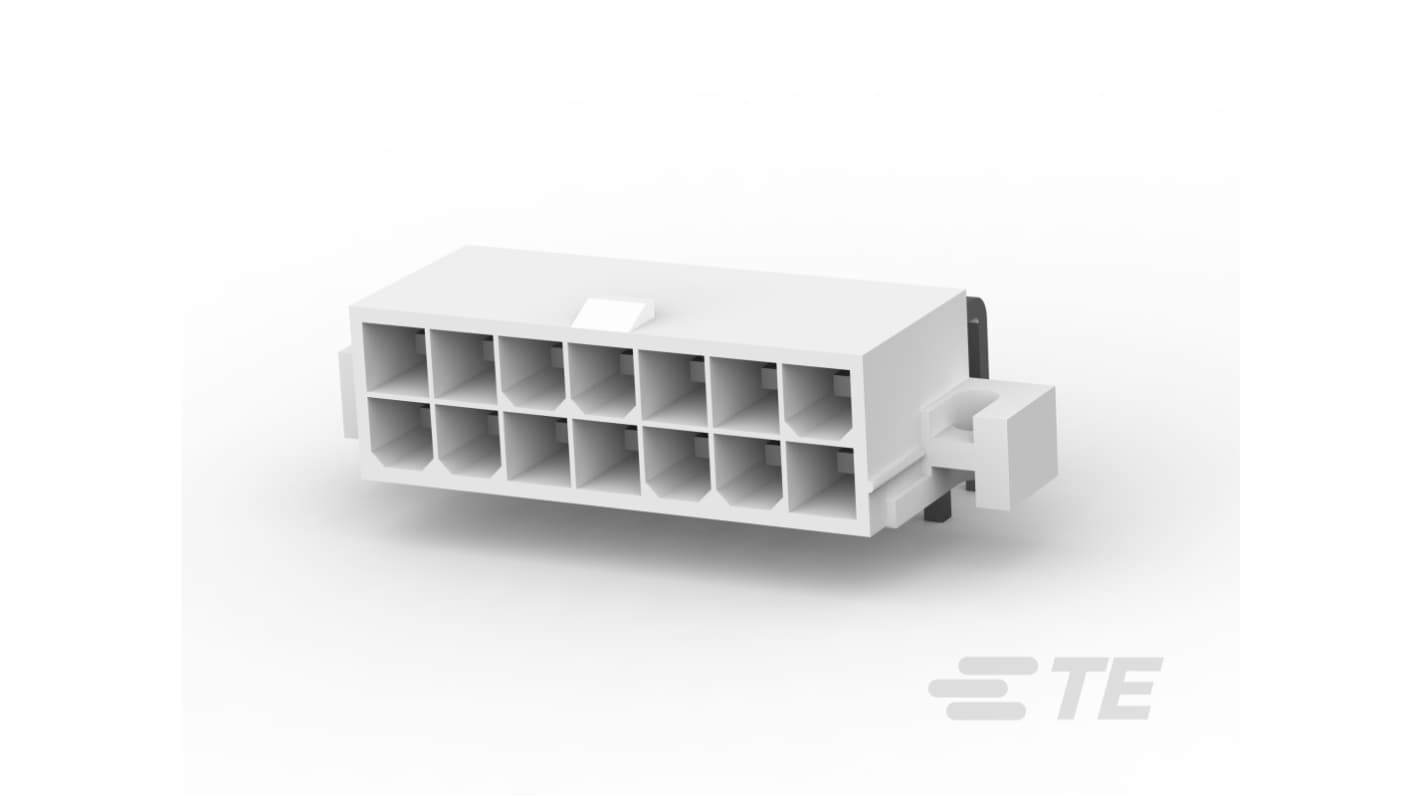

TE Connectivity VAL-U-LOK Series Right Angle Board PCB Header, 14 Contact(s), 4.2 mm Pitch, 2 Row(s), Shrouded
- RS Stock No.:
- 471-726
- Mfr. Part No.:
- 1-1586043-4
- Brand:
- TE Connectivity
Subtotal (1 tray of 180 units)*
£199.20
(exc. VAT)
£239.04
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 09 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tray(s) | Per Tray | Per unit* |
|---|---|---|
| 1 + | £199.20 | £1.107 |
*price indicative
- RS Stock No.:
- 471-726
- Mfr. Part No.:
- 1-1586043-4
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Series | VAL-U-LOK | |
| Product Type | PCB Header | |
| Current | 9A | |
| Pitch | 4.2mm | |
| Number of Contacts | 14 | |
| Housing Material | Nylon | |
| Number of Rows | 2 | |
| Orientation | Right Angle | |
| Shrouded/Unshrouded | Shrouded | |
| Connector System | Wire-to-Wire | |
| Mount Type | Board | |
| Contact Plating | Tin | |
| Termination Type | Crimp | |
| Row Pitch | 4.2mm | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 105°C | |
| Standards/Approvals | CSA, RoHS, UL | |
| Voltage | 60 V | |
| Distrelec Product Id | 304-48-204 | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Series VAL-U-LOK | ||
Product Type PCB Header | ||
Current 9A | ||
Pitch 4.2mm | ||
Number of Contacts 14 | ||
Housing Material Nylon | ||
Number of Rows 2 | ||
Orientation Right Angle | ||
Shrouded/Unshrouded Shrouded | ||
Connector System Wire-to-Wire | ||
Mount Type Board | ||
Contact Plating Tin | ||
Termination Type Crimp | ||
Row Pitch 4.2mm | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 105°C | ||
Standards/Approvals CSA, RoHS, UL | ||
Voltage 60 V | ||
Distrelec Product Id 304-48-204 | ||
- COO (Country of Origin):
- CN
The TE Connectivity PCB Mount Header is designed with precision to facilitate seamless wire-to-board connections. Its right-angle orientation and fully shrouded structure ensure reliable and safe electrical performance. Perfectly accommodating 14 positions, it boasts a compact design with a 4.2 mm centerline. The high-grade tin plating offers excellent corrosion resistance while supporting efficient soldering processes. This connector is engineered for versatility, making it an ideal choice for demanding applications in various electronic devices. Its robust construction ensures durability, providing peace of mind in critical operational environments. With compliance to stringent industry standards, this product not only meets but exceeds expectations in performance and reliability.
Rectangular shape enhances space efficiency on PCB layouts
Locking tab design secures connections and prevents accidental disconnections
Nickel underplating provides an added layer of protection against wear and tear
Keyed mating alignment ensures proper orientation during installation
Wave solder capability simplifies the manufacturing process while maintaining high quality
Natural color housing blends with various circuit board aesthetics
Operates effectively in temperature ranges suitable for a broad spectrum of applications
Holds a UL rating, assuring compliance with safety and regulatory standards
