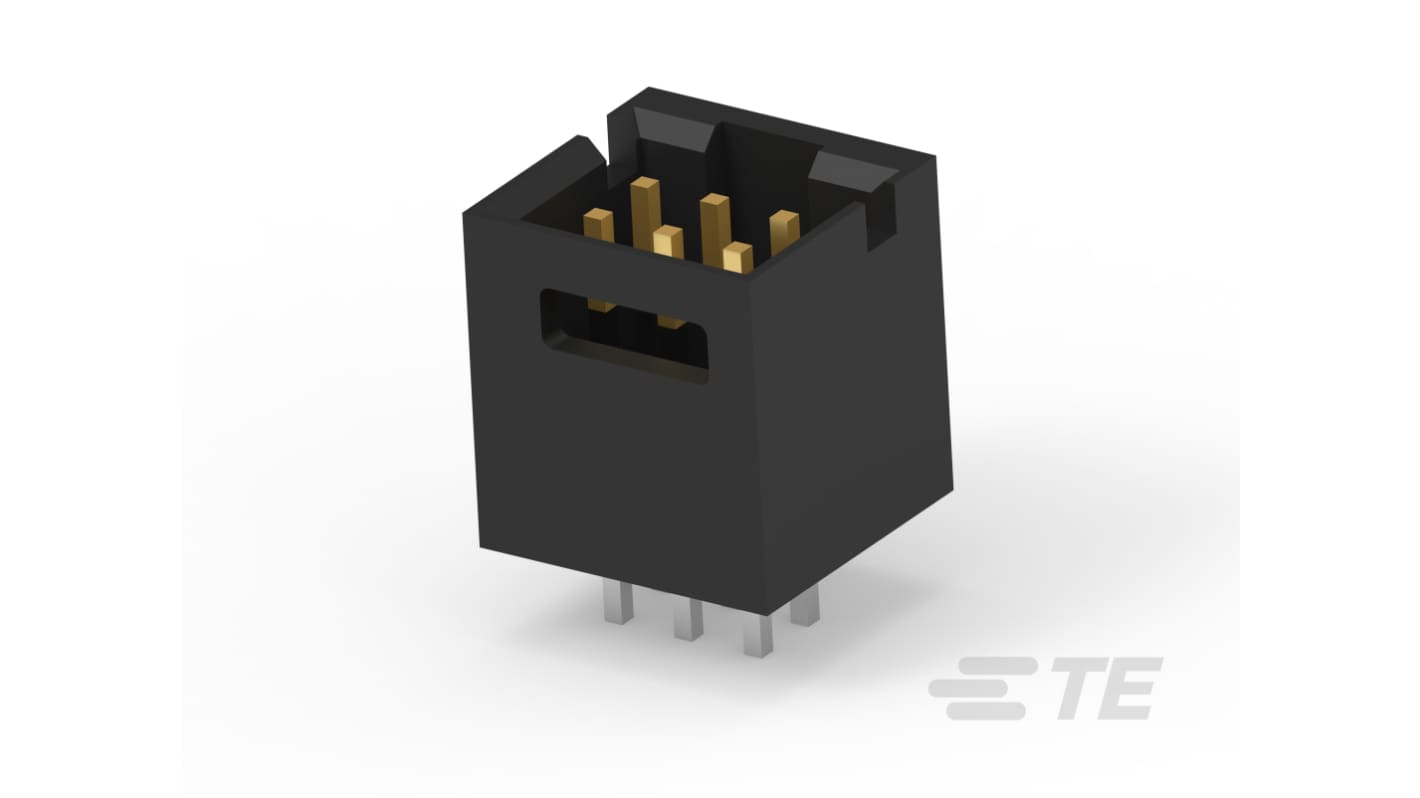

TE Connectivity AMPMODU Series Vertical Board PCB Header, 6 Contact(s), 2.54 mm Pitch, 2 Row(s), Shrouded
- RS Stock No.:
- 470-993
- Mfr. Part No.:
- 103168-1
- Brand:
- TE Connectivity
Subtotal (1 tray of 232 units)*
£330.64
(exc. VAT)
£396.77
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 08 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tray(s) | Per Tray | Per unit* |
|---|---|---|
| 1 + | £330.64 | £1.425 |
*price indicative
- RS Stock No.:
- 470-993
- Mfr. Part No.:
- 103168-1
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Series | AMPMODU | |
| Product Type | PCB Header | |
| Pitch | 2.54mm | |
| Current | 3A | |
| Number of Contacts | 6 | |
| Housing Material | Thermoplastic | |
| Number of Rows | 2 | |
| Orientation | Vertical | |
| Shrouded/Unshrouded | Shrouded | |
| Connector System | Board-to-Board | |
| Mount Type | Board | |
| Contact Plating | Gold | |
| Contact Material | Phosphor Bronze | |
| Termination Type | Solder | |
| Minimum Operating Temperature | 65°C | |
| Row Pitch | 2.54mm | |
| Maximum Operating Temperature | 105°C | |
| Tail Pin Length | 3.18mm | |
| Standards/Approvals | CSA LR7189, UL 94V-0, UL E28476 | |
| Voltage | 750 Vrms | |
| Distrelec Product Id | 304-51-490 | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Series AMPMODU | ||
Product Type PCB Header | ||
Pitch 2.54mm | ||
Current 3A | ||
Number of Contacts 6 | ||
Housing Material Thermoplastic | ||
Number of Rows 2 | ||
Orientation Vertical | ||
Shrouded/Unshrouded Shrouded | ||
Connector System Board-to-Board | ||
Mount Type Board | ||
Contact Plating Gold | ||
Contact Material Phosphor Bronze | ||
Termination Type Solder | ||
Minimum Operating Temperature 65°C | ||
Row Pitch 2.54mm | ||
Maximum Operating Temperature 105°C | ||
Tail Pin Length 3.18mm | ||
Standards/Approvals CSA LR7189, UL 94V-0, UL E28476 | ||
Voltage 750 Vrms | ||
Distrelec Product Id 304-51-490 | ||
Non Compliant
- COO (Country of Origin):
- US
The TE Connectivity PCB mount header offers a robust and reliable solution for vertical, board-to-board connections, bringing together six positions in a fully shrouded design. Crafted with precision, it features a 2.54 mm centreline, ensuring compatibility with a wide range of applications. Designed with gold-plated contacts for superior conductivity, this connector provides secure, solder-based terminations and is engineered to withstand operational conditions typical in electronic environments. Ideal for high-density assemblies, it boasts a compact footprint without compromising mechanical integrity or performance. Its reliable operation under extreme temperatures ensures steadfast performance in mission-critical applications.
Optimised for space saving designs while maintaining performance
Engineered for high reliability in demanding environments
Gold plating ensures excellent electrical conductivity
Fully loaded configuration supports multiple connections
Thermoplastic housing offers enhanced durability
Detent window feature maximises mating retention
Designed for wave solder capability streamlining assembly
