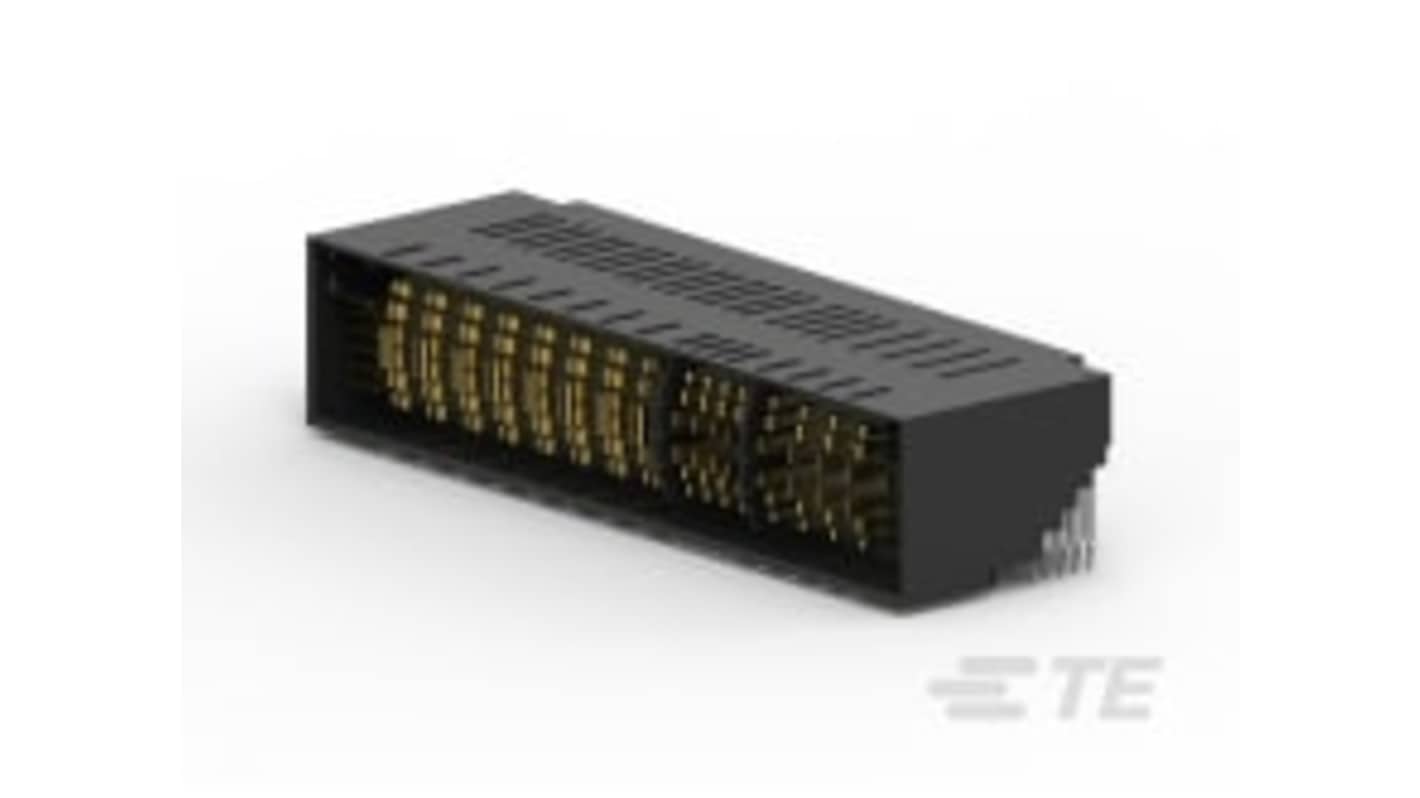

TE Connectivity MULTI-BEAM HD Series Right Angle Board PCB Header, 54 Contact(s), 5 Row(s), Shrouded
- RS Stock No.:
- 467-471
- Mfr. Part No.:
- 2204442-1
- Brand:
- TE Connectivity
Subtotal (1 tray of 3 units)*
£208.96
(exc. VAT)
£250.75
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 29 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tray(s) | Per Tray | Per unit* |
|---|---|---|
| 1 + | £208.96 | £69.653 |
*price indicative
- RS Stock No.:
- 467-471
- Mfr. Part No.:
- 2204442-1
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Product Type | PCB Header | |
| Series | MULTI-BEAM HD | |
| Current | 75A | |
| Housing Material | High Temperature Thermoplastic | |
| Number of Contacts | 54 | |
| Number of Rows | 5 | |
| Orientation | Right Angle | |
| Shrouded/Unshrouded | Shrouded | |
| Mount Type | Board | |
| Connector System | Board-to-Board | |
| Termination Type | Solder | |
| Row Pitch | 6mm | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 125°C | |
| Tail Pin Length | 3.2mm | |
| Standards/Approvals | UL 94 V-0 | |
| Distrelec Product Id | 304-58-454 | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Product Type PCB Header | ||
Series MULTI-BEAM HD | ||
Current 75A | ||
Housing Material High Temperature Thermoplastic | ||
Number of Contacts 54 | ||
Number of Rows 5 | ||
Orientation Right Angle | ||
Shrouded/Unshrouded Shrouded | ||
Mount Type Board | ||
Connector System Board-to-Board | ||
Termination Type Solder | ||
Row Pitch 6mm | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 125°C | ||
Tail Pin Length 3.2mm | ||
Standards/Approvals UL 94 V-0 | ||
Distrelec Product Id 304-58-454 | ||
- COO (Country of Origin):
- CN
The TE Connectivity Rectangular power connector is designed specifically for high-performance applications where reliability and efficiency are paramount. With its 54 positions and versatile board-to-board connectivity, it accommodates various requirements, ensuring a seamless integration into your designs. The connector features a multi-beam design that enhances the contact reliability and reduces the insertion force, making it a preferred choice for engineers demanding a resilient solution. Built from high-temperature thermoplastic, it withstands extreme operating conditions, ensuring long-lasting performance. Whether used in power or signal applications, the connector is engineered to handle substantial current loads and maintain high electrical integrity, catering perfectly to modern connectivity needs.
Impressive contact current rating supports robust applications
Features a fully shrouded header type for added protection
Black housing colour offers a sleek and discreet appearance
Mechanical attachment guarantees secure mounting on the PCB
Low halogen content contributes to environmentally friendly designs
Operating temperature range extends to -40 to 125 °C for diverse applications
Designed for easy integration with press-fit termination methods
