Rohde & Schwarz RTC1002 RTC1000 Series, 70MHz Bench Oscilloscope, 2 Analogue Channels

View all Oscilloscopes

Subtotal (1 unit)*

£959.78

(exc. VAT)

£1,151.74

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • Plus 1 unit(s) shipping from 10 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£959.78

*price indicative

Calibration Options:

presentation
Rohde & Schwarz RTC1002 RTC1000 Series, 70MHz Bench Oscilloscope, 2 Analogue Channels - RS Calibrated
Calibration Type:
RSCAL
RS Stock No.
179-6203

Each

£1,050.46

(exc. VAT)

£1,260.55

(inc. VAT)

presentation
Rohde & Schwarz RTC1002 RTC1000 Series, 70MHz Bench Oscilloscope, 2 Analogue Channels - UKAS Calibrated
Calibration Type:
UKAS
RS Stock No.
179-6204

Each

£1,082.46

(exc. VAT)

£1,298.95

(inc. VAT)

RS Stock No.:
174-2810
Distrelec Article No.:
301-01-691
Mfr. Part No.:
RTC1K-72
Brand:
Rohde & Schwarz
Find similar products by selecting one or more attributes.
Select all

Brand

Rohde & Schwarz

Bandwidth

70MHz

Number of Analogue Channels

2

Oscilloscope Type

Bench

Interface

CAN, IIC, LIN, RS232, RS422, RS485, SPI, UART, USB

Sample Rate Random

2 Gsps

Screen Size

6.5in

Series

RTC1000

Minimum Time Base

1ns/div

Dimensions

285 x 140 x 175mm

Maximum Time Base

100s/div

Power Source

Mains

Vertical Resolution

8 bit, 16 bit

Display Type

VGA Colour

Rise Time

5ns

Plug Type

Type A - North American/Japanese 2-blade, Type B - North American 3-pin

Weight

1.7kg

Minimum Vertical Sensitivity

1mV/div

Digital/Analogue

Digital

Maximum Vertical Sensitivity

10V/div

COO (Country of Origin):
CZ

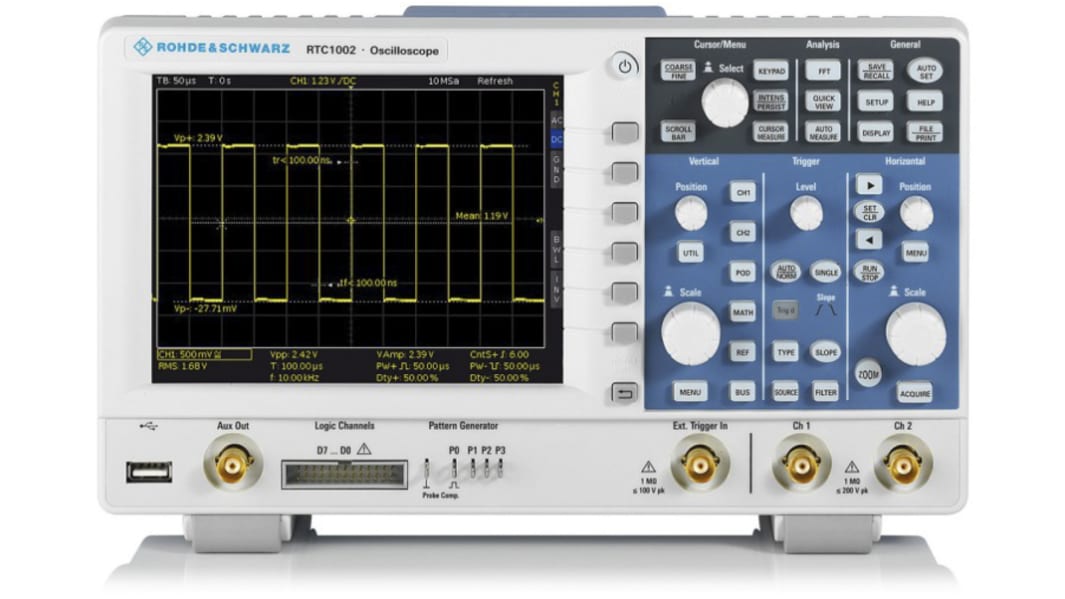

Rohde & Schwarz RTC1000 Series RTC1002 Oscilloscope


The Rohde & Schwarz RTC1000 digital oscilloscope is designed with high vertical sensitivity and can perform multiple functions. It allows a bandwidth of 70MHz, memory depth of 2Mpts and sampling rate of 2Gsa/s. This oscilloscope also has a function generator for different types of signals having frequencies up to 50KHz. It has two channels (MSO) that are optional and adaptable. It allows you to perform voltage measurements on analogue channels with two values simultaneously. This oscilloscope benefits you with different functions such as digital logic, protocol and frequency analysis on a single instrument.

Features and Benefits


• Allows multiple functions with software licence such as bandwidth upgrade and serial bus analysis
• Fanless design for better performance
• Low noise due to 8 bit analogue to digital converters
• Separate RTC-B1 logic probe suitable for all the RTC1000 oscilloscopes
• Optional logical analyser

Applications


• Educational institutes
• Used by service technicians
• R&D troubleshooting
• Production testing
