MPN

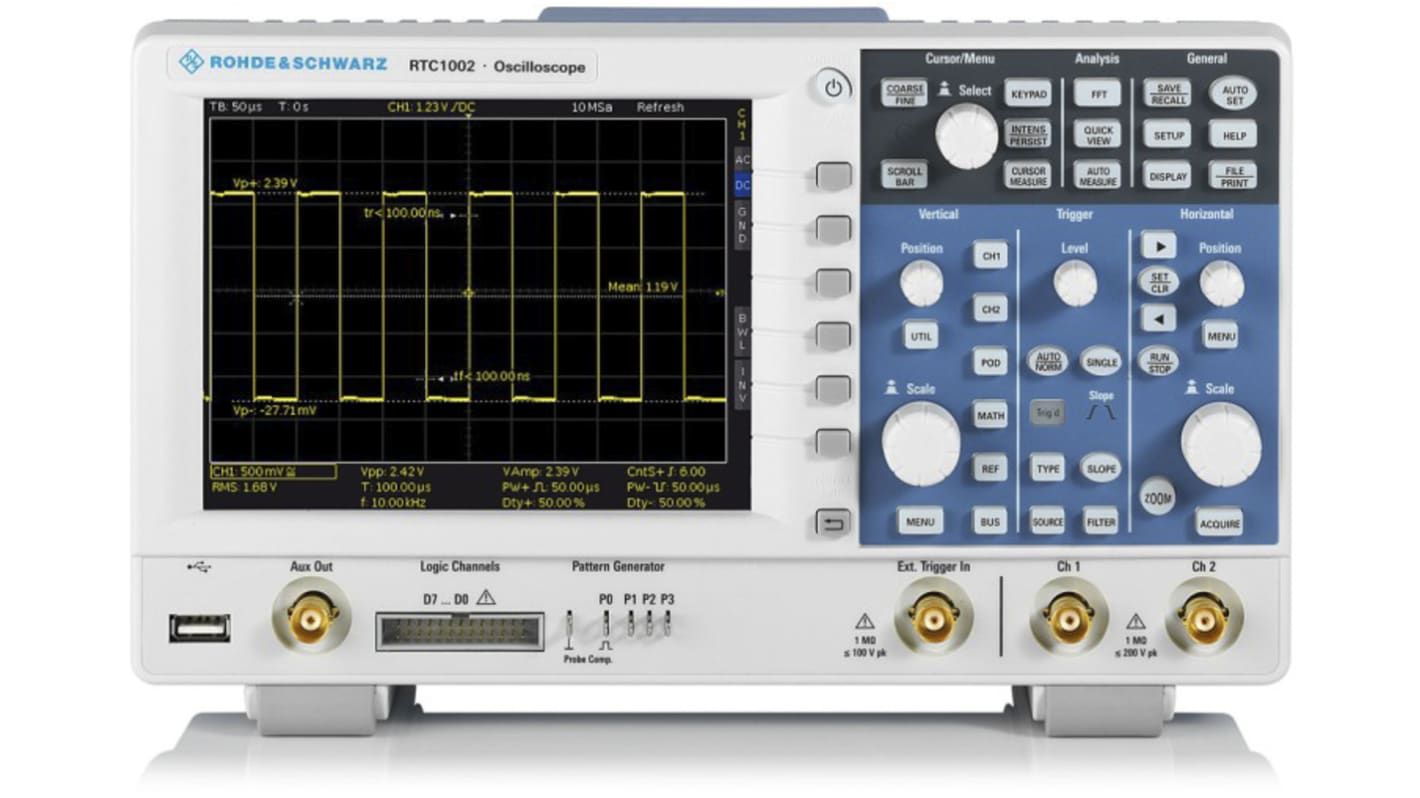

Rohde & Schwarz RTC1002 RTC1000 Series, 50MHz Bench Oscilloscope, 2 Analogue Channels

RS Stock No.:: 174-2797
Distrelec Article No.:: 301-01-689
Mfr. Part No.:: RTC1K-52
Brand:: Rohde & Schwarz

Rohde & Schwarz RTC1002 RTC1000 Series, 50MHz Bench Oscilloscope, 2 Analogue Channels

Subtotal (1 unit)*

£867.18

(exc. VAT)

£1,040.62

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

6 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£867.18

*price indicative

Calibration Options:

Rohde & Schwarz RTC1002 RTC1000 Series, 50MHz Bench Oscilloscope, 2 Analogue Channels - RS Calibrated

Calibration Type:: RSCAL

RS Stock No.: 179-6187

Each

£957.88

(exc. VAT)

£1,149.46

(inc. VAT)

Rohde & Schwarz RTC1002 RTC1000 Series, 50MHz Bench Oscilloscope, 2 Analogue Channels - UKAS Calibrated

Calibration Type:: UKAS

RS Stock No.: 179-6188

Each

£989.88

(exc. VAT)

£1,187.86

(inc. VAT)

RS Stock No.:: 174-2797
Distrelec Article No.:: 301-01-689
Mfr. Part No.:: RTC1K-52
Brand:: Rohde & Schwarz

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Rohde & Schwarz
	Bandwidth	50MHz
	Number of Analogue Channels	2
	Oscilloscope Type	Bench
	Interface	CAN, IIC, LIN, RS232, RS422, RS485, SPI, UART, USB
	Sample Rate Random	2 Gsps
	Screen Size	6.5in
	Series	RTC1000
	Power Source	Mains
	Maximum Vertical Sensitivity	10V/div
	Digital/Analogue	Digital
	Minimum Vertical Sensitivity	1mV/div
	Weight	1.7kg
	Plug Type	Type A - North American/Japanese 2-blade, Type B - North American 3-pin
	Dimensions	285 x 140 x 175mm
	Vertical Resolution	8 bit, 16 bit
	Maximum Time Base	100s/div
	Minimum Time Base	1ns/div
	Display Type	VGA Colour
	Rise Time	7ns

	Select all
	Brand Rohde & Schwarz
	Bandwidth 50MHz
	Number of Analogue Channels 2
	Oscilloscope Type Bench
	Interface CAN, IIC, LIN, RS232, RS422, RS485, SPI, UART, USB
	Sample Rate Random 2 Gsps
	Screen Size 6.5in
	Series RTC1000
	Power Source Mains
	Maximum Vertical Sensitivity 10V/div
	Digital/Analogue Digital
	Minimum Vertical Sensitivity 1mV/div
	Weight 1.7kg
	Plug Type Type A - North American/Japanese 2-blade, Type B - North American 3-pin
	Dimensions 285 x 140 x 175mm
	Vertical Resolution 8 bit, 16 bit
	Maximum Time Base 100s/div
	Minimum Time Base 1ns/div
	Display Type VGA Colour
	Rise Time 7ns

Datasheet

COO (Country of Origin):: CZ

Rohde & Schwarz RTC1000 Series RTC1002 Oscilloscope

The Rohde & Schwarz RTC1000 digital oscilloscope is designed with high vertical sensitivity and can perform multiple functions. It allows a bandwidth of 50MHz, memory depth of 2Mpts and sampling rate of 2Gsa/s. It consists of signal triggering and decoding options for all the types of protocols such as UART, I²C, etc. This makes analysis easy for the embedded developers. This oscilloscope also has a function generator for different types of signals having frequencies up to 50KHz. It allows you to perform voltage measurements on analogue channels with two values simultaneously. It benefits you with different functions such as time domain, logic and protocol and frequency analysis on a single instrument.
