Rohde & Schwarz RTC1002 RTC1000 Series Digital Bench Oscilloscope, 2 Analogue Channels, 50MHz
- RS Stock No.:
- 174-2800
- Mfr. Part No.:
- RTC1K-52M
- Brand:
- Rohde & Schwarz
Available to back order for despatch 01/07/2024, delivery within 2 working days
Not available for guaranteed pre 9am/10am delivery
Added
Price Each
£1,340.28
(exc. VAT)
£1,608.34
(inc. VAT)
| Units | Per unit |
| 1 + | £1,340.28 |
- RS Stock No.:
- 174-2800
- Mfr. Part No.:
- RTC1K-52M
- Brand:
- Rohde & Schwarz
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CZ
Product Details

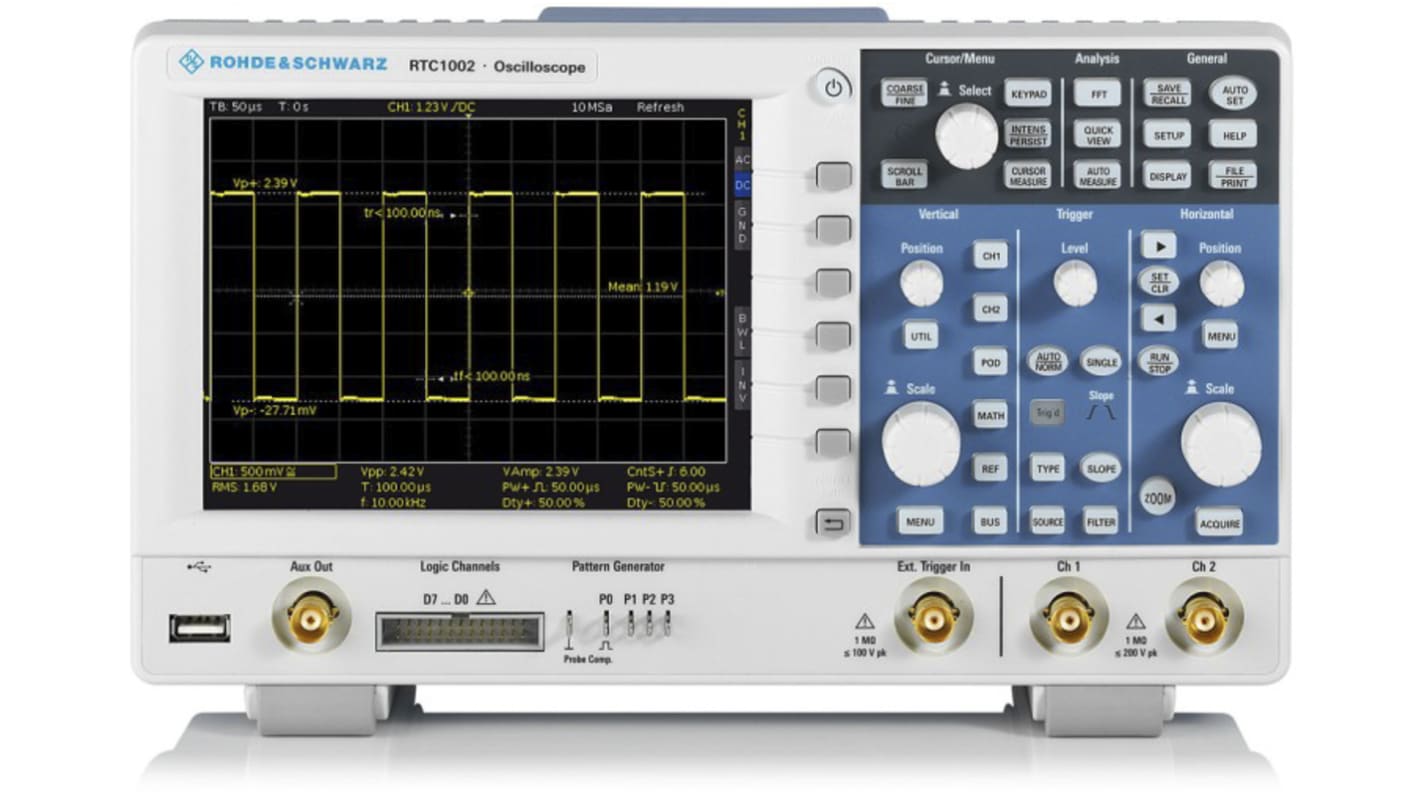

Rohde & Schwarz RTC1000 Series RTC1002 Oscilloscope
The Rohde & Schwarz RTC1000 digital oscilloscope is designed with high vertical sensitivity and can perform multiple functions. It allows a bandwidth of 50MHz, memory depth of 2Mpts and sampling rate of 2Gsa/s. This oscilloscope also has a function generator for different types of signals having frequencies up to 50KHz. It allows you to perform voltage measurements on analogue channels with two values simultaneously. It benefits you with different functions such as digital logic, protocol and frequency analysis on a single instrument.
Features and Benefits
• Low noise measurement due to analogue to digital converter
• Fanless design for better performance
• Separate RTC-B1 logic probe suitable for all the RTC1000 oscilloscopes
• Logical analyser
• Fanless design for better performance
• Separate RTC-B1 logic probe suitable for all the RTC1000 oscilloscopes
• Logical analyser
Applications
• Educational institutes
• Used by service technicians
• R&D troubleshooting and testing
• Used by service technicians
• R&D troubleshooting and testing
Specifications
Attribute | Value |
|---|---|
| Number of Analogue Channels | 2 |
| Bandwidth | 50MHz |
| Digital/Analogue | Digital |
| Oscilloscope Form | Mixed Signal |
| Oscilloscope Type | Bench |
| Series | RTC1000 |
| Power Source | Mains |
| Interface | CAN, IIC, LIN, RS232, RS422, RS485, SPI, UART, USB |
| Display Type | VGA Colour |
| Minimum Vertical Sensitivity | 1mV/div |
| Maximum Vertical Sensitivity | 10V/div |
| Minimum Time Base | 1ns/div |
| Screen Size | 6.5in |
| Sample Rate Random | 1 Gsps, 2 Gsps |
| Maximum Time Base | 100s/div |
| Vertical Resolution | 8 bit, 16 bit |
| Dimensions | 285 x 140 x 175mm |
| Weight | 1.7kg |
| Plug Type | Type A - North American/Japanese 2-blade, Type B - North American 3-pin |
| Rise Time | 7ns |
