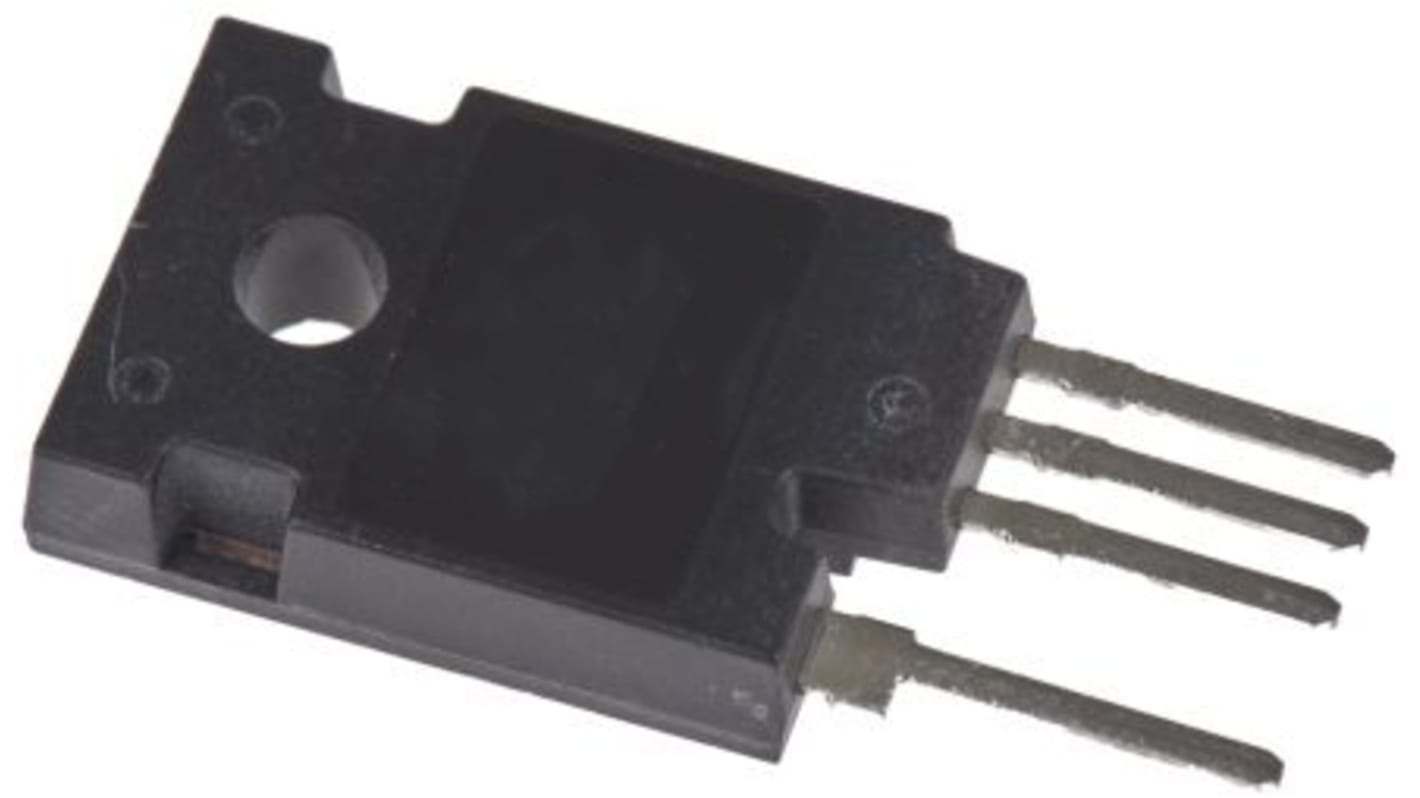

STMicroelectronics SCTW Type N-Channel MOSFET, 60 A, 1200 V Enhancement, 4-Pin Hip-247 SCTWA60N120G2-4
- RS Stock No.:
- 230-0094
- Mfr. Part No.:
- SCTWA60N120G2-4
- Brand:
- STMicroelectronics
Bulk discount available
Subtotal (1 unit)*
£21.50
(exc. VAT)
£25.80
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 07 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 1 | £21.50 |
| 2 - 4 | £20.94 |
| 5 + | £20.42 |
*price indicative
- RS Stock No.:
- 230-0094
- Mfr. Part No.:
- SCTWA60N120G2-4
- Brand:
- STMicroelectronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | STMicroelectronics | |
| Product Type | MOSFET | |
| Channel Type | Type N | |
| Maximum Continuous Drain Current Id | 60A | |
| Maximum Drain Source Voltage Vds | 1200V | |
| Series | SCTW | |
| Package Type | Hip-247 | |
| Mount Type | Through Hole | |
| Pin Count | 4 | |
| Maximum Drain Source Resistance Rds | 52mΩ | |
| Channel Mode | Enhancement | |
| Forward Voltage Vf | 3V | |
| Minimum Operating Temperature | -55°C | |
| Maximum Power Dissipation Pd | 388W | |
| Maximum Gate Source Voltage Vgs | 22 V | |
| Typical Gate Charge Qg @ Vgs | 22nC | |
| Maximum Operating Temperature | 175°C | |
| Width | 5.1 mm | |
| Length | 15.9mm | |
| Height | 21.1mm | |
| Standards/Approvals | No | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand STMicroelectronics | ||
Product Type MOSFET | ||
Channel Type Type N | ||
Maximum Continuous Drain Current Id 60A | ||
Maximum Drain Source Voltage Vds 1200V | ||
Series SCTW | ||
Package Type Hip-247 | ||
Mount Type Through Hole | ||
Pin Count 4 | ||
Maximum Drain Source Resistance Rds 52mΩ | ||
Channel Mode Enhancement | ||
Forward Voltage Vf 3V | ||
Minimum Operating Temperature -55°C | ||
Maximum Power Dissipation Pd 388W | ||
Maximum Gate Source Voltage Vgs 22 V | ||
Typical Gate Charge Qg @ Vgs 22nC | ||
Maximum Operating Temperature 175°C | ||
Width 5.1 mm | ||
Length 15.9mm | ||
Height 21.1mm | ||
Standards/Approvals No | ||
Automotive Standard No | ||
The STMicroelectronics SCTWA60N is silicon carbide power MOSFET device has been developed using ST’s advanced and innovative 2nd generation SiC MOSFET technology. The device features remarkably low on-resistance per unit area and very good switching performance. The variation of switching loss is almost independent of junction temperature.
Very fast and robust intrinsic body diode
Extremely low gate charge and input capacitance
Source sensing pin for increased efficiency
