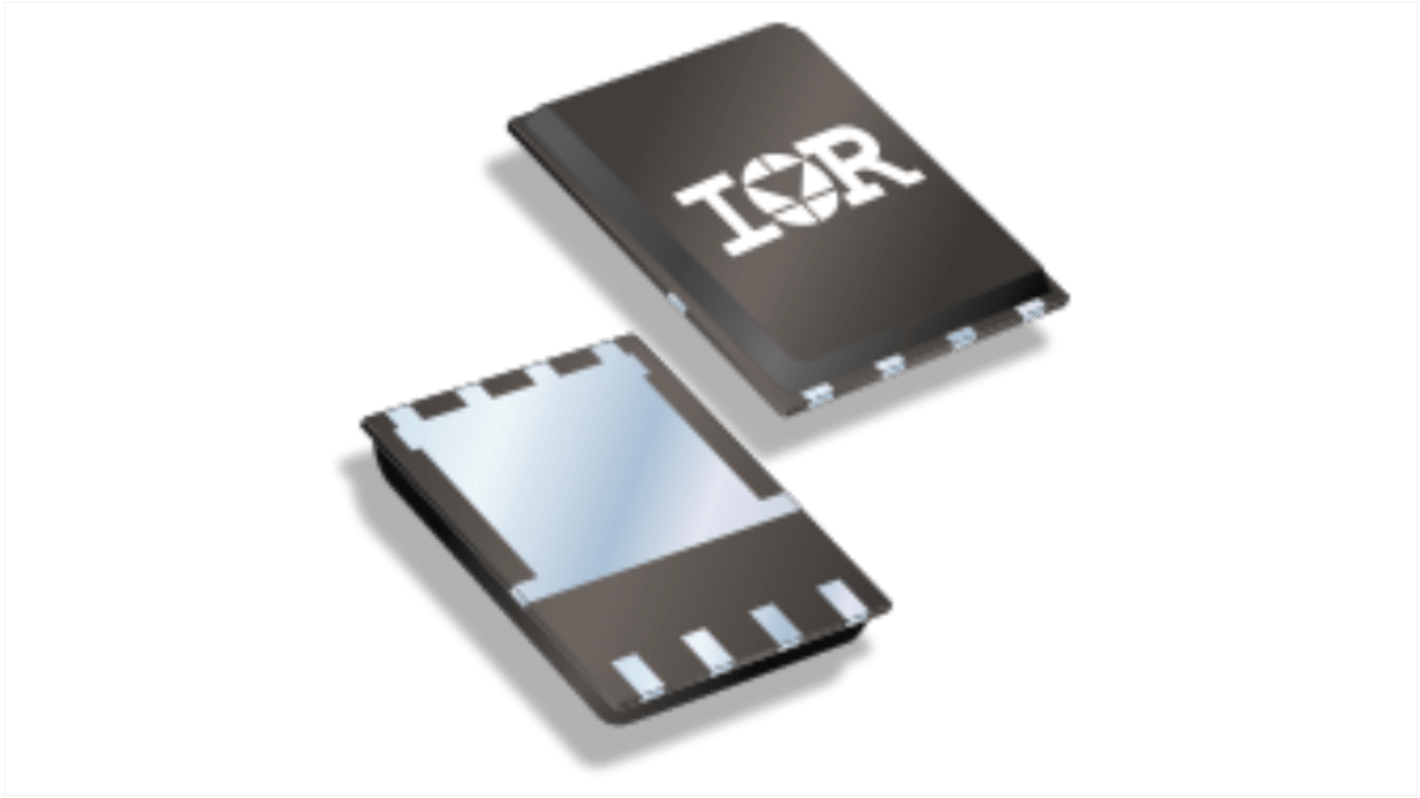

Infineon HEXFET Type N-Channel MOSFET & Diode, 100 A, 30 V Enhancement, 8-Pin PQFN IRFH5300TRPBF
- RS Stock No.:
- 220-7484
- Mfr. Part No.:
- IRFH5300TRPBF
- Brand:
- Infineon
Bulk discount available
Subtotal (1 pack of 10 units)*
£8.72
(exc. VAT)
£10.46
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 3,870 unit(s) shipping from 29 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 10 - 90 | £0.872 | £8.72 |
| 100 - 240 | £0.828 | £8.28 |
| 250 - 490 | £0.794 | £7.94 |
| 500 - 990 | £0.759 | £7.59 |
| 1000 + | £0.706 | £7.06 |
*price indicative
- RS Stock No.:
- 220-7484
- Mfr. Part No.:
- IRFH5300TRPBF
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Product Type | MOSFET & Diode | |
| Channel Type | Type N | |
| Maximum Continuous Drain Current Id | 100A | |
| Maximum Drain Source Voltage Vds | 30V | |
| Package Type | PQFN | |
| Series | HEXFET | |
| Mount Type | Surface | |
| Pin Count | 8 | |
| Maximum Drain Source Resistance Rds | 1.4mΩ | |
| Channel Mode | Enhancement | |
| Maximum Gate Source Voltage Vgs | 20 V | |
| Typical Gate Charge Qg @ Vgs | 50nC | |
| Forward Voltage Vf | 1V | |
| Maximum Power Dissipation Pd | 3.6W | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 150°C | |
| Height | 0.9mm | |
| Standards/Approvals | RoHS | |
| Width | 4.75 mm | |
| Length | 6mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Infineon | ||
Product Type MOSFET & Diode | ||
Channel Type Type N | ||
Maximum Continuous Drain Current Id 100A | ||
Maximum Drain Source Voltage Vds 30V | ||
Package Type PQFN | ||
Series HEXFET | ||
Mount Type Surface | ||
Pin Count 8 | ||
Maximum Drain Source Resistance Rds 1.4mΩ | ||
Channel Mode Enhancement | ||
Maximum Gate Source Voltage Vgs 20 V | ||
Typical Gate Charge Qg @ Vgs 50nC | ||
Forward Voltage Vf 1V | ||
Maximum Power Dissipation Pd 3.6W | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 150°C | ||
Height 0.9mm | ||
Standards/Approvals RoHS | ||
Width 4.75 mm | ||
Length 6mm | ||
Automotive Standard No | ||
The Infineon IRFH5300 is strong power MOSFET family is optimized for low RDS(on) and high current capability. The devices are ideal for low frequency applications requiring performance and ruggedness. The comprehensive portfolio addresses a broad range of applications including DC motors, battery management systems, inverters, and DC-DC converters.
Optimized for broadest availability from distribution partners
Product qualification according to JEDEC standard
Logic level : Optimized for 5 V gate drive voltage
