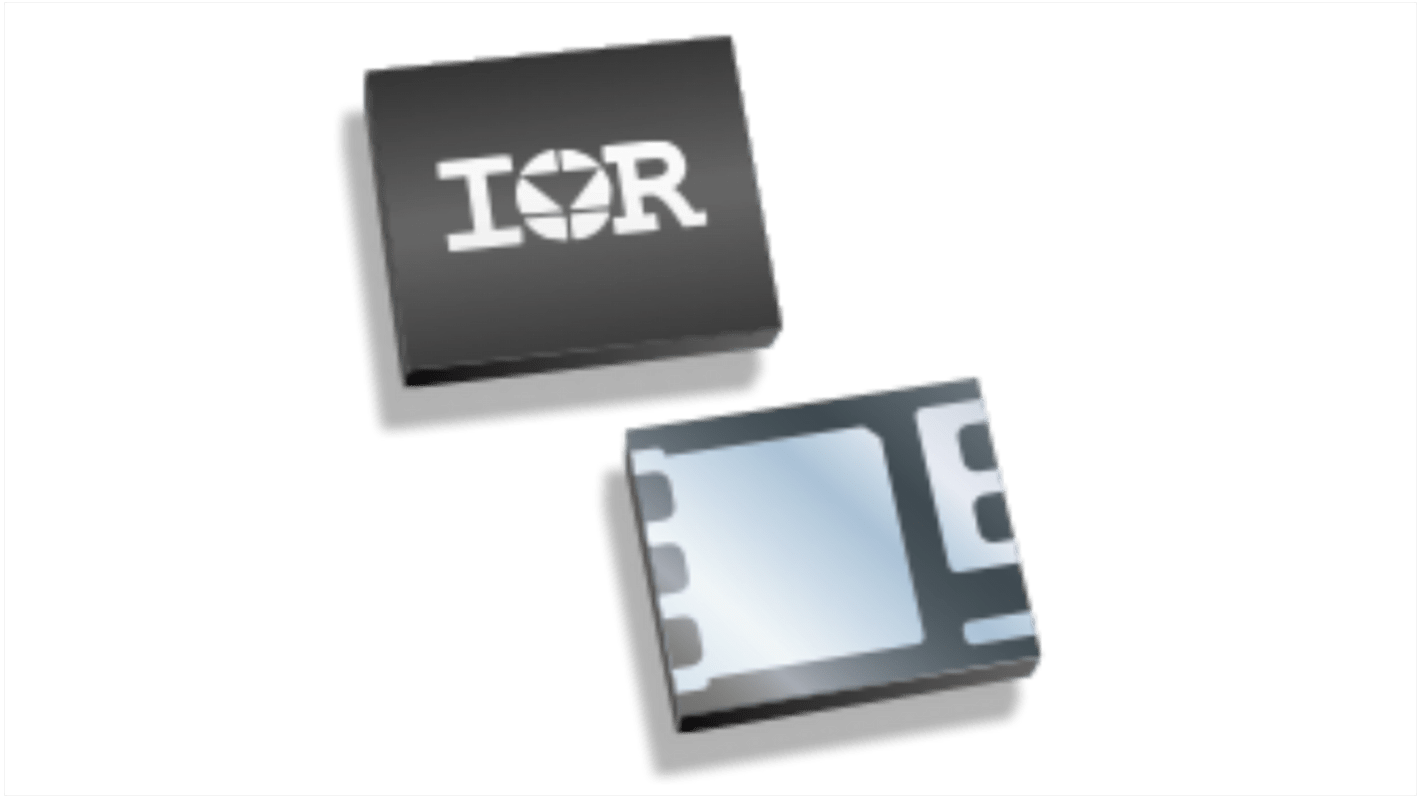

Infineon HEXFET Type N-Channel MOSFET & Diode, 12 A, 30 V Enhancement, 8-Pin PQFN

RS Stock No.:: 220-7480
Mfr. Part No.:: IRFH3707TRPBF
Brand:: Infineon

Infineon HEXFET Type N-Channel MOSFET & Diode, 12 A, 30 V Enhancement, 8-Pin PQFN

Currently unavailable

We don't know if this item will be back in stock, RS intend to remove it from our range soon.

RS Stock No.:: 220-7480
Mfr. Part No.:: IRFH3707TRPBF
Brand:: Infineon

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Infineon
	Product Type	MOSFET & Diode
	Channel Type	Type N
	Maximum Continuous Drain Current Id	12A
	Maximum Drain Source Voltage Vds	30V
	Package Type	PQFN
	Series	HEXFET
	Mount Type	Surface
	Pin Count	8
	Maximum Drain Source Resistance Rds	12.4mΩ
	Channel Mode	Enhancement
	Maximum Gate Source Voltage Vgs	20 V
	Maximum Power Dissipation Pd	2.8W
	Typical Gate Charge Qg @ Vgs	5.4nC
	Minimum Operating Temperature	-55°C
	Forward Voltage Vf	1V
	Maximum Operating Temperature	150°C
	Width	3 mm
	Standards/Approvals	Lead-Free, RoHS
	Length	3mm
	Height	1mm
	Automotive Standard	No

	Select all
	Brand Infineon
	Product Type MOSFET & Diode
	Channel Type Type N
	Maximum Continuous Drain Current Id 12A
	Maximum Drain Source Voltage Vds 30V
	Package Type PQFN
	Series HEXFET
	Mount Type Surface
	Pin Count 8
	Maximum Drain Source Resistance Rds 12.4mΩ
	Channel Mode Enhancement
	Maximum Gate Source Voltage Vgs 20 V
	Maximum Power Dissipation Pd 2.8W
	Typical Gate Charge Qg @ Vgs 5.4nC
	Minimum Operating Temperature -55°C
	Forward Voltage Vf 1V
	Maximum Operating Temperature 150°C
	Width 3 mm
	Standards/Approvals Lead-Free, RoHS
	Length 3mm
	Height 1mm
	Automotive Standard No

Datasheet - IRFH3707TRPBF

The Infineon Strong IRFET power MOSFET family is optimized for low RDS(on) and high current capability. The devices are ideal for low frequency applications requiring performance and ruggedness. The comprehensive portfolio addresses a broad range of applications including DC motors, battery management systems, inverters, and DC-DC converters.

Optimized for broadest availability from distribution partners

Product qualification according to JEDEC standard

Industry standard surface-mount package

Potential alternative to high-RDS(on) SuperSO8 package

Wide availability from distribution partners

Industry standard qualification level

Standard pinout allows for drop in replacement

Small form factor
