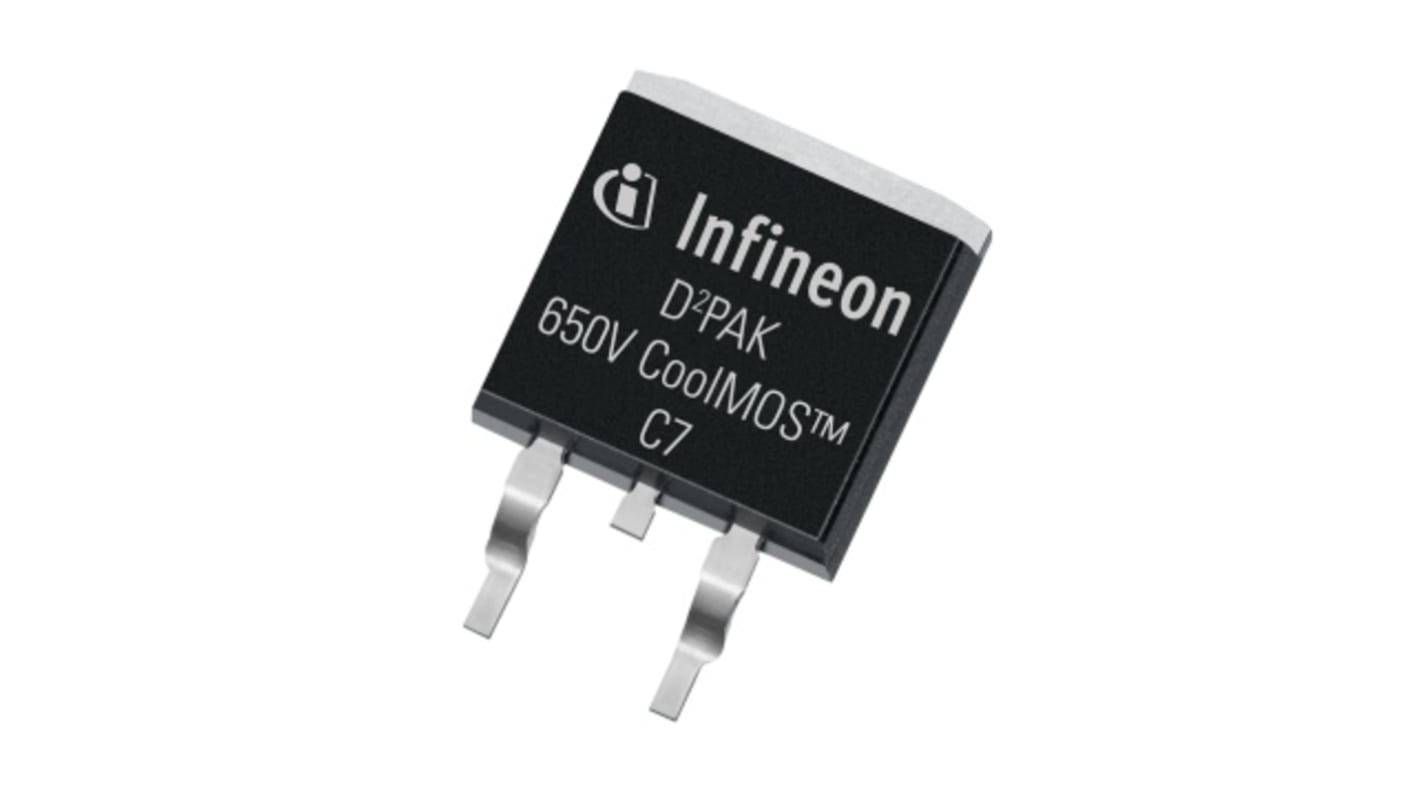

Infineon CoolMOS™ N-Channel MOSFET, 24 A, 650 V, 3-Pin D2PAK IPB65R095C7ATMA2
- RS Stock No.:
- 217-2506
- Mfr. Part No.:
- IPB65R095C7ATMA2
- Brand:
- Infineon
Save 26% when you buy 125 units
Subtotal (1 pack of 5 units)*
£18.30
(exc. VAT)
£21.95
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 225 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
---|---|---|
5 - 5 | £3.66 | £18.30 |
10 - 20 | £3.33 | £16.65 |
25 - 45 | £3.112 | £15.56 |
50 - 120 | £2.892 | £14.46 |
125 + | £2.672 | £13.36 |
*price indicative
- RS Stock No.:
- 217-2506
- Mfr. Part No.:
- IPB65R095C7ATMA2
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Infineon | |
Channel Type | N | |
Maximum Continuous Drain Current | 24 A | |
Maximum Drain Source Voltage | 650 V | |
Package Type | D2PAK (TO-263) | |
Series | CoolMOS™ | |
Mounting Type | Surface Mount | |
Pin Count | 3 | |
Maximum Drain Source Resistance | 95 mO | |
Maximum Gate Threshold Voltage | 4V | |
Number of Elements per Chip | 1 | |
Select all | ||
---|---|---|
Brand Infineon | ||
Channel Type N | ||
Maximum Continuous Drain Current 24 A | ||
Maximum Drain Source Voltage 650 V | ||
Package Type D2PAK (TO-263) | ||
Series CoolMOS™ | ||
Mounting Type Surface Mount | ||
Pin Count 3 | ||
Maximum Drain Source Resistance 95 mO | ||
Maximum Gate Threshold Voltage 4V | ||
Number of Elements per Chip 1 | ||
The Infineon CoolMOS is a revolutionary technology for high voltage power MOSFETs, designed according to the super junction(SJ) principle and pioneered by Infineon Technologies. CoolMOS™ C7 series combines thee experience of the leading SJ MOSFET supplier with high class innovation. The product portfolio provides all benefits off a switching super junction MOSFETs offering better efficiency, reduced gate charge, easy implementation and outstanding reliability.
Increased MOSFET dv/dt ruggedness
Better efficiency due to best in class FOMRDS(on)*Eoss and RDS(on)*Qg
Best in class RDS(on)/package
Easy to use/drive
Pb-free plating, halogen free mold compound
Qualified for industrial grade applications according to JEDEC(J-STD20 andJESD22)
Better efficiency due to best in class FOMRDS(on)*Eoss and RDS(on)*Qg
Best in class RDS(on)/package
Easy to use/drive
Pb-free plating, halogen free mold compound
Qualified for industrial grade applications according to JEDEC(J-STD20 andJESD22)
