N-Channel MOSFET, 60 A, 60 V, 8-Pin PowerPAK SO-8 Vishay Siliconix SiR188DP-T1-RE3
- RS Stock No.:
- 178-3687
- Mfr. Part No.:
- SiR188DP-T1-RE3
- Brand:
- Vishay Siliconix
Subtotal (1 reel of 3000 units)**
£1,266.00
(exc. VAT)
£1,518.00
(inc. VAT)
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over £50.00
Units | Per unit | Per Reel** |
|---|---|---|
| 3000 + | £0.422 | £1,266.00 |
**price indicative
- RS Stock No.:
- 178-3687
- Mfr. Part No.:
- SiR188DP-T1-RE3
- Brand:
- Vishay Siliconix
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay Siliconix | |
| Channel Type | N | |
| Maximum Continuous Drain Current | 60 A | |
| Maximum Drain Source Voltage | 60 V | |

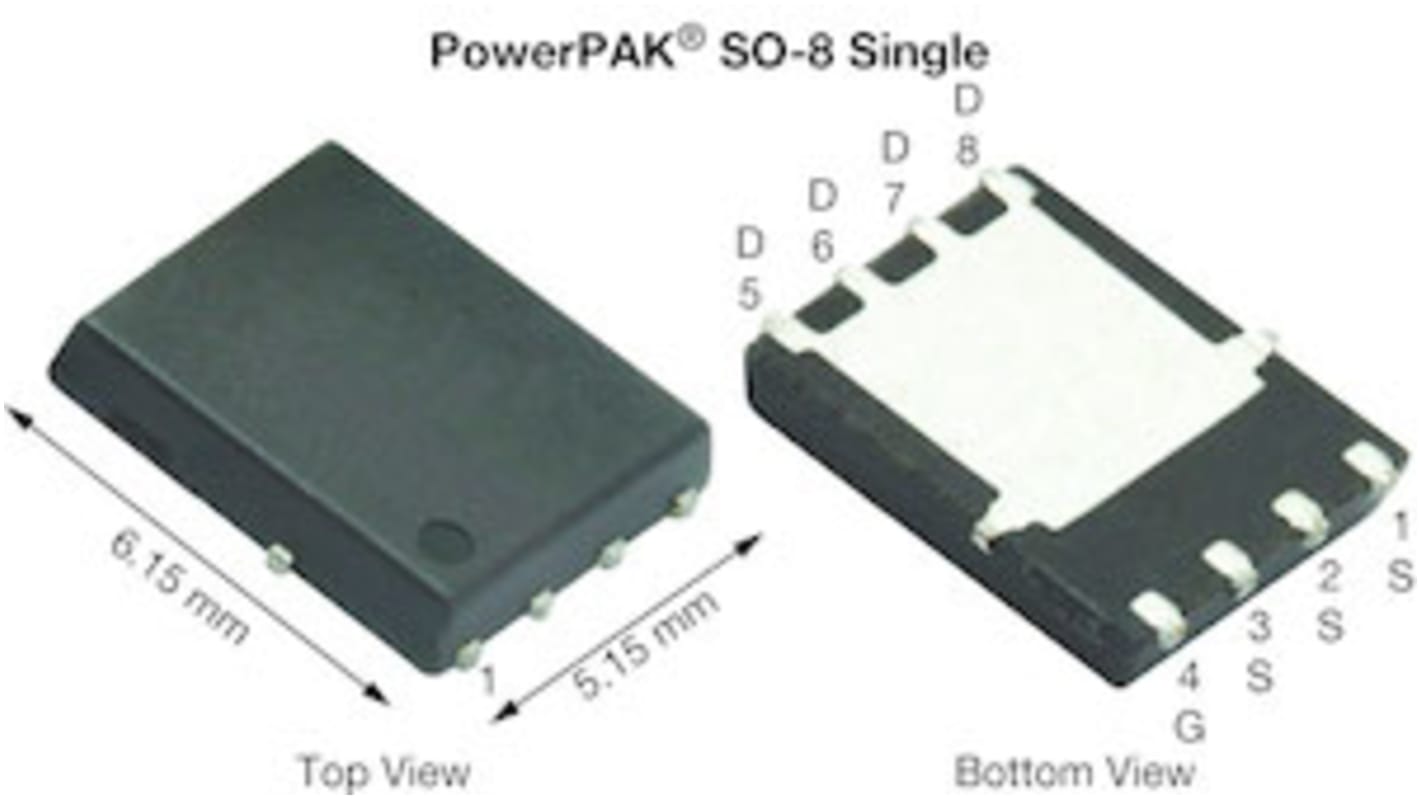

| Package Type | PowerPAK SO-8 | |
| Series | TrenchFET | |
| Mounting Type | Surface Mount | |
| Pin Count | 8 | |
| Maximum Drain Source Resistance | 4 mΩ | |
| Channel Mode | Enhancement | |
| Maximum Gate Threshold Voltage | 2V | |
| Minimum Gate Threshold Voltage | 3.6V | |
| Maximum Power Dissipation | 65.7 W | |
| Transistor Configuration | Single | |
| Maximum Gate Source Voltage | ±20 V | |
| Maximum Operating Temperature | +150 °C | |
| Length | 5.99mm | |
| Number of Elements per Chip | 1 | |
| Width | 5mm | |
| Transistor Material | Si | |
| Typical Gate Charge @ Vgs | 29 nC @ 10 V | |
| Forward Diode Voltage | 1.1V | |
| Minimum Operating Temperature | -55 °C | |
| Height | 1.07mm | |
Select all | ||
|---|---|---|
Brand Vishay Siliconix | ||
Channel Type N | ||
Maximum Continuous Drain Current 60 A | ||
Maximum Drain Source Voltage 60 V | ||
Package Type PowerPAK SO-8 | ||
Series TrenchFET | ||
Mounting Type Surface Mount | ||
Pin Count 8 | ||
Maximum Drain Source Resistance 4 mΩ | ||
Channel Mode Enhancement | ||
Maximum Gate Threshold Voltage 2V | ||
Minimum Gate Threshold Voltage 3.6V | ||
Maximum Power Dissipation 65.7 W | ||
Transistor Configuration Single | ||
Maximum Gate Source Voltage ±20 V | ||
Maximum Operating Temperature +150 °C | ||
Length 5.99mm | ||
Number of Elements per Chip 1 | ||
Width 5mm | ||
Transistor Material Si | ||
Typical Gate Charge @ Vgs 29 nC @ 10 V | ||
Forward Diode Voltage 1.1V | ||
Minimum Operating Temperature -55 °C | ||
Height 1.07mm | ||
