N-Channel MOSFET, 12 A, 60 V, 6-Pin SC-70-6L Vishay Siliconix SiA106DJ-T1-GE3

RS Stock No.:: 178-3667
Mfr. Part No.:: SiA106DJ-T1-GE3
Brand:: Vishay Siliconix

N-Channel MOSFET, 12 A, 60 V, 6-Pin SC-70-6L Vishay Siliconix SiA106DJ-T1-GE3

Price Each (On a Reel of 3000)

£0.243

(exc. VAT)

£0.292

(inc. VAT)

Available to back order for despatch 03/01/2025

Units	Per unit	Per Reel*
3000 +	£0.243	£729.00

*price indicative

RS Stock No.:: 178-3667
Mfr. Part No.:: SiA106DJ-T1-GE3
Brand:: Vishay Siliconix

Datasheet

Attribute	Value
Channel Type	N
Maximum Continuous Drain Current	12 A
Maximum Drain Source Voltage	60 V
Series	TrenchFET

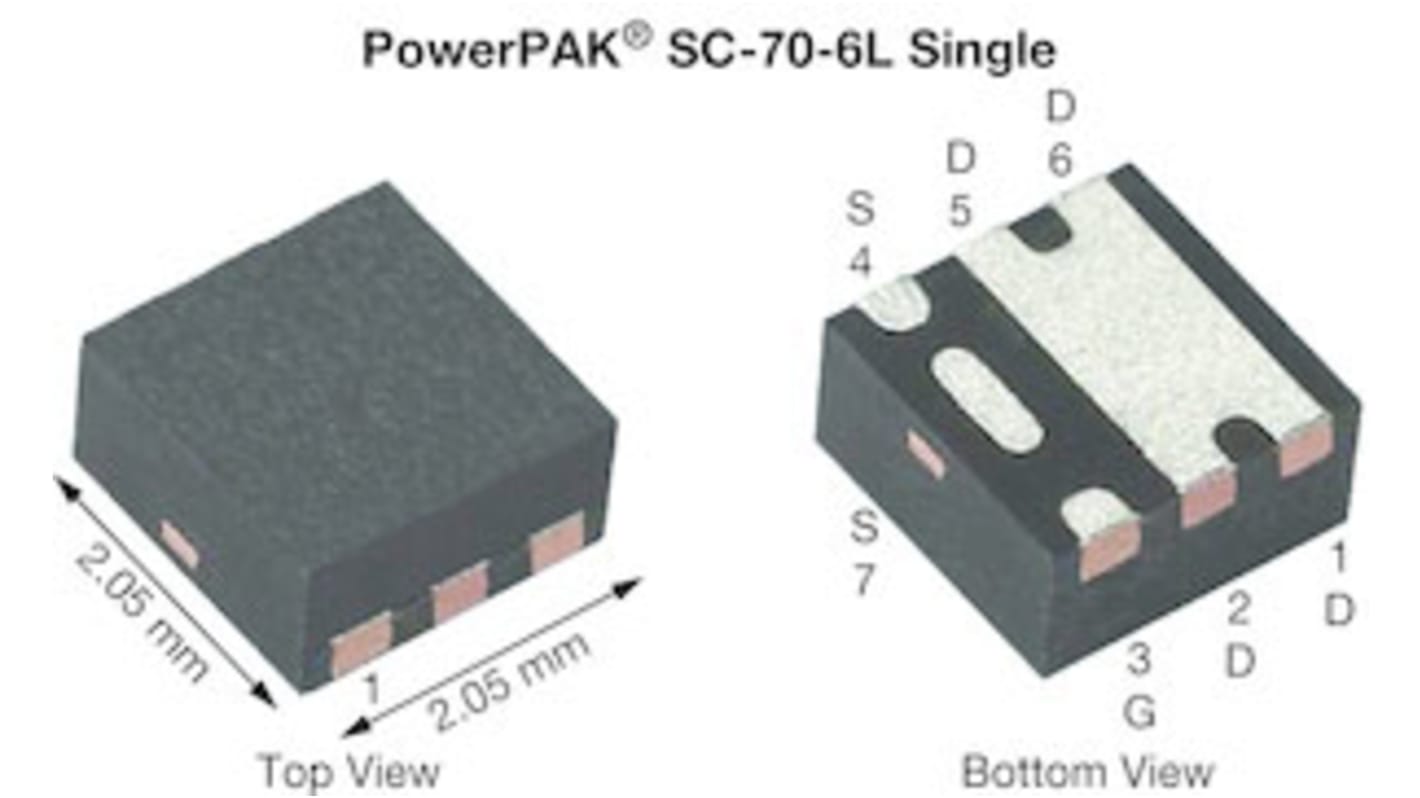

Package Type	SC-70-6L
Mounting Type	Surface Mount
Pin Count	6
Maximum Drain Source Resistance	20 mΩ
Channel Mode	Enhancement
Maximum Gate Threshold Voltage	4V
Minimum Gate Threshold Voltage	2V
Maximum Power Dissipation	19 W
Transistor Configuration	Single
Maximum Gate Source Voltage	±20 V
Typical Gate Charge @ Vgs	8.9 nC @ 10 V
Length	2.2mm
Transistor Material	Si
Maximum Operating Temperature	+150 °C
Number of Elements per Chip	1
Width	1.35mm
Forward Diode Voltage	1.2V
Height	1mm
Minimum Operating Temperature	-55 °C

N-Channel MOSFET, 12 A, 60 V, 6-Pin SC-70-6L Vishay Siliconix SiA106DJ-T1-GE3
