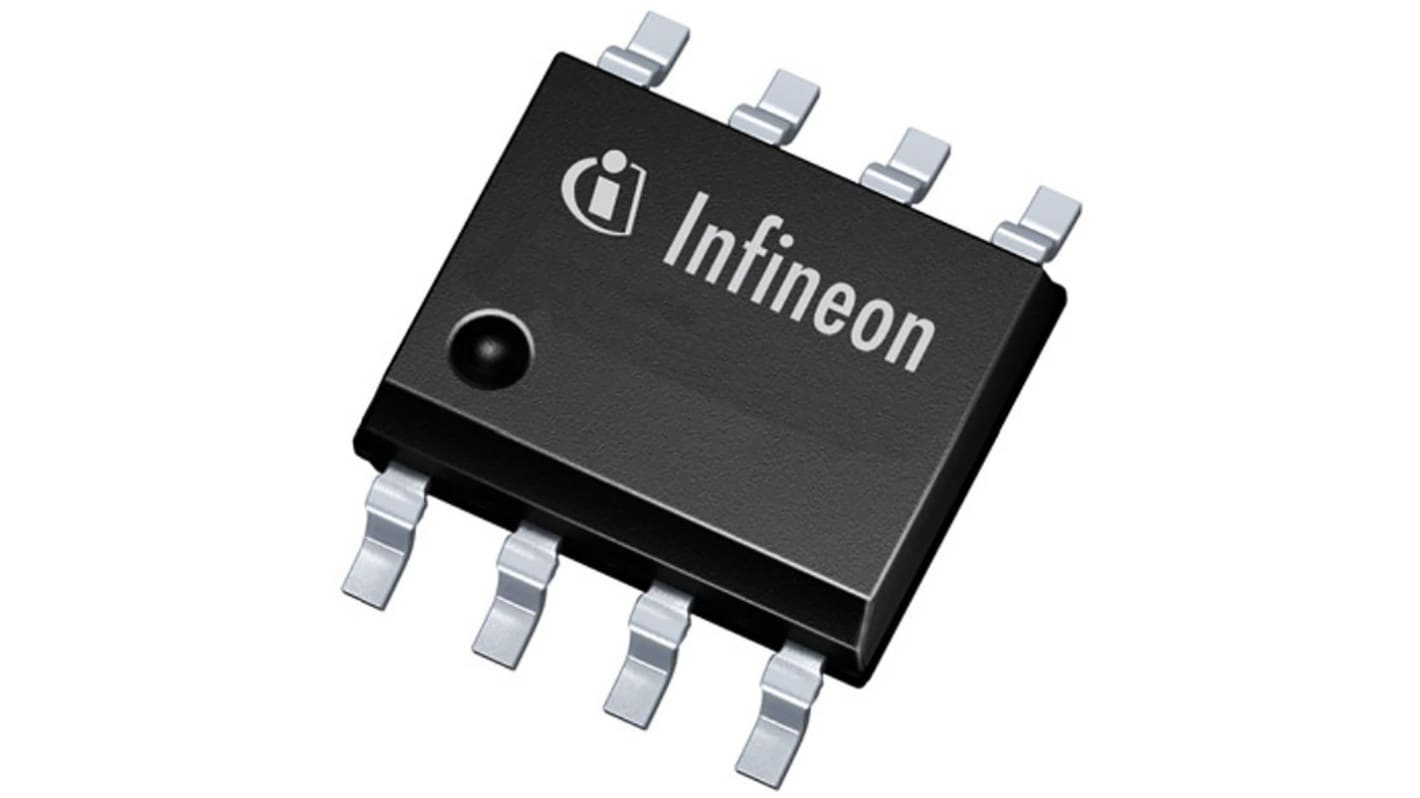

Infineon Dual HEXFET 2 Type N-Channel MOSFET, 8.1 A, 30 V Enhancement, 8-Pin SOIC IRL6372TRPBF
- RS Stock No.:
- 130-1013
- Distrelec Article No.:
- 304-36-992
- Mfr. Part No.:
- IRL6372TRPBF
- Brand:
- Infineon
Bulk discount available
Subtotal (1 pack of 25 units)*
£7.55
(exc. VAT)
£9.05
(inc. VAT)
FREE delivery for orders over £50.00
Last RS stock
- Final 15,175 unit(s), ready to ship
Units | Per unit | Per Pack* |
|---|---|---|
| 25 - 100 | £0.302 | £7.55 |
| 125 - 225 | £0.242 | £6.05 |
| 250 - 600 | £0.226 | £5.65 |
| 625 - 1225 | £0.208 | £5.20 |
| 1250 + | £0.203 | £5.08 |
*price indicative
- RS Stock No.:
- 130-1013
- Distrelec Article No.:
- 304-36-992
- Mfr. Part No.:
- IRL6372TRPBF
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Channel Type | Type N | |
| Product Type | MOSFET | |
| Maximum Continuous Drain Current Id | 8.1A | |
| Maximum Drain Source Voltage Vds | 30V | |
| Series | HEXFET | |
| Package Type | SOIC | |
| Mount Type | Surface | |
| Pin Count | 8 | |
| Maximum Drain Source Resistance Rds | 23mΩ | |
| Channel Mode | Enhancement | |
| Forward Voltage Vf | 1.2V | |
| Maximum Power Dissipation Pd | 2W | |
| Minimum Operating Temperature | -55°C | |
| Typical Gate Charge Qg @ Vgs | 11nC | |
| Maximum Gate Source Voltage Vgs | 12 V | |
| Transistor Configuration | Dual | |
| Maximum Operating Temperature | 150°C | |
| Height | 1.5mm | |
| Standards/Approvals | No | |
| Length | 5mm | |
| Width | 4 mm | |
| Number of Elements per Chip | 2 | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Infineon | ||
Channel Type Type N | ||
Product Type MOSFET | ||
Maximum Continuous Drain Current Id 8.1A | ||
Maximum Drain Source Voltage Vds 30V | ||
Series HEXFET | ||
Package Type SOIC | ||
Mount Type Surface | ||
Pin Count 8 | ||
Maximum Drain Source Resistance Rds 23mΩ | ||
Channel Mode Enhancement | ||
Forward Voltage Vf 1.2V | ||
Maximum Power Dissipation Pd 2W | ||
Minimum Operating Temperature -55°C | ||
Typical Gate Charge Qg @ Vgs 11nC | ||
Maximum Gate Source Voltage Vgs 12 V | ||
Transistor Configuration Dual | ||
Maximum Operating Temperature 150°C | ||
Height 1.5mm | ||
Standards/Approvals No | ||
Length 5mm | ||
Width 4 mm | ||
Number of Elements per Chip 2 | ||
Automotive Standard No | ||
N-Channel Power MOSFET 30V, Infineon
The Infineon range of discrete HEXFET® power MOSFETs includes N-channel devices in surface mount and leaded packages. And form factors that can address almost any board layout and thermal design challenge. Across the range Benchmark on resistance drives down conduction losses, allowing designers to deliver optimum system efficiency.
MOSFET Transistors, Infineon
Infineon offers a large and comprehensive portfolio of MOSFET devices which includes the CoolMOS, OptiMOS and StrongIRFET families. They deliver best-in-class performance to bring more efficiency, power density and cost effectiveness. Designs requiring high quality and enhanced protection features benefit from AEC-Q101 industry standards Automotive qualified MOSFETs.
