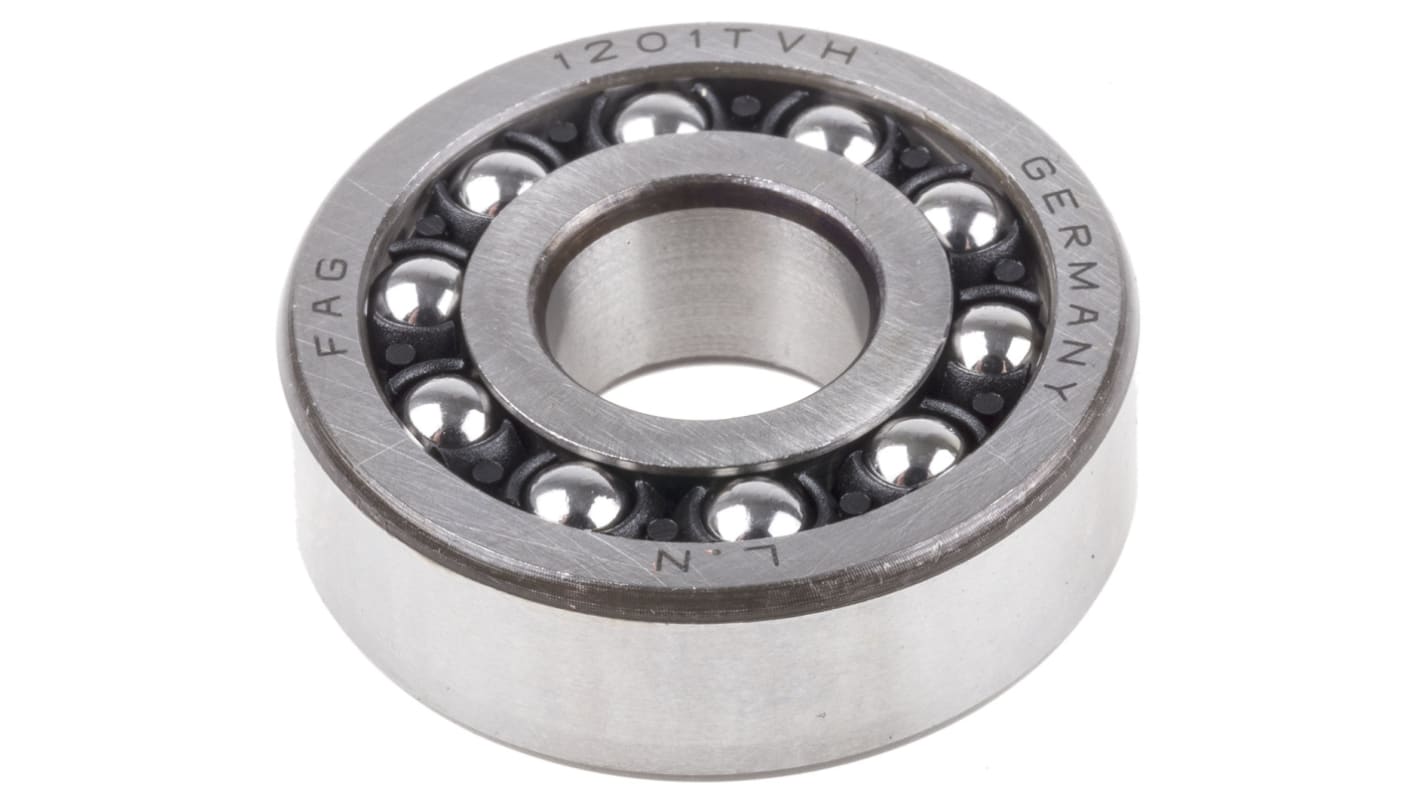

FAG 1201-TVH Self Aligning Ball Bearing- Open Type 12mm I.D, 32mm O.D
- RS Stock No.:
- 174-0955
- Mfr. Part No.:
- 1201-TVH
- Brand:
- FAG
Bulk discount available
Subtotal (1 unit)*
£23.97
(exc. VAT)
£28.76
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 8 unit(s) shipping from 20 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £23.97 |
5 - 9 | £23.00 |
10 - 24 | £22.53 |
25 + | £22.02 |
*price indicative
- RS Stock No.:
- 174-0955
- Mfr. Part No.:
- 1201-TVH
- Brand:
- FAG
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | FAG | |
Inside Diameter | 12mm | |
Outside Diameter | 32mm | |
Race Width | 10mm | |
Ball Bearing Type | Self Aligning Ball Bearing | |
Sealing Arrangement | Open Type | |
Bearing Clearance | CN | |
Material | Steel | |
Ball Material | Steel | |
Cage Material | Polyamide | |
Number of Rows | 2 | |
Static Load Rating | 1.25kN | |
Dynamic Load Rating | 5.7kN | |
Bore Type | Parallel | |
Bearing Series | 2 Light | |
Partial Bearing Code | 1201 | |
Race Type | Plain | |
Select all | ||
---|---|---|
Brand FAG | ||
Inside Diameter 12mm | ||
Outside Diameter 32mm | ||
Race Width 10mm | ||
Ball Bearing Type Self Aligning Ball Bearing | ||
Sealing Arrangement Open Type | ||
Bearing Clearance CN | ||
Material Steel | ||
Ball Material Steel | ||
Cage Material Polyamide | ||
Number of Rows 2 | ||
Static Load Rating 1.25kN | ||
Dynamic Load Rating 5.7kN | ||
Bore Type Parallel | ||
Bearing Series 2 Light | ||
Partial Bearing Code 1201 | ||
Race Type Plain | ||
Self-aligning ball bearings are double row, self-retaining units comprising outer rings with a concave raceway, inner rings with a cylindrical or tapered bore and ball and cage assemblies. The bearings are available in open and sealed designs.
Radial and axial load capacity
With cylindrical or tapered bore
With adapter sleeve
With extended inner ring
Sealing
Lubrication
Compensation of angular misalignments
Operating temperature
Cages
Suffixes
With cylindrical or tapered bore
With adapter sleeve
With extended inner ring
Sealing
Lubrication
Compensation of angular misalignments
Operating temperature
Cages
Suffixes
