FLIR T540 T500 Bluetooth, WiFi, USB 2.0 Thermal Imaging Camera, 1500 °C 464 x 348 Pixel Detector Resolution RSCAL

RS Stock No.:: 202-0709
Mfr. Part No.:: FLIR T540-14
Brand:: FLIR

FLIR T540 T500 Bluetooth, WiFi, USB 2.0 Thermal Imaging Camera, 1500 °C 464 x 348 Pixel Detector Resolution RSCAL

Subtotal (1 unit)*

£13,352.50

(exc. VAT)

£16,023.00

(inc. VAT)

FREE delivery for orders over £60.00

In Stock

2 unit(s) ready to ship

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£13,352.50

*price indicative

RS Stock No.:: 202-0709
Mfr. Part No.:: FLIR T540-14
Brand:: FLIR

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	FLIR
	Product Type	Thermal Imaging Camera
	Battery Type	Charged in camera or on separate Lithium-ion battery
	Maximum Temperature Measurement	1500°C
	Detector Resolution	464 x 348 Pixel
	Display Resolution	640 x 480 pixel
	Interface Type	Bluetooth, WiFi, USB 2.0
	Thermal Sensitivity	40mK
	Horizontal Angle of View	24°
	Vertical Angle of View	18°
	Focus Type	Automatic
	Power Source	Lithium-ion Battery
	Refresh Rate	30Hz
	Minimum Focus Distance	1m
	Battery Life	4h
	Weight	1.3kg
	Standards/Approvals	No
	Series	T500
	Diagonal Display Size	4in
	Voice Recorder	Yes
	Model Number	T540
	Calibrated	RSCAL
	Emissivity	0.01 to 1
	IR/Visual Image Combination	Picture-in-Picture
	Radiometric Video on Camera	Yes
	Spatial Resolution IFOV	0.9mrad
	Battery Level Indicator	Yes
	Depth	84mm
	Image Enhancement	Yes
	Hazardous Area Certification	No
	Auto Capture on Camera	Yes
	Accuracy	±2°C
	Visual Camera	Yes
	Image Storage	MicroSD

	Select all
	Brand FLIR
	Product Type Thermal Imaging Camera
	Battery Type Charged in camera or on separate Lithium-ion battery
	Maximum Temperature Measurement 1500°C
	Detector Resolution 464 x 348 Pixel
	Display Resolution 640 x 480 pixel
	Interface Type Bluetooth, WiFi, USB 2.0
	Thermal Sensitivity 40mK
	Horizontal Angle of View 24°
	Vertical Angle of View 18°
	Focus Type Automatic
	Power Source Lithium-ion Battery
	Refresh Rate 30Hz
	Minimum Focus Distance 1m
	Battery Life 4h
	Weight 1.3kg
	Standards/Approvals No
	Series T500
	Diagonal Display Size 4in
	Voice Recorder Yes
	Model Number T540
	Calibrated RSCAL
	Emissivity 0.01 to 1
	IR/Visual Image Combination Picture-in-Picture
	Radiometric Video on Camera Yes
	Spatial Resolution IFOV 0.9mrad
	Battery Level Indicator Yes
	Depth 84mm
	Image Enhancement Yes
	Hazardous Area Certification No
	Auto Capture on Camera Yes
	Accuracy ±2°C
	Visual Camera Yes
	Image Storage MicroSD

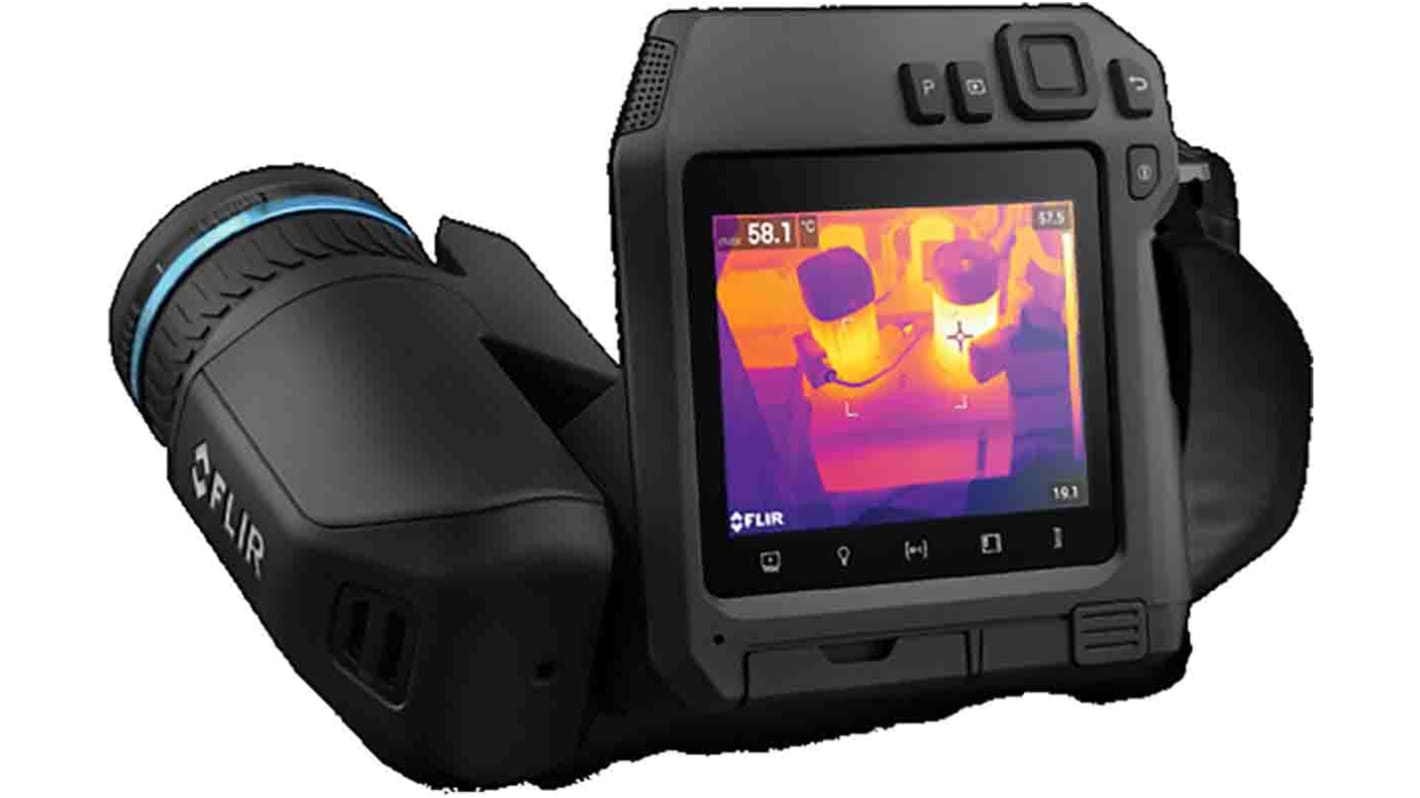

FLIR Thermal Imaging Camera, -20 to +1500°C Temperature Measurement Range, 30Hz Refresh Rate - FLIR T540 14°

This thermal imaging camera is designed for professionals in various industrial sectors, enabling precise evaluation of equipment conditions and identification of potential failures. With advanced features and high-quality imaging, this camera is essential for routine inspections and troubleshooting tasks.

Features & Benefits

• 180° rotating optical block enhances accessibility

• Laser-assisted automatic focus improves measurement accuracy

• 33% brighter LCD display for enhanced visibility

• Video capabilities with Picture-in-Picture for in-depth analysis

• Wireless connectivity via Bluetooth facilitates data sharing

• Compact and lightweight design for ease of use

Applications

• Ideal for electrical inspections in commercial environments

• Monitoring the performance of industrial equipment

• Suitable for mechanical maintenance surveys

• Essential for safety assessments in automation processes

How does the automatic focus function improve accuracy?

The automatic focus uses laser assistance to deliver precise temperature readings without manual adjustment, minimising the risk of error.

Can I use it in low-light conditions?

Yes, the camera features a bright display and advanced imaging technologies, making it effective in dimly lit environments.

Is it compatible with other FLIR products?

Yes, its wireless connectivity allows seamless integration with other FLIR devices that support METERLiNK, enhancing data collection capabilities.

How it can be record and store images?

Images can be saved on a micro SD card, and users can upload them directly to cloud services for secure storage and sharing.

What is the operating temperature range for this camera?

It operates effectively between -15°C and 50°C, providing versatility in various environmental conditions.

Software Options:

2441681 Thermal Studio Pro Perpetual

2441680 Thermal Studio Pro 1 year

2441684 Thermal Studio Standard Perpetual

2441682 Thermal Studio Standard 1 year
