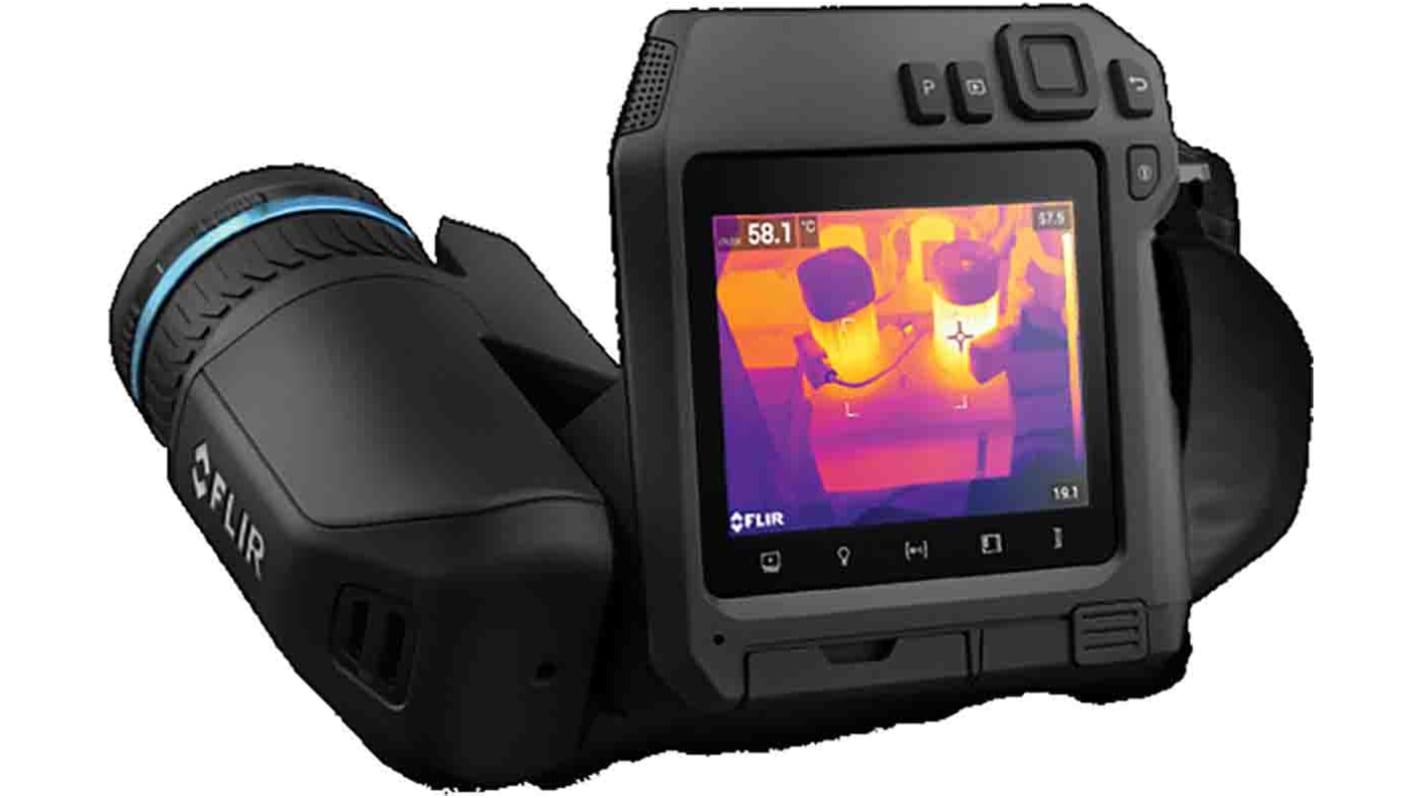

FLIR T530 FLIR T500 WiFi, Bluetooth, USB 2.0 Thermal Imaging Camera, 650 °C 320 x 240 Pixel Detector Resolution RSCAL
- RS Stock No.:
- 202-0692
- Mfr. Part No.:
- FLIR T530-24-42
- Brand:
- FLIR
Subtotal (1 unit)*
£11,202.50
(exc. VAT)
£13,443.00
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 25 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £11,202.50 |
*price indicative
- RS Stock No.:
- 202-0692
- Mfr. Part No.:
- FLIR T530-24-42
- Brand:
- FLIR
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | FLIR | |
| Product Type | Thermal Imaging Camera | |
| Maximum Temperature Measurement | 650°C | |
| Battery Type | Charged in camera or on separate Lithium-ion battery | |
| Detector Resolution | 320 x 240 Pixel | |
| Display Resolution | 640 x 480 pixel | |
| Interface Type | WiFi, Bluetooth, USB 2.0 | |
| Horizontal Angle of View | 24° | |
| Thermal Sensitivity | 40mK | |
| Vertical Angle of View | 18° | |
| Focus Type | Automatic | |
| Power Source | Lithium-ion Battery | |
| Refresh Rate | 30Hz | |
| Battery Life | 4h | |
| Minimum Focus Distance | 0.15m | |
| Series | FLIR T500 | |
| Weight | 1.3kg | |
| Standards/Approvals | 25 g / IEC 60068227, 2 g / IEC 6006826 /, EN/UL/CSA/PSE 609501 | |
| Diagonal Display Size | 4in | |
| Battery Level Indicator | Yes | |
| Auto Capture on Camera | Yes | |
| Image Enhancement | Yes | |
| IR/Visual Image Combination | Picture-in-Picture | |
| Spatial Resolution IFOV | 1.31mrad | |
| Image Storage | MicroSD | |
| Accuracy | ±2°C | |
| Hazardous Area Certification | No | |
| Radiometric Video on Camera | Yes | |
| Emissivity | 0.01 to 1 | |
| Calibrated | RSCAL | |
| Model Number | T530 | |
| Voice Recorder | Yes | |
| Visual Camera | Yes | |
| Select all | ||
|---|---|---|
Brand FLIR | ||
Product Type Thermal Imaging Camera | ||
Maximum Temperature Measurement 650°C | ||
Battery Type Charged in camera or on separate Lithium-ion battery | ||
Detector Resolution 320 x 240 Pixel | ||
Display Resolution 640 x 480 pixel | ||
Interface Type WiFi, Bluetooth, USB 2.0 | ||
Horizontal Angle of View 24° | ||
Thermal Sensitivity 40mK | ||
Vertical Angle of View 18° | ||
Focus Type Automatic | ||
Power Source Lithium-ion Battery | ||
Refresh Rate 30Hz | ||
Battery Life 4h | ||
Minimum Focus Distance 0.15m | ||
Series FLIR T500 | ||
Weight 1.3kg | ||
Standards/Approvals 25 g / IEC 60068227, 2 g / IEC 6006826 /, EN/UL/CSA/PSE 609501 | ||
Diagonal Display Size 4in | ||
Battery Level Indicator Yes | ||
Auto Capture on Camera Yes | ||
Image Enhancement Yes | ||
IR/Visual Image Combination Picture-in-Picture | ||
Spatial Resolution IFOV 1.31mrad | ||
Image Storage MicroSD | ||
Accuracy ±2°C | ||
Hazardous Area Certification No | ||
Radiometric Video on Camera Yes | ||
Emissivity 0.01 to 1 | ||
Calibrated RSCAL | ||
Model Number T530 | ||
Voice Recorder Yes | ||
Visual Camera Yes | ||
FLIR Thermal Imaging Camera, -20 to +650°C Temperature Measurement Range, 30Hz Refresh Rate - FLIR T530 24° + 42°
This thermal imaging camera is designed for professionals seeking a reliable tool for temperature measurement and fault diagnosis. Its advanced imaging technology enhances safety and performance across various applications, particularly in the electrical and industrial sectors. The compact and ergonomic design facilitates ease of use while delivering accurate thermal data.
Features & Benefits
• Automatic focus enables quick and precise targeting
• 320x240 pixel detector resolution for clear imaging
• Bluetooth functionality allows for seamless connectivity and data transfer
• Picture-in-picture imaging overlays thermal images for enhanced analysis
• Exceptional thermal sensitivity aids in detecting minor temperature differences
• High accuracy ensures error margins within ±2°C
Applications
• Electrical inspections to identify overheating components
• Proactive maintenance in industrial settings
• Mechanical surveys across various equipment
• Troubleshooting by visualising hidden thermal issues
• Monitoring system performance in automation
What types of measurements can be taken with this device?
It measures temperatures ranging from -20 to +650°C, suitable for various applications.
How does the device enhance visibility during inspections?
It features a 640x480 pixel LCD display that provides increased brightness and improved clarity for real-time monitoring.
Is it possible to store data from inspections?
Yes, it supports image storage on a micro SD card for efficient documentation and retrieval.
Can the device be used in inclement weather conditions?
It has an IP54 rating, indicating resistance to dust and water splashes, making it suitable for various environments.
How can data be organised and shared after collecting it?
It allows uploading and organising images to the FLIR Ignite cloud for secure storage and easy sharing.
Software Options:
2441681 Thermal Studio Pro Perpetual
2441680 Thermal Studio Pro 1 year
2441684 Thermal Studio Standard Perpetual
2441682 Thermal Studio Standard 1 year
