FLIR T530 T500 WiFi, USB 2.0, Bluetooth Thermal Imaging Camera, 650 °C 320 x 240 Pixel Detector Resolution RSCAL
- RS Stock No.:
- 202-0682
- Mfr. Part No.:
- FLIR T530-42
- Brand:
- FLIR
Subtotal (1 unit)*
£9,502.50
(exc. VAT)
£11,403.00
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 11 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £9,502.50 |
*price indicative
- RS Stock No.:
- 202-0682
- Mfr. Part No.:
- FLIR T530-42
- Brand:
- FLIR
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | FLIR | |
| Maximum Temperature Measurement | 650°C | |
| Product Type | Thermal Imaging Camera | |
| Battery Type | Charged in camera or on separate Lithium-ion battery | |
| Detector Resolution | 320 x 240 Pixel | |
| Display Resolution | 640 x 480 pixel | |
| Interface Type | WiFi, USB 2.0, Bluetooth | |
| Horizontal Angle of View | 24° | |
| Thermal Sensitivity | 40mK | |
| Vertical Angle of View | 18° | |
| Focus Type | Automatic | |
| Power Source | Lithium-ion Battery | |
| Refresh Rate | 30Hz | |
| Battery Life | 4h | |
| Minimum Focus Distance | 150mm | |
| Weight | 1.3kg | |
| Standards/Approvals | No | |
| Series | T500 | |
| Diagonal Display Size | 4in | |
| IR/Visual Image Combination | Picture-in-Picture | |
| Emissivity | 0.01 to 1 | |
| Accuracy | ±2°C | |
| Image Storage | MicroSD | |
| Hazardous Area Certification | No | |
| Voice Recorder | Yes | |
| Model Number | T530 | |
| Calibrated | RSCAL | |
| Visual Camera | Yes | |
| Radiometric Video on Camera | Yes | |
| Auto Capture on Camera | Yes | |
| Image Enhancement | Yes | |
| Battery Level Indicator | Yes | |
| Spatial Resolution IFOV | 1.31mrad | |
| Select all | ||
|---|---|---|
Brand FLIR | ||
Maximum Temperature Measurement 650°C | ||
Product Type Thermal Imaging Camera | ||
Battery Type Charged in camera or on separate Lithium-ion battery | ||
Detector Resolution 320 x 240 Pixel | ||
Display Resolution 640 x 480 pixel | ||
Interface Type WiFi, USB 2.0, Bluetooth | ||
Horizontal Angle of View 24° | ||
Thermal Sensitivity 40mK | ||
Vertical Angle of View 18° | ||
Focus Type Automatic | ||
Power Source Lithium-ion Battery | ||
Refresh Rate 30Hz | ||
Battery Life 4h | ||
Minimum Focus Distance 150mm | ||
Weight 1.3kg | ||
Standards/Approvals No | ||
Series T500 | ||
Diagonal Display Size 4in | ||
IR/Visual Image Combination Picture-in-Picture | ||
Emissivity 0.01 to 1 | ||
Accuracy ±2°C | ||
Image Storage MicroSD | ||
Hazardous Area Certification No | ||
Voice Recorder Yes | ||
Model Number T530 | ||
Calibrated RSCAL | ||
Visual Camera Yes | ||
Radiometric Video on Camera Yes | ||
Auto Capture on Camera Yes | ||
Image Enhancement Yes | ||
Battery Level Indicator Yes | ||
Spatial Resolution IFOV 1.31mrad | ||

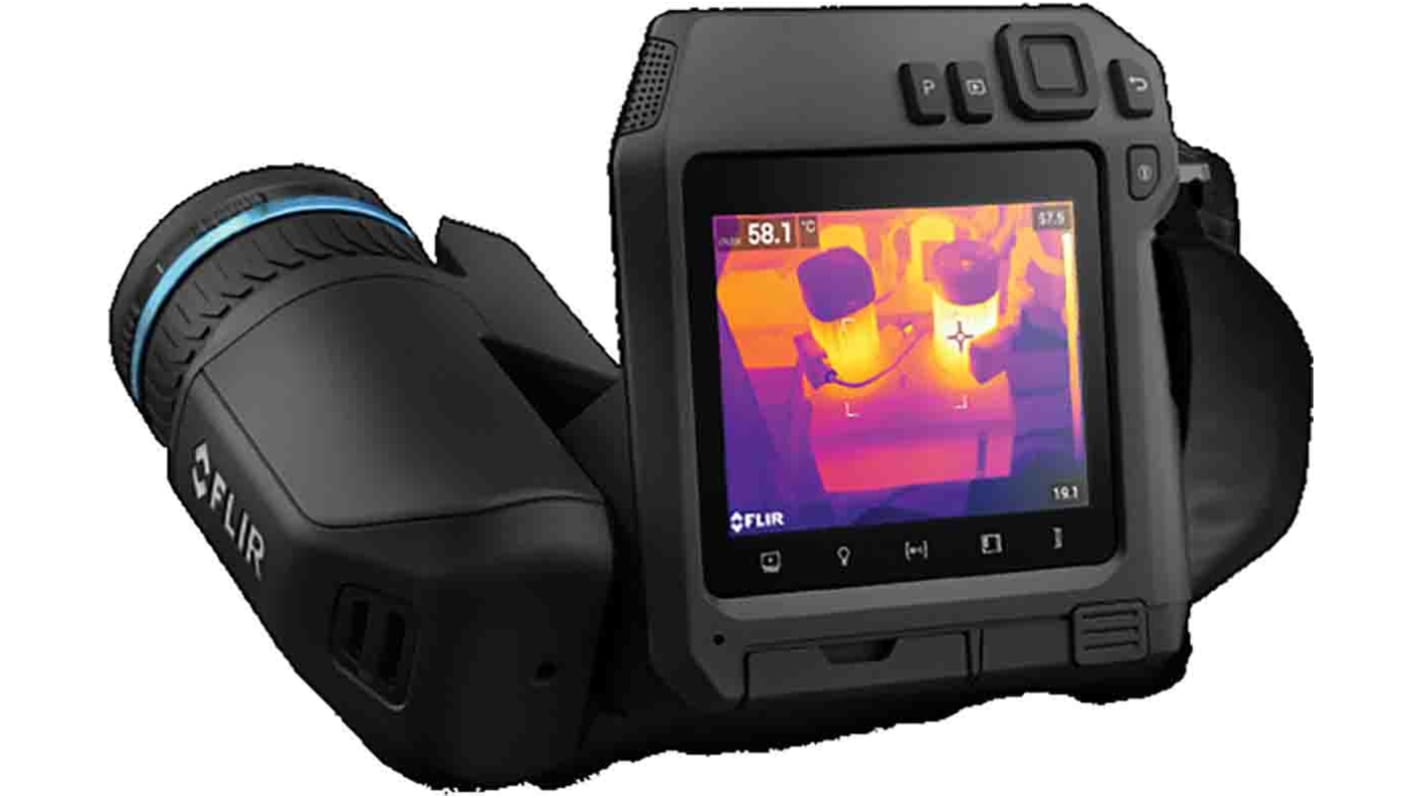

FLIR Thermal Imaging Camera, -20 to +650°C Temperature Measurement Range, 30Hz Refresh Rate - FLIR T530 42°
This high-sensitivity thermal camera is designed for accurate temperature measurements across various industrial applications. It employs advanced infrared technology to detect anomalies and evaluate equipment safety from safe distances. The device is ideal for technicians in electrical, mechanical, and automation fields, facilitating effective diagnostics and preventative maintenance.
Features & Benefits
• Automatic focus allows for quick calibration to ensure precise readings
• Dual field-of-view lens offers versatile scanning options
• High thermal sensitivity guarantees detailed image clarity
• Bluetooth connectivity enables easy data sharing
• Integrated reporting tools streamline documentation processes
• 180° rotating optical block improves accessibility during inspections
Applications
• Monitoring electrical components in industrial environments
• Assessing mechanical systems to avert failures
• Implementing predictive maintenance strategies across industries
• Conducting safety inspections of overhead structures
• Performing detailed thermal inspections during electrical troubleshooting
How does the automatic focus feature work?
The automatic focus utilises laser distance measurement for swift adjustments, ensuring accuracy in temperature readings.
What is the battery life during typical use?
The battery lasts approximately four hours under standard conditions, suitable for extended fieldwork.
Can it be connected to external devices?
Yes, it features Bluetooth and USB connections for easy integration with various tools and applications.
Is it suitable for outdoor use in varying weather conditions?
The camera operates effectively within a temperature range of -15 to 50°C, making it suitable for outdoor inspections in most climates.
How are images stored and accessed?
Images can be stored on a removable micro SD card and uploaded to cloud services for easy sharing and organisation.
Software Options:
2441681 Thermal Studio Pro Perpetual
2441680 Thermal Studio Pro 1 year
2441684 Thermal Studio Standard Perpetual
2441682 Thermal Studio Standard 1 year
