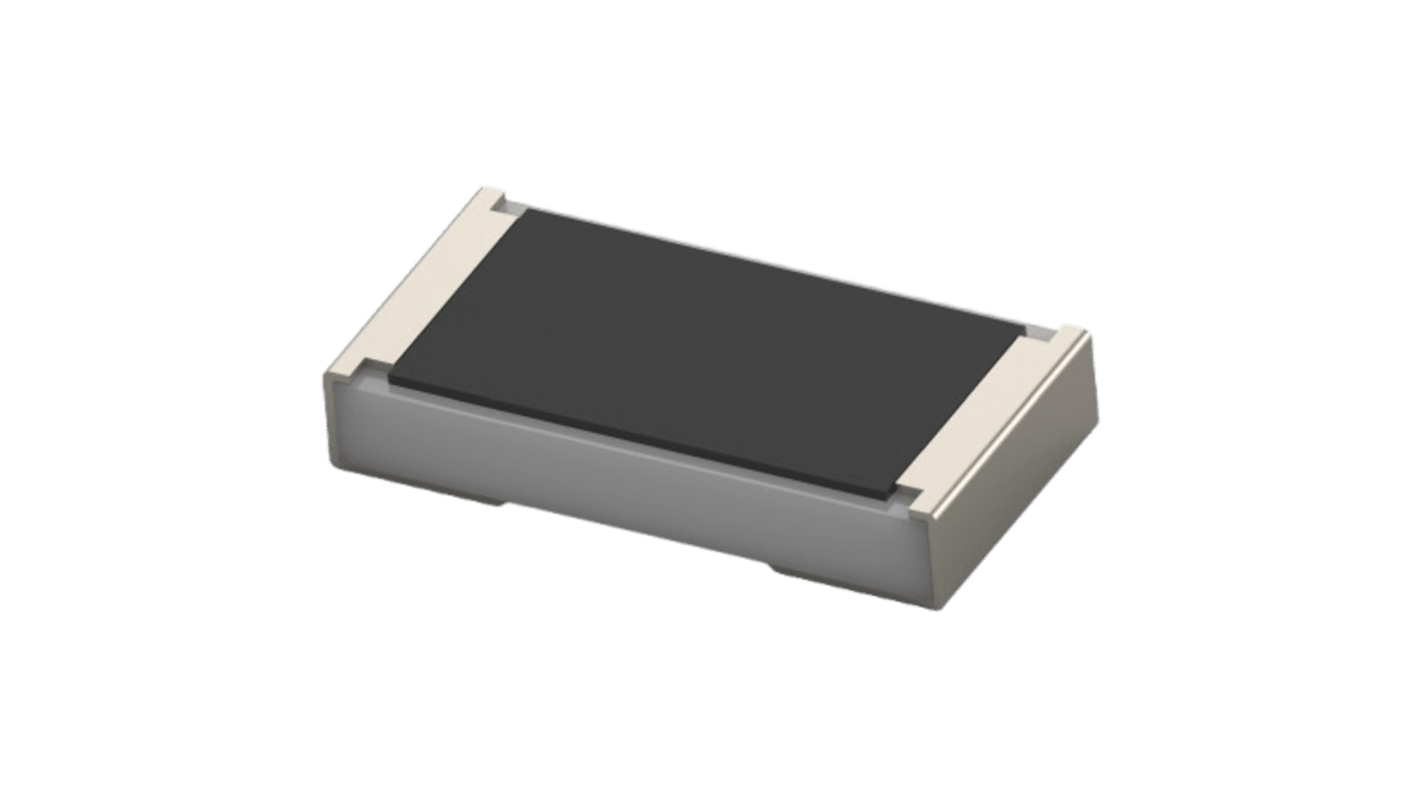

TE Connectivity CGS 3522 820 kΩ, 2512 Thick Film Surface Mount Resistor 1 % Surface 3 W - 2-2176232-0

View all Surface Mount Resistors

Subtotal (1 reel of 2000 units)*

£724.00

(exc. VAT)

£868.00

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 01 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Reel*
2000 +£0.362£724.00

*price indicative

RS Stock No.:
474-393
Distrelec Article No.:
304-60-342
Mfr. Part No.:
2-2176232-0
Brand:
TE Connectivity
Find similar products by selecting one or more attributes.
Select all

Brand

TE Connectivity

Product Type

Surface Mount Resistor

Resistance

820kΩ

Technology

Thick Film

Resistor Type

Power

Package/Case

2512

Tolerance

1 %

Packaging

Tape & Reel

Power Rating

3W

Mount Type

Surface

Temperature Coefficient

±100 ppm/°C

Automotive Standard

No

Series

CGS 3522

Width

3.2 mm

Standards/Approvals

2016 Restricted Materials Above Threshold, China RoHS 2 MIIT Order No 32, EU ELV 2000/53/EC, EU REACH (EC) No. 1907/2006, EU RoHS 2011/65/EU

Length

6.35mm

Height

1.1mm

RoHS Status: Exempt

COO (Country of Origin):
TH
The TE Connectivity Surface mount power resistor is designed for reliability in a range of applications. With a robust construction, it offers consistent performance with a thick film element, ensuring excellent thermal stability. The compact 2512 package size allows for efficient use of space on circuit boards, making it a prime choice for engineers. Its impressive three-watt power rating coupled with a tolerance of one per cent guarantees accurate resistance values, essential for high-performance circuits. The 820K ohm resistance value is ideal for precise applications, contributing to the overall efficiency and effectiveness of any electronic design. This resistor also features low halogen content, aligning with environmental standards and compliance regulations, making it an excellent option for eco-conscious projects.

Surface mount design optimises space on compact circuit boards

Thick film element enhances thermal stability for dependable operation

Complies with EU RoHS and REACH regulations for responsible manufacturing

Two-terminals ensure straightforward integration into various applications

Low halogen content supports environmentally friendly practices

Resistant to high temperatures with reflow solder capability up to 260°C

Effective for applications requiring tight tolerance and reliability
