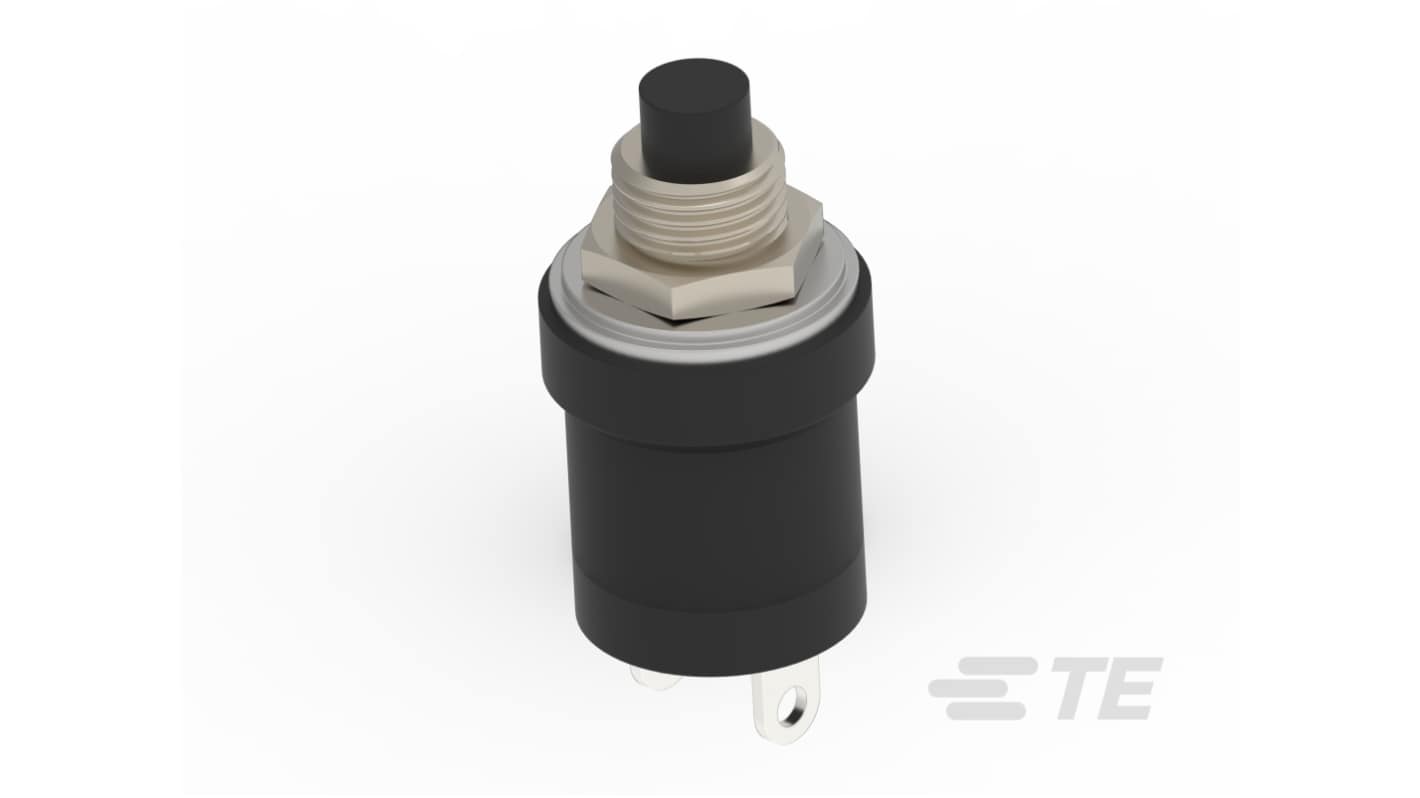

TE Connectivity Alcoswitch Series Push Button Switch, Momentary, SPST 125 V ac
- RS Stock No.:
- 473-220
- Distrelec Article No.:
- 304-52-655
- Mfr. Part No.:
- 1825516-1
- Brand:
- TE Connectivity
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 473-220
- Distrelec Article No.:
- 304-52-655
- Mfr. Part No.:
- 1825516-1
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Switch Operation | Momentary | |
| Actuator Colour | Black | |
| Product Type | Push Button Switch | |
| Illuminated | No | |
| Series | Alcoswitch | |
| Contact Configuration | SPST | |
| Terminal Type | Lug Ring | |
| Minimum Operating Temperature | -20°C | |
| Actuator Style | Round | |
| Contact AC Voltage | 125V ac | |
| Maximum Operating Temperature | 80°C | |
| Switch Configuration | SPST | |
| Length | 2.5mm | |
| Standards/Approvals | EU ELV Directive 2000/53/EC Compliant with Exemptions | |
| Width | 4mm | |
| Switch Contact Current | 3A | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Switch Operation Momentary | ||
Actuator Colour Black | ||
Product Type Push Button Switch | ||
Illuminated No | ||
Series Alcoswitch | ||
Contact Configuration SPST | ||
Terminal Type Lug Ring | ||
Minimum Operating Temperature -20°C | ||
Actuator Style Round | ||
Contact AC Voltage 125V ac | ||
Maximum Operating Temperature 80°C | ||
Switch Configuration SPST | ||
Length 2.5mm | ||
Standards/Approvals EU ELV Directive 2000/53/EC Compliant with Exemptions | ||
Width 4mm | ||
Switch Contact Current 3A | ||
- COO (Country of Origin):
- US
The TE Connectivity general purpose push button switch is designed for efficient operation in a variety of applications, ensuring reliability and safety during use. Featuring a single pole, single throw configuration, the switch is equipped with an extended actuator for ease of access and control. Built to withstand operating temperatures ranging from -20 to 80 °C, it is suitable for both indoor and outdoor environments. The robust construction includes a phenol resin case and thermoplastic actuator, offering durability and resistance against wear and tear. Whether you're integrating it into consumer electronics or industrial equipment, this switch guarantees smooth operation and longevity, making it an ideal solution for diverse electronic needs.
Designed to fit seamlessly into various electronic applications
Extended actuator provides easy operation for users
Built from high-quality materials ensuring long-lasting performance
Compact design optimises installation space
Non-illuminated option available for simpler applications
Environmentally compliant with multiple regulations
Offers reliable contact ratings for consistent performance
Supports efficient assembly with bulk packaging for convenience
