TE Connectivity Alcoswtich Series Push Button Switch, On-On, Bushing, DPDT, IP67, 20 V 250 V
- RS Stock No.:
- 468-292
- Distrelec Article No.:
- 304-52-807
- Mfr. Part No.:
- 2267072-3
- Brand:
- TE Connectivity
Subtotal (1 bag of 40 units)*
£173.10
(exc. VAT)
£207.72
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 23 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Bag(s) | Per Bag | Per unit* |
|---|---|---|
| 1 + | £173.10 | £4.328 |
*price indicative
- RS Stock No.:
- 468-292
- Distrelec Article No.:
- 304-52-807
- Mfr. Part No.:
- 2267072-3
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Actuator Colour | Black | |
| Switch Operation | On-On | |
| Product Type | Push Button Switch | |
| Illuminated | No | |
| Series | Alcoswtich | |
| Mount Type | Bushing | |
| Contact Configuration | DPDT | |
| Terminal Type | Through Hole-Solder | |
| IP Rating | IP67 | |
| Contact AC Voltage | 250V | |
| Actuator Style | Round | |
| Contact DC Voltage | 20V | |
| Switch Configuration | DPDT | |
| Standards/Approvals | China RoHS 2, EU REACH, EU RoHS Directive 2011/65/EU | |
| Length | 3.94mm | |
| Switch Contact Current | 0.4 A | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Actuator Colour Black | ||
Switch Operation On-On | ||
Product Type Push Button Switch | ||
Illuminated No | ||
Series Alcoswtich | ||
Mount Type Bushing | ||
Contact Configuration DPDT | ||
Terminal Type Through Hole-Solder | ||
IP Rating IP67 | ||
Contact AC Voltage 250V | ||
Actuator Style Round | ||
Contact DC Voltage 20V | ||
Switch Configuration DPDT | ||
Standards/Approvals China RoHS 2, EU REACH, EU RoHS Directive 2011/65/EU | ||
Length 3.94mm | ||
Switch Contact Current 0.4 A | ||
- COO (Country of Origin):
- TW

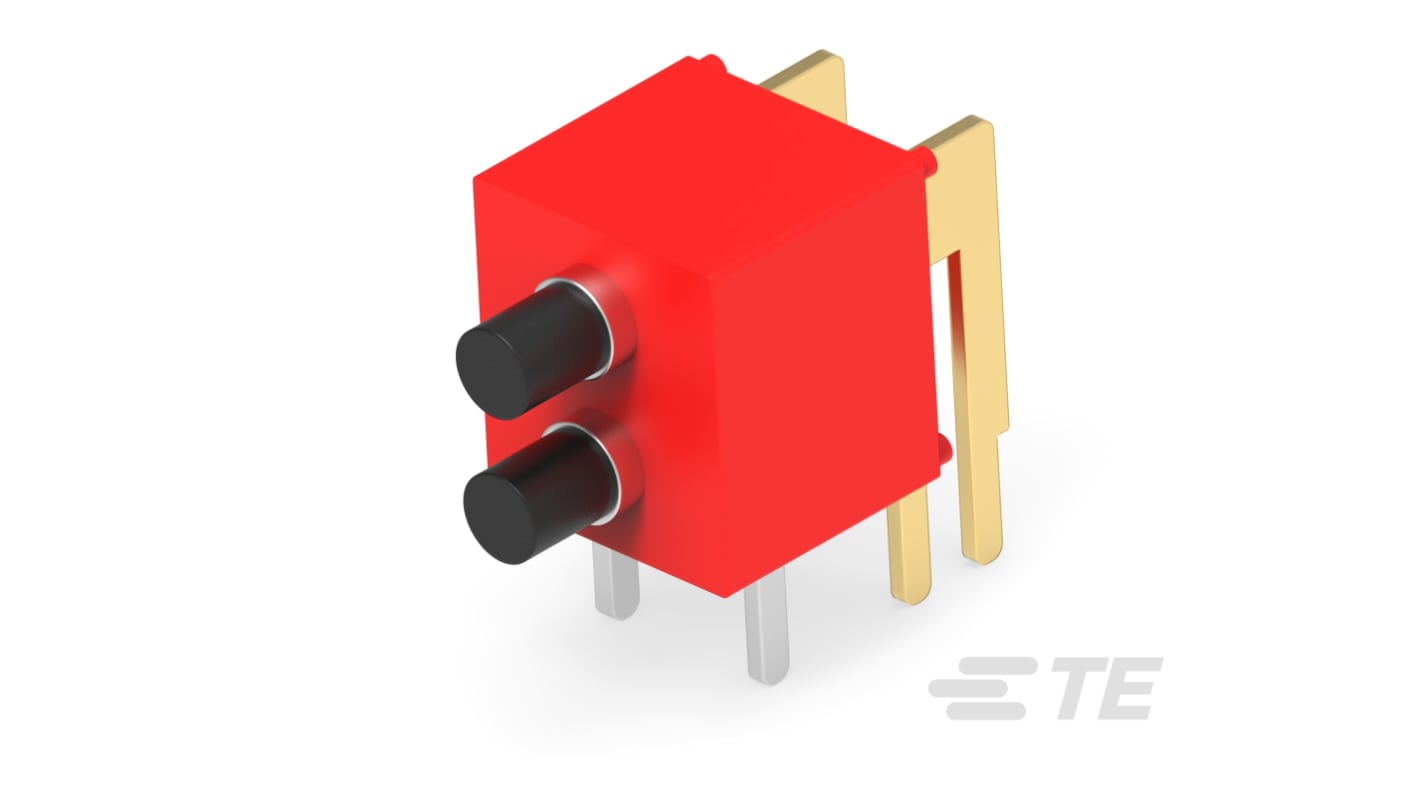

The TE Connectivity Push Button Switch from te connectivity is designed to seamlessly integrate into your applications, offering exceptional reliability and versatility. This component is characterized by its double pole-double throw configuration, making it ideal for a variety of switching needs. With dual actuators and an extended actuator profile, it provides a robust and user-friendly interface. Built with high-quality materials, including a thermoplastic polyester actuator and a Diallyl Phthalate (DAP) case, this switch ensures durability in demanding environments. The sophisticated design incorporates non-tactile feedback and a right-angle product orientation, optimizing both functionality and installation ease. Whether you are designing for consumer electronics or industrial applications, this switch meets diverse requirements while maintaining compliance with relevant standards.
Offers a dual actuator mechanism for enhanced user interaction
Utilizes gold-plated switch contacts for improved conductivity and reliability
Features a compact and unthreaded bushing style for ease of mounting
Designed for PCB through-hole solder termination method for secure attachment
Manufactured with low halogen material, promoting environmental friendliness
Provides a robust operating function ensuring dependable resistance against wear and tear
