TE Connectivity Surface Mount Power Relay, 12V dc Coil, 4A Switching Current, SPDT

View all Power Relays
Bulk discount available

Subtotal (1 unit)*

£4.90

(exc. VAT)

£5.88

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 229 unit(s) ready to ship
  • Plus 1,000 unit(s) shipping from 28 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 9£4.90
10 - 49£4.37
50 - 99£3.69
100 - 249£3.52
250 +£3.28

*price indicative

RS Stock No.:
124-4480
Mfr. Part No.:
1462042-9
Brand:
TE Connectivity
Find similar products by selecting one or more attributes.
Select all

Brand

TE Connectivity

Coil Voltage

12V dc

Contact Configuration

SPDT

Mounting Type

Surface Mount

Switching Current

4A

Number of Poles

1

Latching

No

Series

IM

Terminal Type

Surface Mount

Maximum Switching Voltage AC

250V

Maximum Switching Voltage DC

220V dc

Length

10mm

Coil Resistance

1029Ω

Coil Power

140mW

Standards Met

UL 508 File No. E 111441

Depth

6mm

Contact Material

Palladium-Ruthenium

Isolation Coil To Contact

1.8kVrms

Maximum Operating Temperature

+85°C

Height

5.7mm

Minimum Operating Temperature

-40°C

Life

100000000 (Mechanical) operations, 2500000 (Electrical) operations

Maximum Switching Power AC

62.5VA

Maximum Switching Power DC

60 W

Application

Access & Transmission Equipment, Consumer Electronics, Industrial Controls, Measurement & Test Equipment, Medical Equipment, Modems, Office & Business Equipment, Optical Network Terminals, Telecommunication

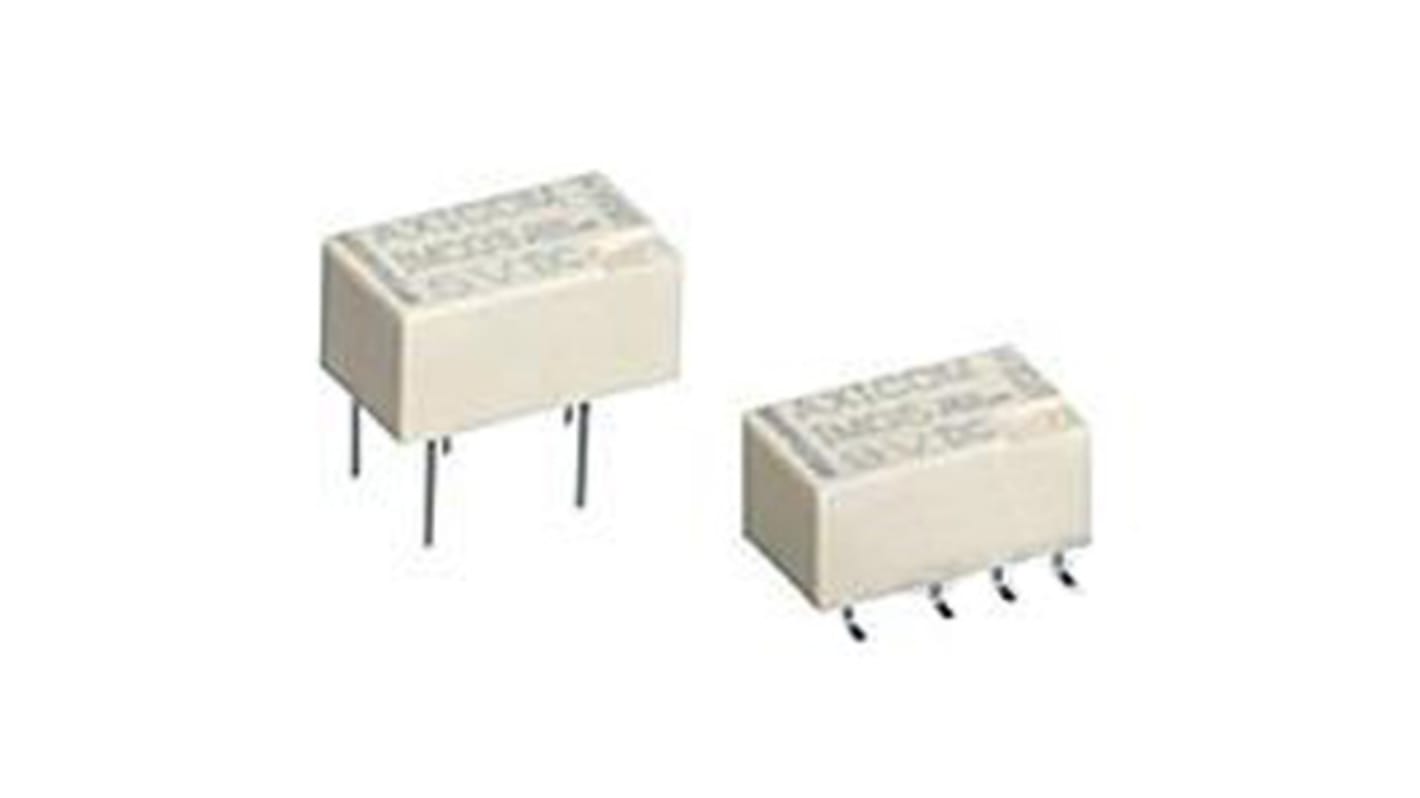

TE Connectivity PCB Mount Signal Relay - IM Series


IM series slimline PCB mount signal relays with a low profile of 5.65mm that occupy a minimum board space of 60mm². These slimline IM series PCB mount signal relays have a low coil power consumption of 140mW for standard coil, 100mW for bistable and 50mW for the ultra high sensitive versions, along with a high dielectric surge capability and 300g mechanical shock resistance.

Features and Benefits:


• Slimline and low profile - 10x6x5.65 mm
• Bifurcated contacts, gold plated
• Hermetically sealed (RT V), IP67
• High mechanical shock resistance up to 300G functional, 500G survival
• Insulation resistance at 500V dc >10⁹Ω
• High surge capability (1.2/50 μs and 10 / 700 μs) meets Telcordia GR 1089, FCC Part 68 and ITU-T K20,21,45.
• 1500V between open contacts and 2500V between coil and contacts

Applications:


• Telecommunication equipment
• Optical network terminals
• Office equipment
• Test and measurement equipment
• Medical equipment
• Automotive applications

Approvals

UL
