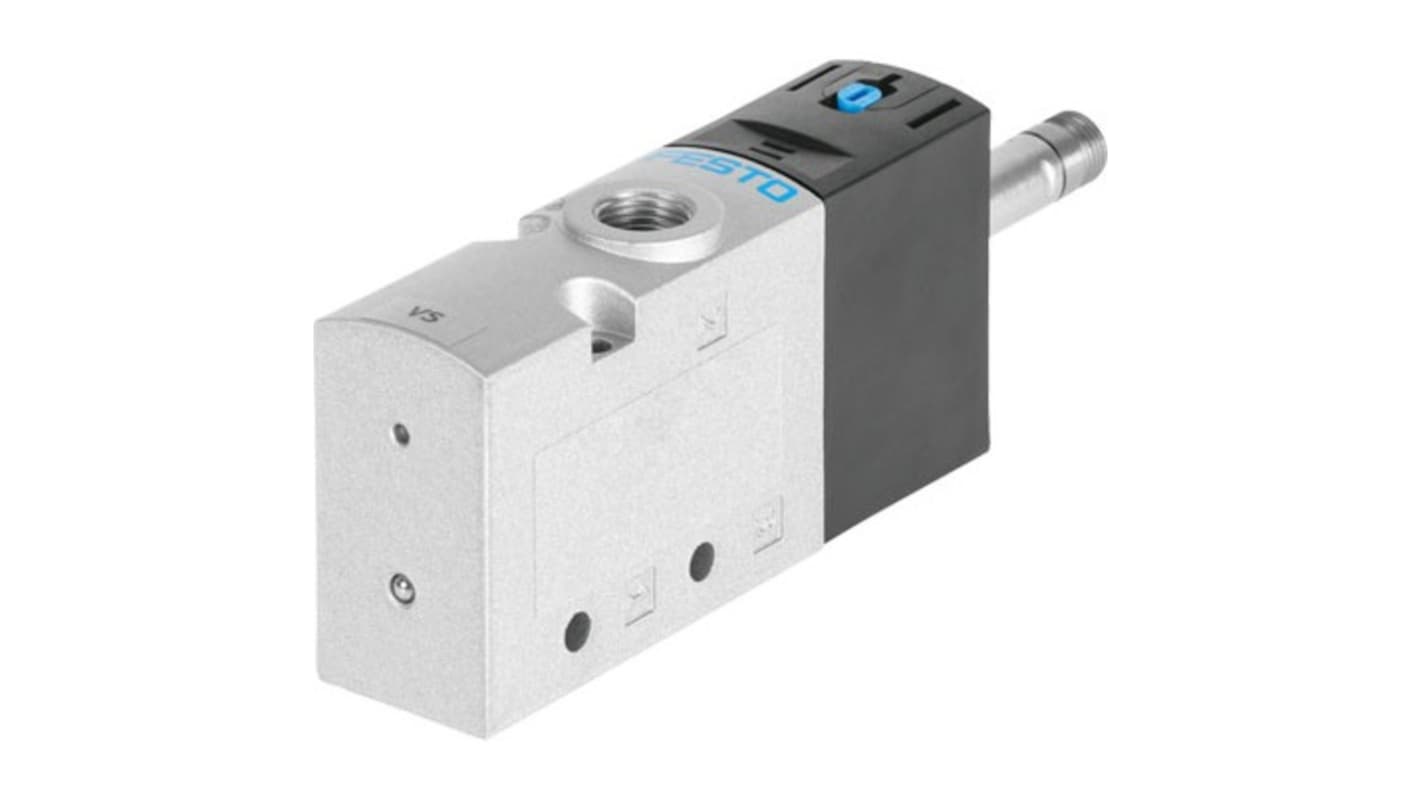

Festo 3/2 Open, Monostable Pneumatic Solenoid Valve - Electrical NPT 1/4 VUVS Series
- RS Stock No.:
- 651-999
- Mfr. Part No.:
- VUVS-L25-M32U-MD-N14-F8
- Brand:
- Festo
Subtotal (1 unit)*
£56.53
(exc. VAT)
£67.84
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 17 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £56.53 |
*price indicative
- RS Stock No.:
- 651-999
- Mfr. Part No.:
- VUVS-L25-M32U-MD-N14-F8
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Festo | |
Function | 3/2 Open, Monostable | |
Connection Port Thread | NPT 1/4 | |
Actuation Type | Electrical | |
Manufacturer Series | VUVS | |
Select all | ||
---|---|---|
Brand Festo | ||
Function 3/2 Open, Monostable | ||
Connection Port Thread NPT 1/4 | ||
Actuation Type Electrical | ||
Manufacturer Series VUVS | ||
- COO (Country of Origin):
- CN
The Festo solenoid valve is designed to provide precise control in pneumatic systems, offering an efficient solution for various applications. With a compact size of 26.5 mm, it combines high flow rates of up to 1000 l/min with reliable electric actuation, ensuring optimal performance under varying operating pressures between 0.25 MPa and 1 MPa. Its robust piston gate valve design features a mechanical spring reset, enhancing reliability, while the soft sealing principle ensures minimal leakage. This valve, suited for both lubricated and unlubricated operation, is built to withstand the rigors of industrial use, boasting excellent vibration and shock resistance. With the flexibility of optional mounting positions, this solenoid valve is engineered for versatility and caters to a wide range of applications within automated systems.
Compact dimensions allow for space-saving installation options
Pilot actuated with internal air supply for streamlined operation
Quick switching times of 39 ms off and 11 ms on enhance responsiveness
Lubricated operation capability extends valve lifespan and performance
Pilot actuated with internal air supply for streamlined operation
Quick switching times of 39 ms off and 11 ms on enhance responsiveness
Lubricated operation capability extends valve lifespan and performance
