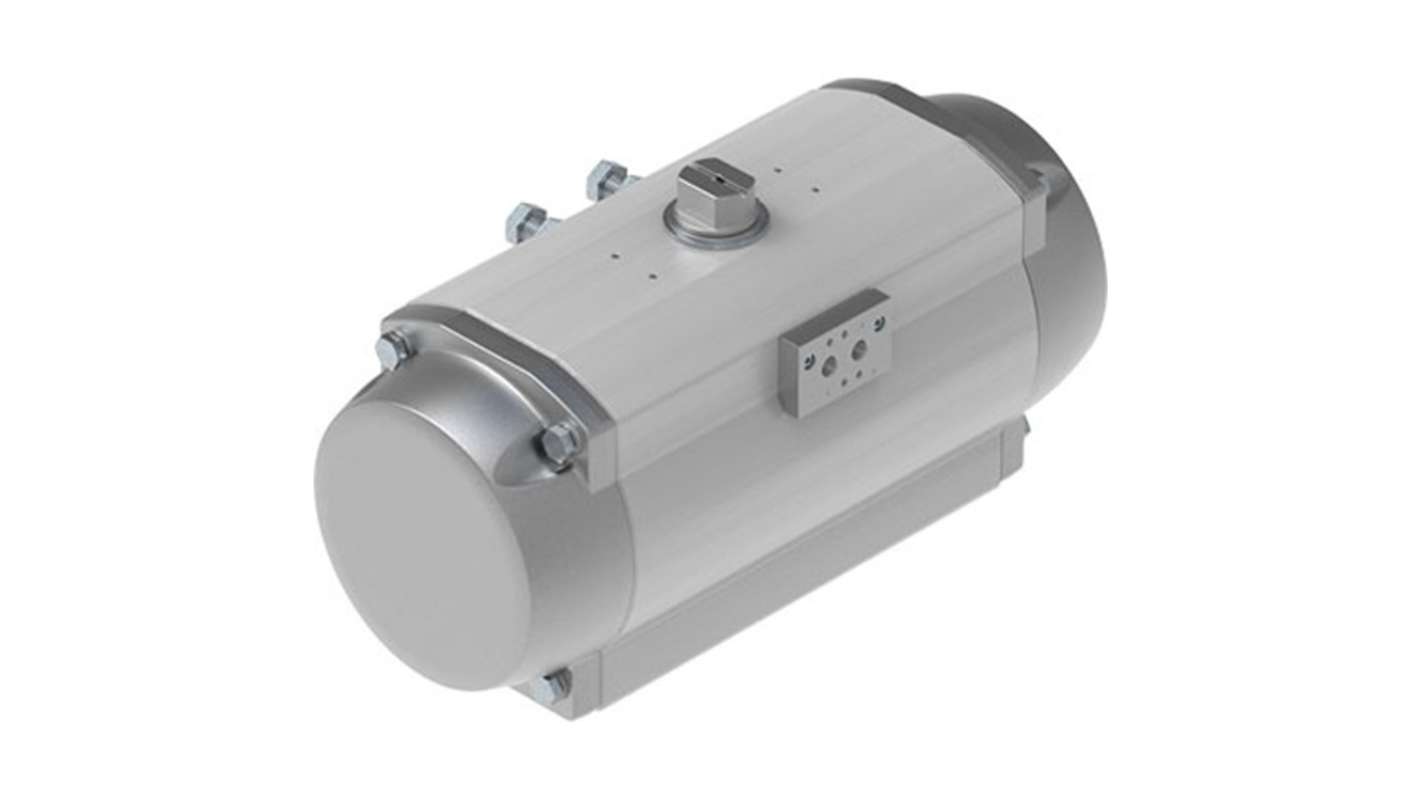

Festo DFPD Series 8 bar Single Acting Action Pneumatic Rotary Actuator, 900 mm Bore, 90 °

RS Stock No.:: 343-624
Mfr. Part No.:: DFPD-900-RP-90-RS60-F14-R3-EP
Brand:: Festo

Festo DFPD Series 8 bar Single Acting Action Pneumatic Rotary Actuator, 900 mm Bore, 90 °

Subtotal (1 unit)*

£1,447.81

(exc. VAT)

£1,737.37

(inc. VAT)

FREE delivery for orders over £60.00

Stocked by manufacturer

Ready to ship from 29 May 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£1,447.81

*price indicative

Explore our Valves Range

When paired correctly, the actuator and valve work together to deliver smooth rotary motion for tasks such as positioning, clamping, or indexing. Choosing the right valve can significantly enhance the performance and responsiveness of your pneumatic system.

Shop Now

RS Stock No.:: 343-624
Mfr. Part No.:: DFPD-900-RP-90-RS60-F14-R3-EP
Brand:: Festo

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Festo
	Product Type	Pneumatic Rotary Actuator
	Action Type	Single Acting
	Connection Thread Standard	ISO 5211, G
	Bore Size	900mm
	Series	DFPD
	Maximum Operating Pressure	8 bar
	Angle of Rotation	90°
	Minimum Operating Temperature	-20°C
	Maximum Torque Rating	593.5Nm
	Maximum Operating Temperature	80°C
	Standards/Approvals	ISO 8573-1:2010 (7:4:4), IEC 61508 (SIL), EPL Db (GB), VDI/VDE 3845 size AA 3, ATEX category gas II 2G, DNV TAP00001CE, ISO 13849, EPL Gb (GB), ISO 5211, Zone 21 (UKEX), VDMA24364-B1/B2-L, RoHS, Ex h IIC T4 Gb X, Zone 2 (ATEX), Zone 1 (UKEX), Zone 1 (ATEX), German Technical Control Board (TÜV) Rheinland 968/V 1106.01/2023, VDMA 66413, Zone 22 (ATEX), Zone 21 (ATEX), VDI/VDE 3845 (NAMUR), Ex h IIIC T105°C Db X, ATEX category dust II 2D
	Weight	30395g
	Port Thread Size	1/4 in

	Select all
	Brand Festo
	Product Type Pneumatic Rotary Actuator
	Action Type Single Acting
	Connection Thread Standard ISO 5211, G
	Bore Size 900mm
	Series DFPD
	Maximum Operating Pressure 8 bar
	Angle of Rotation 90°
	Minimum Operating Temperature -20°C
	Maximum Torque Rating 593.5Nm
	Maximum Operating Temperature 80°C
	Standards/Approvals ISO 8573-1:2010 (7:4:4), IEC 61508 (SIL), EPL Db (GB), VDI/VDE 3845 size AA 3, ATEX category gas II 2G, DNV TAP00001CE, ISO 13849, EPL Gb (GB), ISO 5211, Zone 21 (UKEX), VDMA24364-B1/B2-L, RoHS, Ex h IIC T4 Gb X, Zone 2 (ATEX), Zone 1 (UKEX), Zone 1 (ATEX), German Technical Control Board (TÜV) Rheinland 968/V 1106.01/2023, VDMA 66413, Zone 22 (ATEX), Zone 21 (ATEX), VDI/VDE 3845 (NAMUR), Ex h IIIC T105°C Db X, ATEX category dust II 2D
	Weight 30395g
	Port Thread Size 1/4 in

Datasheet - DFPD-900-RP-90-RS60-F14-R3-EP

The Festo Semi-rotary drive is engineered for exceptional performance and flexibility in a wide range of industrial applications. Featuring a robust rack and pinion design, it offers precise control with a swivel angle of 90 degrees. The actuator is optimally sized for various valve fittings with its adjustable end positions allowing for seamless integration. Designed with safety as a priority, it meets stringent compliance standards, including ISO and ATEX certification, ensuring reliability even under demanding conditions. Its construction is resilient, crafted from high-quality materials for longevity while maintaining a lightweight profile. This drive is perfect for both low and high demand modes, catering to diverse operational environments.

Engineered for both high and low demand safety functions, ensuring operational reliability

Compact design optimises space without compromising on power

Cost-effective solution with low maintenance requirements

High corrosion resistance extends lifespan across various environments
