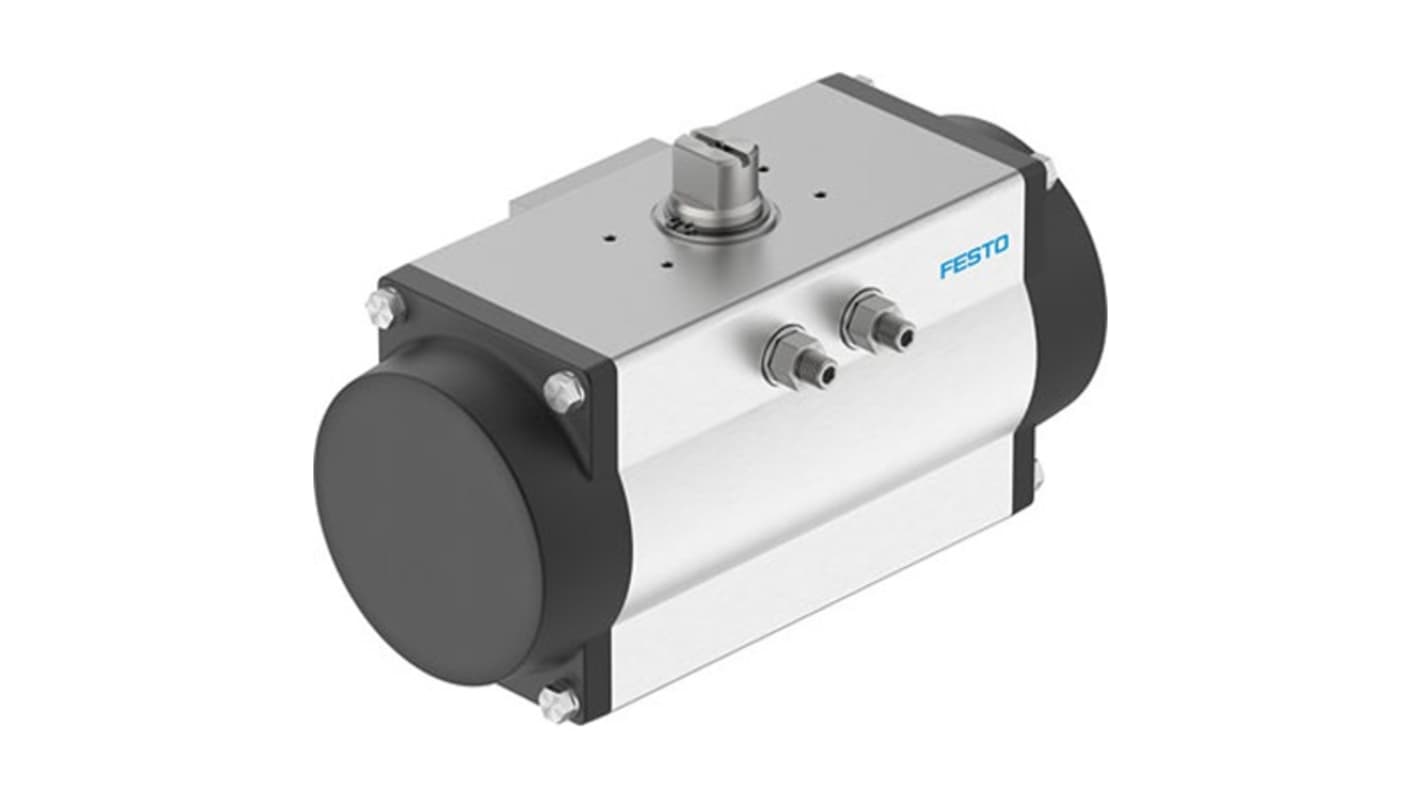

Festo DFPD Series 8 bar Single Acting Action Pneumatic Rotary Actuator, 240 mm Bore, 90 °

RS Stock No.:: 342-346
Mfr. Part No.:: DFPD-240-RP-90-RS60-F10-R3-C
Brand:: Festo

Festo DFPD Series 8 bar Single Acting Action Pneumatic Rotary Actuator, 240 mm Bore, 90 °

Subtotal (1 unit)*

£540.81

(exc. VAT)

£648.97

(inc. VAT)

FREE delivery for orders over £60.00

Stocked by manufacturer

Ready to ship from 03 June 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£540.81

*price indicative

RS Stock No.:: 342-346
Mfr. Part No.:: DFPD-240-RP-90-RS60-F10-R3-C
Brand:: Festo

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Festo
	Product Type	Pneumatic Rotary Actuator
	Action Type	Single Acting
	Shaft Type	T22
	Bore Size	240mm
	Connection Thread Standard	G
	Series	DFPD
	Maximum Operating Pressure	8 bar
	Sub Type	Actuator
	Angle of Rotation	90°
	Maximum Torque Rating	171.6Nm
	Minimum Operating Temperature	-20°C
	Maximum Operating Temperature	80°C
	Standards/Approvals	Zone 2 (ATEX), VDI/VDE 3845 size AA 3, Ex h IIIC T105°C Db X, VDMA24364-B1/B2-L, VDMA 66413, ISO 5211, German Technical Control Board (TÜV) Rheinland 968/V 1106.01/2023, VDI/VDE 3845 (NAMUR), ATEX category gas II 2G, Ex h IIC T4 Gb X, EPL Gb (GB), DNV TAP00001CE, Zone 21 (UKEX), Zone 1 (UKEX), RoHS, ISO 13849, Zone 22 (ATEX), Zone 21 (ATEX), ATEX category dust II 2D, IEC 61508 (SIL), Zone 1 (ATEX), EPL Db (GB), ISO 8573-1:2010 (7:4:4)
	Weight	10053g
	Port Thread Size	1/4 in

	Select all
	Brand Festo
	Product Type Pneumatic Rotary Actuator
	Action Type Single Acting
	Shaft Type T22
	Bore Size 240mm
	Connection Thread Standard G
	Series DFPD
	Maximum Operating Pressure 8 bar
	Sub Type Actuator
	Angle of Rotation 90°
	Maximum Torque Rating 171.6Nm
	Minimum Operating Temperature -20°C
	Maximum Operating Temperature 80°C
	Standards/Approvals Zone 2 (ATEX), VDI/VDE 3845 size AA 3, Ex h IIIC T105°C Db X, VDMA24364-B1/B2-L, VDMA 66413, ISO 5211, German Technical Control Board (TÜV) Rheinland 968/V 1106.01/2023, VDI/VDE 3845 (NAMUR), ATEX category gas II 2G, Ex h IIC T4 Gb X, EPL Gb (GB), DNV TAP00001CE, Zone 21 (UKEX), Zone 1 (UKEX), RoHS, ISO 13849, Zone 22 (ATEX), Zone 21 (ATEX), ATEX category dust II 2D, IEC 61508 (SIL), Zone 1 (ATEX), EPL Db (GB), ISO 8573-1:2010 (7:4:4)
	Weight 10053g
	Port Thread Size 1/4 in

COO (Country of Origin):: IT

Festo DFPD Series Pneumatic Rotary Actuator, 240mm Bore, 90° Rotary Angle - DFPD-240-RP-90-RS60-F10-R3-C, Numeric Part Number: 8102844

This pneumatic rotary actuator is expertly designed for precise control in automation applications. Built within a standard bore of 240 and a rotary angle of 90 degrees, this single-action actuator combines efficiency and reliability. With a robust construction, it operates effectively under a maximum pressure of 8 bar, ensuring superior performance across various industrial applications.

Features & Benefits

• F10 flange hole pattern allows easy integration with valves
• Adjustable end positions enhance operational flexibility
• Gear rack and pinion structure provides reliable motion
• High torque output ensures effective force transmission
• Conforms to VDI/VDE standards for positioner compatibility
• RoHS-compliant materials guarantee environmental safety

Applications

• Utilised in industrial processes requiring 90-degree valve actuation
• Ideal for installations demanding precise control and safety functions
• Used with position sensors for enhanced automation feedback
• Employable in systems requiring Compact single-action actuation

What is the maximum operating pressure for this actuator?

The actuator can operate effectively at a maximum pressure of 8 bar, making it suitable for a variety of demanding applications.

How does the actuator ensure safety during operation?

It features a safety function that defaults to a defined position when compressed Air is turned off, relying on spring force for secure positioning.

Can this actuator handle different mounting positions?

Yes, it is designed for flexibility and can be mounted in any position, accommodating various installation requirements and applications.

What type of compressed Air is suitable for this actuator?

The actuator is compatible with compressed Air that adheres to ISO 8573-1:2010 standards, ensuring optimal performance during operation.

What is the torque rating at the nominal operating pressure?

At the nominal operating pressure of 0.6 MPa, the actuator delivers a torque of 171.6 Nm at a swivel angle of 0 degrees, which decreases to 89.5 Nm at 90 degrees.
